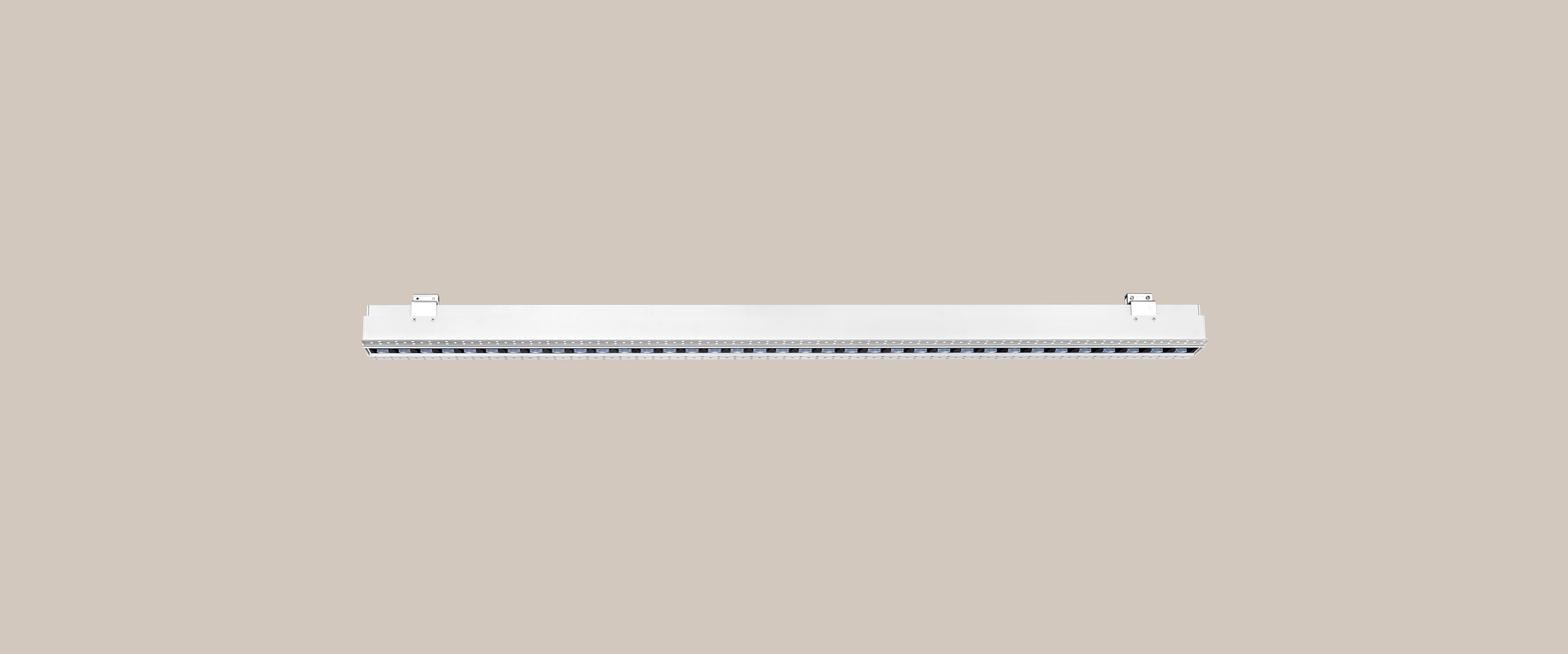

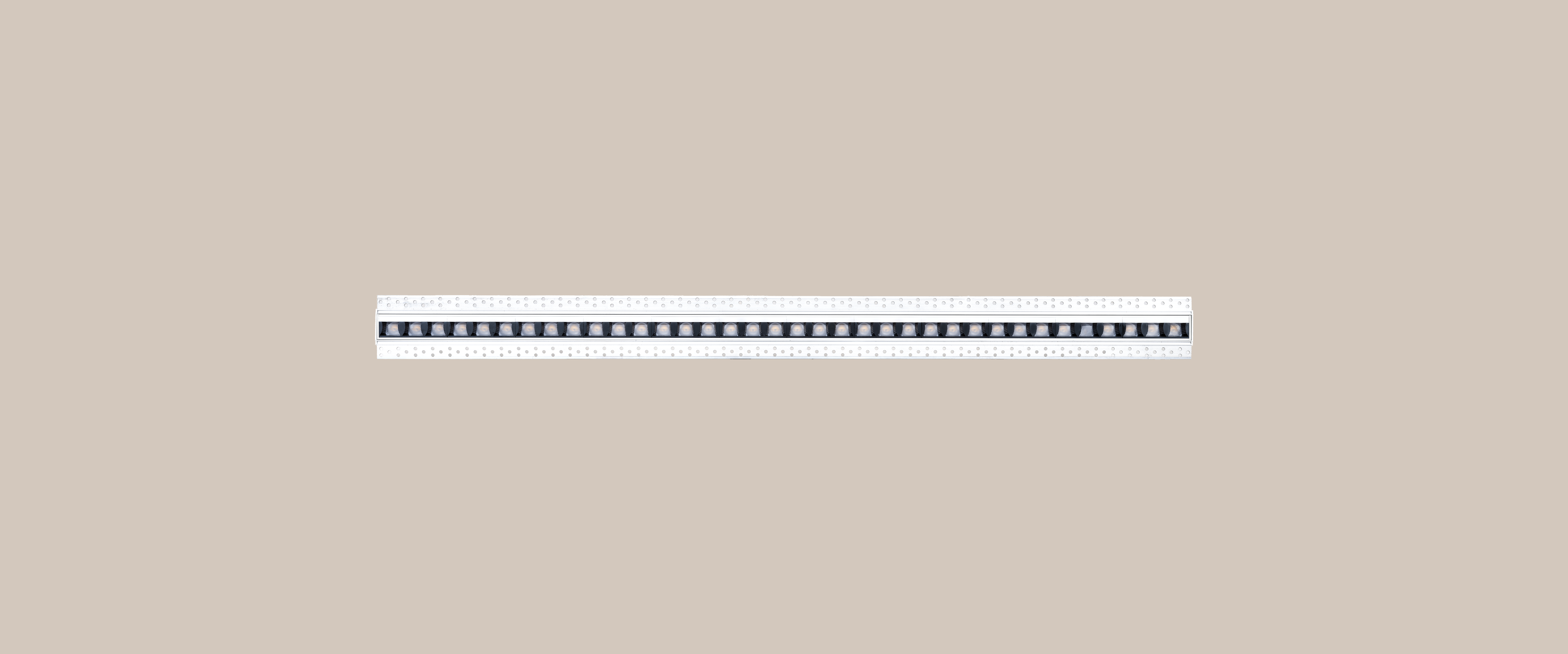

MIZAR 30

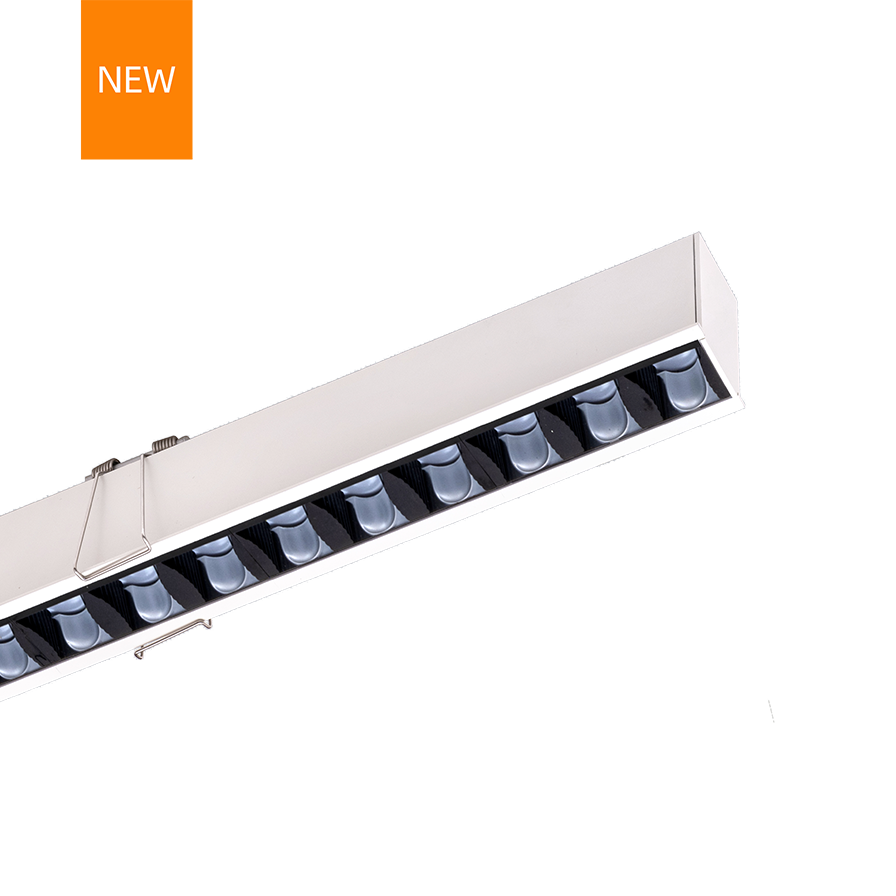

Recessed Trimless Linear Wall Washer Light
MIZAR 30
MIZAR 30
Lighting Effects
- Products Specification:
- Type:Recessed Trimless Linear Wall Washer Light
- Cut-Out:45x176mm/343mm/510mm/1010mm
- Power:6W 12W 24W 18W 36W 75W
- Beam Angle:18x40D 23X36D
- Weight:0.45kg 1kg 1.1kg 1.9kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:painting+plating

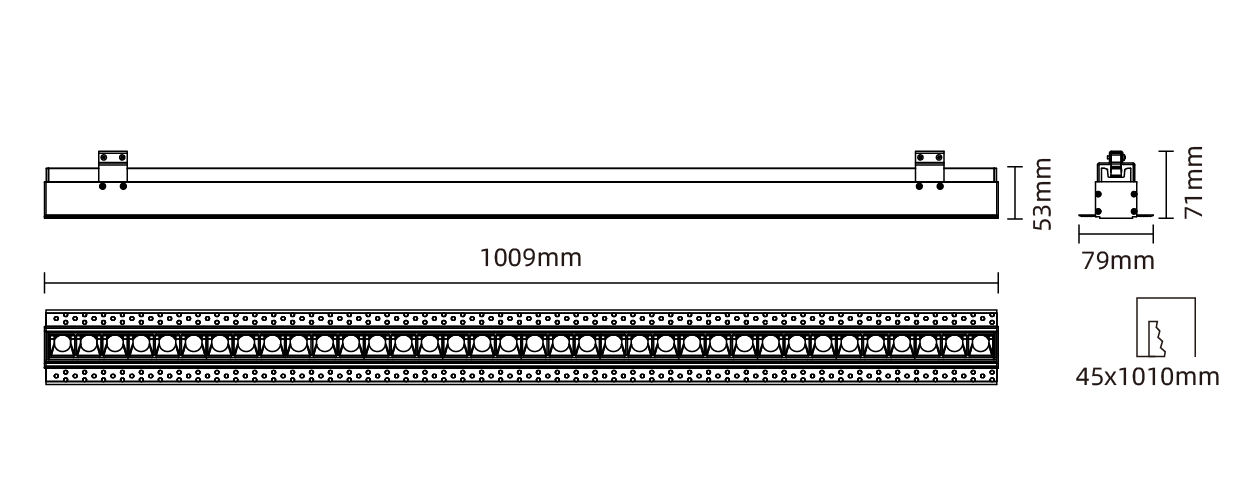

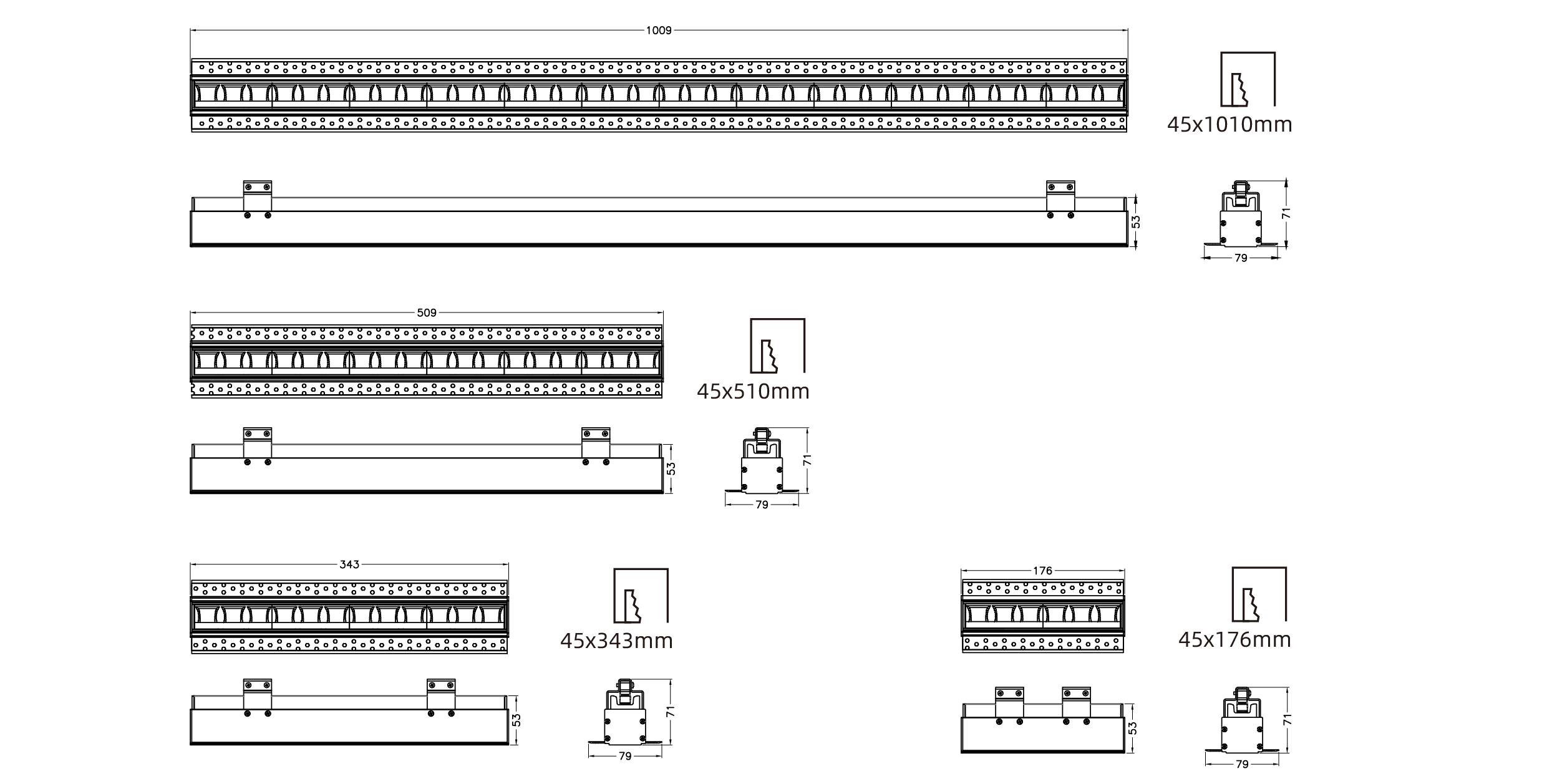

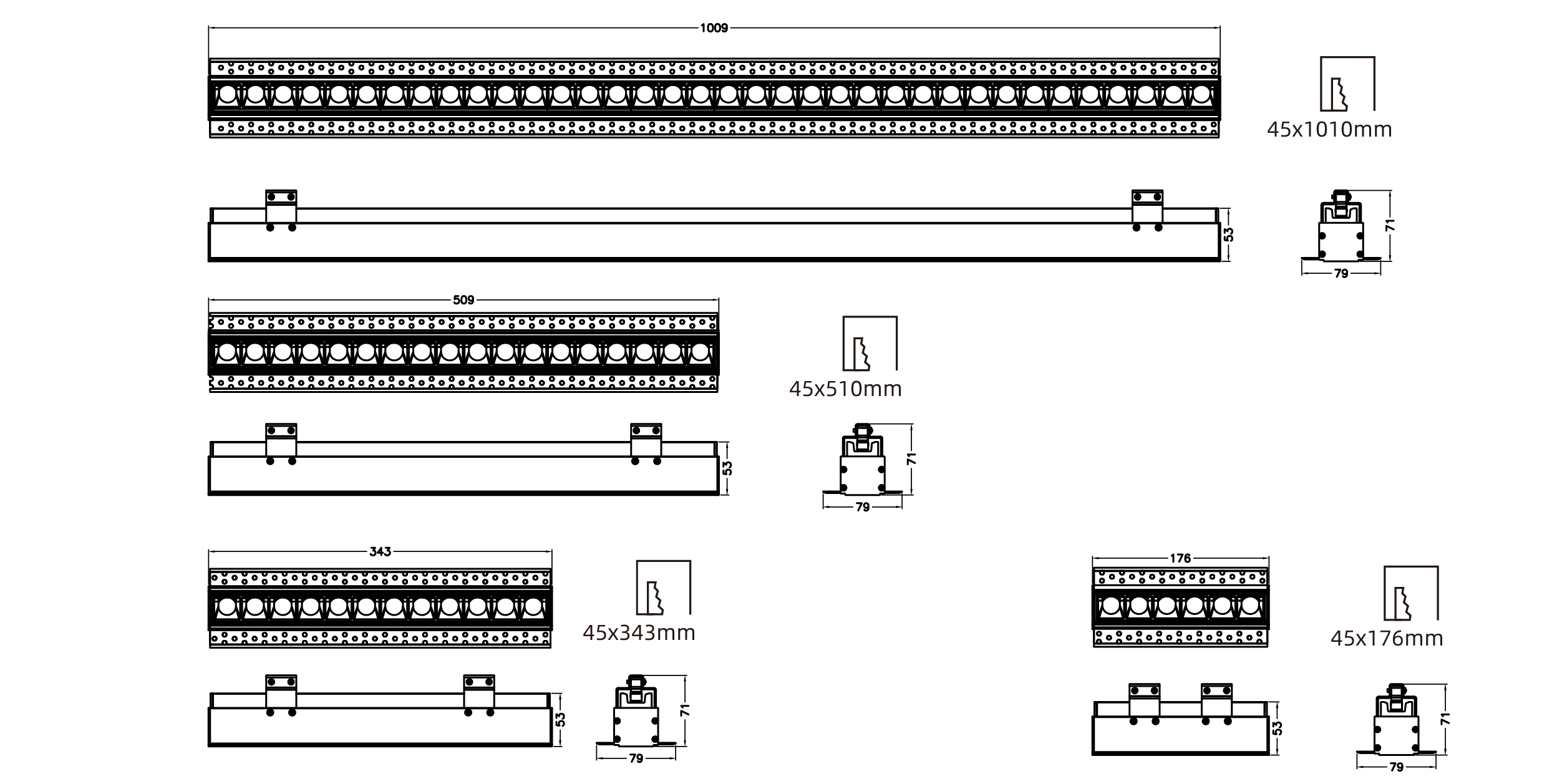

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 6W/176mm
- 12W/343mm
- 12W/176mm
- 18W/510mm
- 24W/343mm
- 36W/1010mm
- 36W/510mm
- 75W/1010mm
- Beam Angle
- 18x40°
- 23x36°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- White
- Black
- Grey
- Reflector
- N/A
- IP Rating
- 20-IP20
- 54-IP54
- Accessory
- Honeycomb louver
- Linear lens
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
LR00208-1010-75A19027
LR00208-1010-75A19030
LR00208-1010-75A19040
LR00208-1010-75A29027
LR00208-1010-75A29030
LR00208-1010-75A29040
LR00208-1010-36A19027
LR00208-1010-36A19030
LR00208-1010-36A19040
LR00208-1010-36A29027
LR00208-1010-36A29030
LR00208-1010-36A29040
LR00208-510-36A19027
LR00208-510-36A19030
LR00208-510-36A19040
LR00208-510-36A29027
LR00208-510-36A29030
LR00208-510-36A29040
LR00208-510-18A19027
LR00208-510-18A19030
LR00208-510-18A19040
LR00208-510-18A29027
LR00208-510-18A29030
LR00208-510-18A29040
LR00208-343-24A19027
LR00208-343-24A19030
LR00208-343-24A19040
LR00208-343-24A29027
LR00208-343-24A29030
LR00208-343-24A29040
LR00208-343-12A19027
LR00208-343-12A19030
LR00208-343-12A19040
LR00208-343-12A29027
LR00208-343-12A29030
LR00208-343-12A29040
LR00208-176-12A19027
LR00208-176-12A19030
LR00208-176-12A19040
LR00208-176-12A29027
LR00208-176-12A29030
LR00208-176-12A29040
LR00208-176-06A19027
LR00208-176-06A19030
LR00208-176-06A19040
LR00208-176-06A29027
LR00208-176-06A29030
LR00208-176-06A29040
- Luminous Flux (LM)
3958LM
4166LM
4375LM
3950LM
4157LM
4365LM
2538LM
2671LM
2805LM
2477LM
2608LM
2738LM
1955LM
2058LM
2161LM
1886LM
1986LM
2085LM
1269LM
1336LM
1403LM
1229LM
1294LM
1359LM
1277LM
1344LM
1411LM
1241LM
1306LM
1371LM
858LM
903LM
948LM
838LM
882LM
926LM
631LM
665LM
698LM
614LM
646LM
679LM
411LM
433LM
455LM
400LM
421LM
442LM
- Power (W)
75W/1010mm
75W/1010mm
75W/1010mm
75W/1010mm
75W/1010mm
75W/1010mm
36W/1010mm
36W/1010mm
36W/1010mm
36W/1010mm
36W/1010mm
36W/1010mm
36W/510mm
36W/510mm
36W/510mm
36W/510mm
36W/510mm
36W/510mm
18W/510mm
18W/510mm
18W/510mm
18W/510mm
18W/510mm
18W/510mm
24W/343mm
24W/343mm
24W/343mm
24W/343mm
24W/343mm
24W/343mm
12W/343mm
12W/343mm
12W/343mm
12W/343mm
12W/343mm
12W/343mm
12W/176mm
12W/176mm
12W/176mm
12W/176mm
12W/176mm
12W/176mm
6W/176mm
6W/176mm
6W/176mm
6W/176mm
6W/176mm
6W/176mm
- Beam Angle
18x40°
18x40°
18x40°
23x36°
23x36°
23x36°
18x40°
18x40°
18x40°
23x36°
23x36°
23x36°
18x40°
18x40°
18x40°
23x36°
23x36°
23x36°
18x40°
18x40°
18x40°
23x36°
23x36°
23x36°
18x40°
18x40°
18x40°
23x36°
23x36°
23x36°
18x40°
18x40°
18x40°
23x36°
23x36°
23x36°
18x40°
18x40°
18x40°
23x36°
23x36°
23x36°
18x40°
18x40°
18x40°
23x36°
23x36°
23x36°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
