VIRTUE 40

Recessed Trimless Adjustable Downlight

VIRTUE 40

Lighting Effects

Products Specification:
Type:Recessed Trimless Adjustable Downlight
Cut-Out:ø 40 mm
Beam Angle:15° 26° 38° 45°
Power:5W 6.5W
CCT:2700K 3000K 4000K
Weight:0.072KG
Heat-Sink:Aluminum
Surface-Treatment:painting

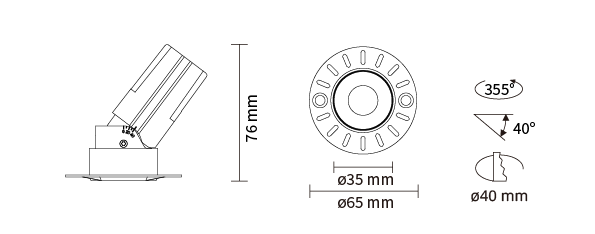

Line Drawing:
General Features:


Accessories :
Reflector Color:

Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 5W
  • 6.5W
Beam Angle
  • Beam Angle
  • 15°
  • 26°
  • 38°
  • 45°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 2700K
  • 3000K
  • 4000K
Dimming type
  • Dimming type
  • 1-Non Dim
  • 2-Phase dimming
  • 3-0-10V dimming
  • 4-DALI dimming
Finish
  • Finish
  • White
  • Black
Reflector
  • Reflector
  • Mirror
  • White
  • Black
  • Dark gold
IP Rating
  • IP Rating
  • 20-IP20
Accessory
  • Accessory
  • Linear lens
  • Honeycomb louver
  • Soft lens
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No

DR01816-05159027

DR01816-05159030

DR01816-05159040

DR01816-05269027

DR01816-05269030

DR01816-05269040

DR01816-05389027

DR01816-05389030

DR01816-05389040

DR01816-05459027

DR01816-05459030

DR01816-05459040

DR01816-6.5159027

DR01816-6.5159030

DR01816-6.5159040

DR01816-6.5269027

DR01816-6.5269030

DR01816-6.5269040

DR01816-6.5389027

DR01816-6.5389030

DR01816-6.5389040

DR01816-6.5459027

DR01816-6.5459030

DR01816-6.5459040

Luminous Flux (LM)

151LM

159LM

167LM

253LM

267LM

301LM

252LM

266LM

293LM

278LM

292LM

302LM

186LM

196LM

206LM

308LM

324LM

357LM

305LM

322LM

362LM

346LM

364LM

383LM

Power (W)

5W

5W

5W

5W

5W

5W

5W

5W

5W

5W

5W

5W

6.5W

6.5W

6.5W

6.5W

6.5W

6.5W

6.5W

6.5W

6.5W

6.5W

6.5W

6.5W

Beam Angle

15°

15°

15°

26°

26°

26°

38°

38°

38°

45°

45°

45°

15°

15°

15°

26°

26°

26°

38°

38°

38°

45°

45°

45°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

Specification
IES
DWG
manual
Favorite

Application
