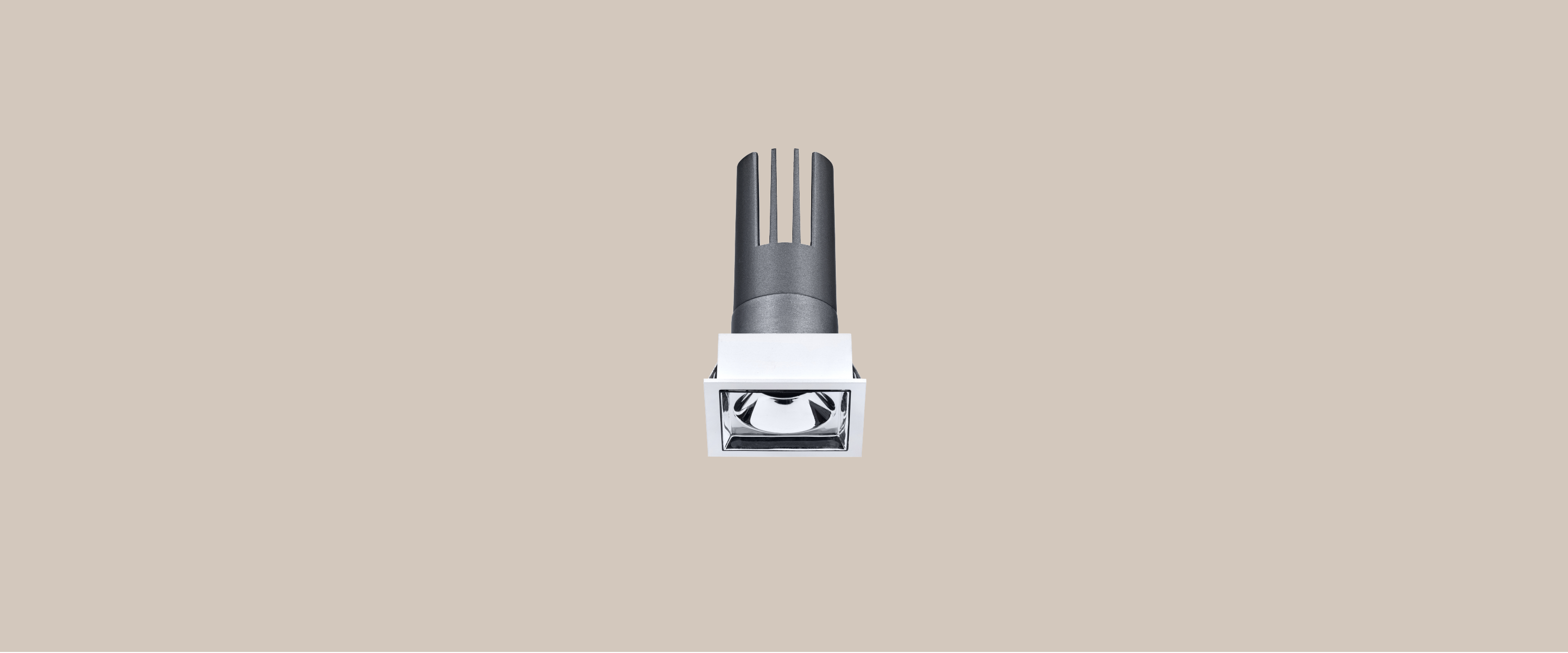

VIRTUE 40
Recessed Square Downlight
VIRTUE 40
Lighting Effects
- Products Specification:
- Type:Recessed Square Downlight
- Cut-Out:ø 40 mm
- Beam Angle:22° 27° 40° 45°
- Power:5W 7W
- CCT:2700K 3000K 4000K
- Weight:0.078KG
- Heat-Sink:Aluminum
- Surface-Treatment:painting

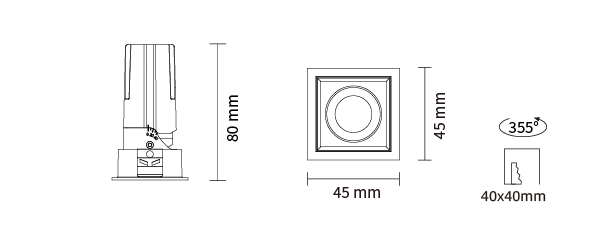

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 5W
- 7W
- Beam Angle
- 22°
- 27°
- 40°
- 45°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- White
- Black
- Reflector
- Mirror
- White
- Black
- Dark gold
- IP Rating
- 20-IP20
- Accessory
- Linear lens
- Honeycomb louver
- Soft lens
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DR01817-05229027
DR01817-05229030
DR01817-05229040
DR01817-05279027
DR01817-05279030
DR01817-05279040
DR01817-05409027
DR01817-05409030
DR01817-05409040
DR01817-05459027
DR01817-05459030
DR01817-05459040
DR01817-07229027
DR01817-07229030
DR01817-07229040
DR01817-07279027
DR01817-07279030
DR01817-07279040
DR01817-07409027
DR01817-07409030
DR01817-07409040
DR01817-07459027
DR01817-07459030
DR01817-07459040
- Luminous Flux (LM)
244LM
257LM
270LM
267LM
281LM
295LM
277LM
292LM
306LM
206LM
217LM
228LM
278LM
293LM
308LM
328LM
345LM
362LM
332LM
349LM
367LM
258LM
272LM
285LM
- Power (W)
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
- Beam Angle
22°
22°
22°
27°
27°
27°
40°
40°
40°
45°
45°
45°
22°
22°
22°
27°
27°
27°
40°
40°
40°
45°
45°
45°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
