VIRTUE 65

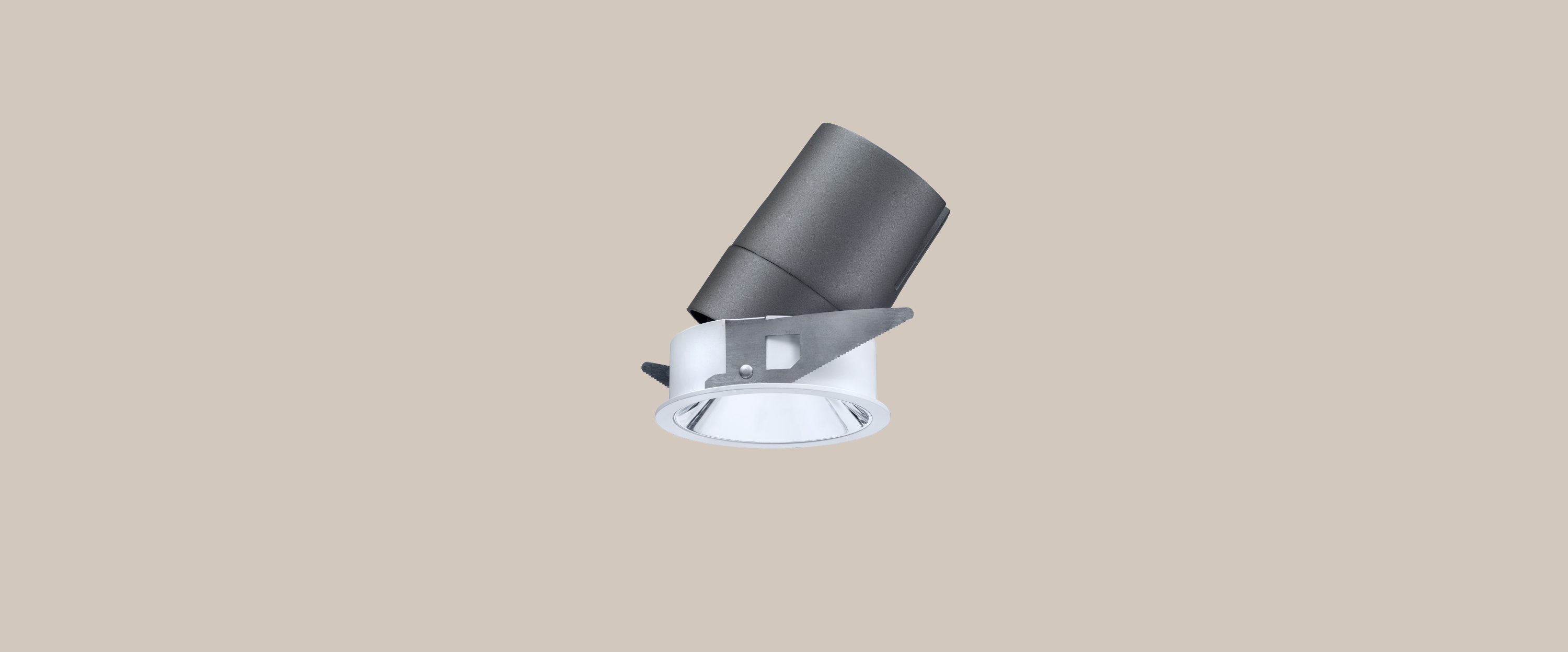

Recessed Adjustable Tunable White Downlight

VIRTUE 65

Lighting Effects

Products Specification:: Type:Recessed Adjustable Tunable White Downlight; Cut-Out:ø 65 mm; Beam Angle:18° 24° 35° 50°; Power:5W 8W 10W 12W; CCT:1800K-4000K 2700K-6000K; Weight:0.22KG; Heat-Sink:Aluminum; Surface-Treatment:painting

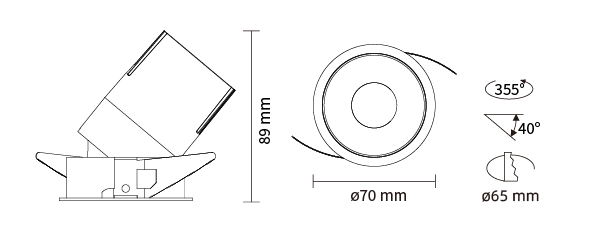

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
5W
8W
10W
12w

Beam Angle

Beam Angle
18°
24°
35°
50°

CRI

CRI
Ra>90

Color

Color
1800K-4000K（e.g.1800K)
1800K-4000K（e.g.4000K)
2700K-6000K（e.g.6000K)
2700K-6000K（e.g.2700K)

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Black

Reflector

Reflector
Mirror
White
Black
Dark gold

IP Rating

IP Rating
20-IP20

Accessory

Accessory
Linear lens
Honeycomb louver
Soft lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR01804-052490X0; DR01804- 052490X0; DR01804-053590X0; DR01804- 053590X0; DR01804-055090X0; DR01804- 055090X0; DR01804-082490X0; DR01804- 082490X0; DR01804-083590X0; DR01804- 083590X0; DR01804-085090X0; DR01804- 085090X0; DR01804-102490X0; DR01804- 102490X0; DR01804-103590X0; DR01804- 103590X0; DR01804-105090X0; DR01804- 105090X0; DR01804-122490X0; DR01804- 122490X0; DR01804-123590X0; DR01804- 123590X0; DR01804-125090X0; DR01804- 125090X0; DR01804-051890X1; DR01804- 051890X1; DR01804-052490X1; DR01804- 052490X1; DR01804-053590X1; DR01804- 053590X1; DR01804-055090X1; DR01804- 055090X1; DR01804-081890X1; DR01804- 081890X1; DR01804-082490X1; DR01804- 082490X1; DR01804-083590X1; DR01804- 083590X1; DR01804-085090X1; DR01804- 085090X1; DR01804-101890X1; DR01804- 101890X1; DR01804-102490X1; DR01804- 102490X1; DR01804-103590X1; DR01804- 103590X1; DR01804-105090X1; DR01804- 105090X1; DR01804-121890X1; DR01804- 121890X1; DR01804-122490X1; DR01804- 122490X1; DR01804-123590X1; DR01804- 123590X1; DR01804-125090X1; DR01804- 125090X1

Luminous Flux (LM): 91LM; 127LM; 167LM; 233LM; 163LM; 227LM; 168LM; 237LM; 310LM; 436LM; 299LM; 420LM; 206LM; 288LM; 372LM; 530LM; 361LM; 510LM; 237LM; 341LM; 441LM; 620LM; 419LM; 598LM; 126LM; 154LM; 104LM; 129LM; 182LM; 228LM; 188LM; 234LM; 223LM; 276LM; 192LM; 240LM; 333LM; 421LM; 346LM; 433LM; 265LM; 325LM; 230LM; 292LM; 402LM; 506LM; 421LM; 524LM; 301LM; 381LM; 273LM; 339LM; 466LM; 592LM; 494LM; 612LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 10W; 10W; 10W; 10W; 10W; 10W; 12w; 12w; 12w; 12w; 12w; 12w; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 12w; 12w; 12w; 12w; 12w; 12w; 12w; 12w

Beam Angle: 24°; 24°; 35°; 35°; 50°; 50°; 24°; 24°; 35°; 35°; 50°; 50°; 24°; 24°; 35°; 35°; 50°; 50°; 24°; 24°; 35°; 35°; 50°; 50°; 18°; 18°; 24°; 24°; 35°; 35°; 50°; 50°; 18°; 18°; 24°; 24°; 35°; 35°; 50°; 50°; 18°; 18°; 24°; 24°; 35°; 35°; 50°; 50°; 18°; 18°; 24°; 24°; 35°; 35°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 1800K-4000K（e.g.1800K); 1800K-4000K（e.g.4000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K); 2700K-6000K（e.g.2700K); 2700K-6000K（e.g.6000K)

Specification

IES

DWG

manual

Favorite
