DIAMOND 100

Recessed Trimless Downlight

DIAMOND 100

Lighting Effects

Products Specification:: Type:Recessed Trimless Downlight; Cut-Out:ø 100 mm; Beam Angle:12D 15D 25D 35D 45D 60D; Power:12W 15W 20W 25W 30W; CCT:2700K 3000K 3500K 4000K; Weight:0.5KG; Heat-Sink:Aluminum; Surface-Treatment:Painting+Plating

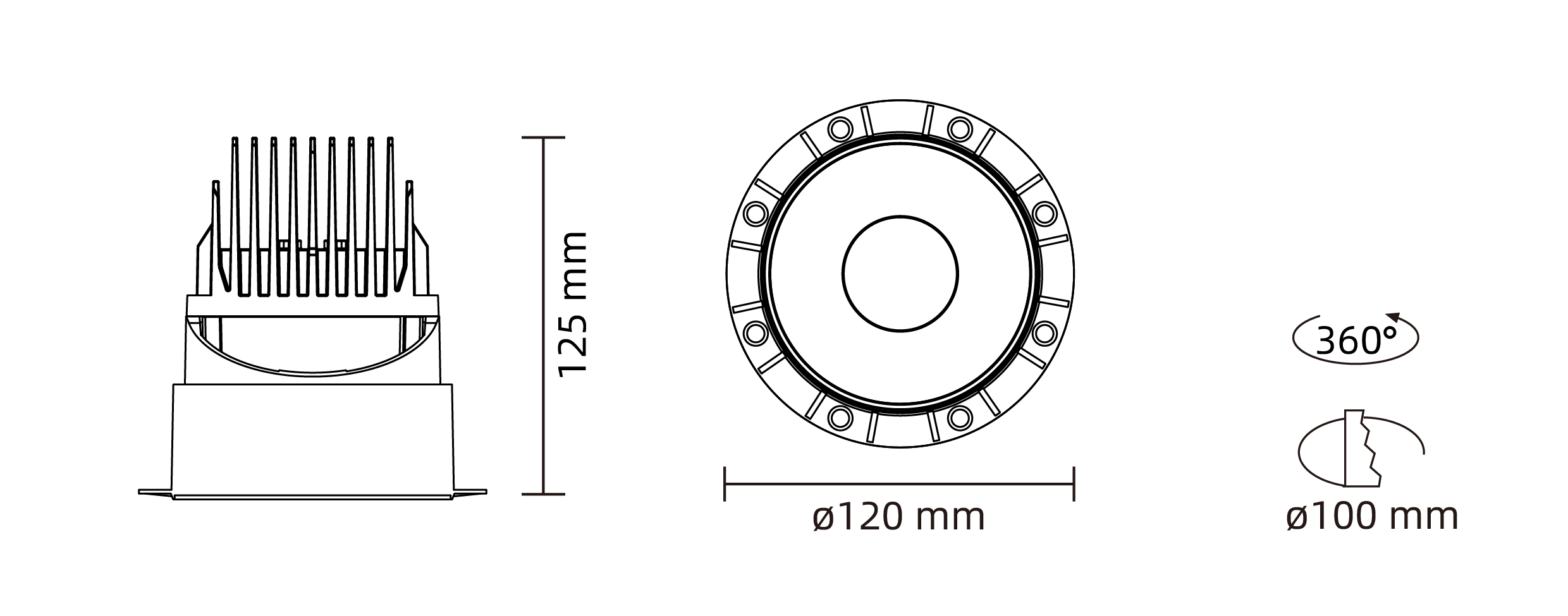

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
12W
15W
20W
25W
30W

Beam Angle

Beam Angle
12°
15°
25°
35°
45°
60°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
3500K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
White

Reflector

Reflector
Mirror

IP Rating

IP Rating
20-IP20

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR02311-12129027; DR02311-12129030; DR02311-12129035; DR02311-12129040; DR02311-12159027; DR02311-12159030; DR02311-12159035; DR02311-12159040; DR02311-12259027; DR02311-12259030; DR02311-12259035; DR02311-12259040; DR02311-12359027; DR02311-12459027; DR02311-12459030; DR02311-12459035; DR02311-12459040; DR02311-12609027; DR02311-12609030; DR02311-12609035; DR02311-12609040; DR02311-15129027; DR02311-15129030; DR02311-15129035; DR02311-15129040; DR02311-15159027; DR02311-15159030; DR02311-15159035; DR02311-15159040; DR02311-15259027; DR02311-15259030; DR02311-15259035; DR02311-15259040; DR02311-15359027; DR02311-15459027; DR02311-15459030; DR02311-15459035; DR02311-15459040; DR02311-15609027; DR02311-15609030; DR02311-15609035; DR02311-15609040; DR02311-20129027; DR02311-20129030; DR02311-20129035; DR02311-20129040; DR02311-20159027; DR02311-20159030; DR02311-20159035; DR02311-20159040; DR02311-20259027; DR02311-20259030; DR02311-20259035; DR02311-20259040; DR02311-20359027; DR02311-20459027; DR02311-20459030; DR02311-20459035; DR02311-20459040; DR02311-20609027; DR02311-20609030; DR02311-20609035; DR02311-20609040; DR02311-25259027; DR02311-25259030; DR02311-25259035; DR02311-25259040; DR02311-25359027; DR02311-25459027; DR02311-25459030; DR02311-25459035; DR02311-25459040; DR02311-25609027; DR02311-25609030; DR02311-25609035; DR02311-25609040; DR02311-30259027; DR02311-30259030; DR02311-30259035; DR02311-30259040; DR02311-30359027; DR02311-30459027; DR02311-30459030; DR02311-30459035; DR02311-30459040; DR02311-30609027; DR02311-30609030; DR02311-30609035; DR02311-30609040

Luminous Flux (LM): 535LM; 564LM; 581LM; 592LM; 750LM; 790LM; 814LM; 829LM; 929LM; 978LM; 1007LM; 1027LM; 1081LM; 957LM; 1007LM; 1038LM; 1058LM; 903LM; 951LM; 979LM; 998LM; 599LM; 631LM; 650LM; 662LM; 871LM; 917LM; 945LM; 963LM; 1071LM; 1127LM; 1161LM; 1183LM; 1242LM; 1099LM; 1157LM; 1192LM; 1215LM; 1039LM; 1094LM; 1127LM; 1149LM; 724LM; 762LM; 785LM; 800LM; 1094LM; 1151LM; 1186LM; 1209LM; 1436LM; 1512LM; 1557LM; 1588LM; 1665LM; 1478LM; 1556LM; 1602LM; 1634LM; 1394LM; 1467LM; 1511LM; 1540LM; 1683LM; 1772LM; 1825LM; 1861LM; 1982LM; 1779LM; 1873LM; 1929LM; 1966LM; 1632LM; 1718LM; 1769LM; 1804LM; 1933LM; 2035LM; 2096LM; 2137LM; 2241LM; 2002LM; 2107LM; 2170LM; 2212LM; 1874LM; 1972LM; 2031LM; 2071LM

Power (W): 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W

Beam Angle: 12°; 12°; 12°; 12°; 15°; 15°; 15°; 15°; 25°; 25°; 25°; 25°; 35°; 45°; 45°; 45°; 45°; 60°; 60°; 60°; 60°; 12°; 12°; 12°; 12°; 15°; 15°; 15°; 15°; 25°; 25°; 25°; 25°; 35°; 45°; 45°; 45°; 45°; 60°; 60°; 60°; 60°; 12°; 12°; 12°; 12°; 15°; 15°; 15°; 15°; 25°; 25°; 25°; 25°; 35°; 45°; 45°; 45°; 45°; 60°; 60°; 60°; 60°; 25°; 25°; 25°; 25°; 35°; 45°; 45°; 45°; 45°; 60°; 60°; 60°; 60°; 25°; 25°; 25°; 25°; 35°; 45°; 45°; 45°; 45°; 60°; 60°; 60°; 60°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K

Specification

IES

DWG

manual

Favorite

Application
