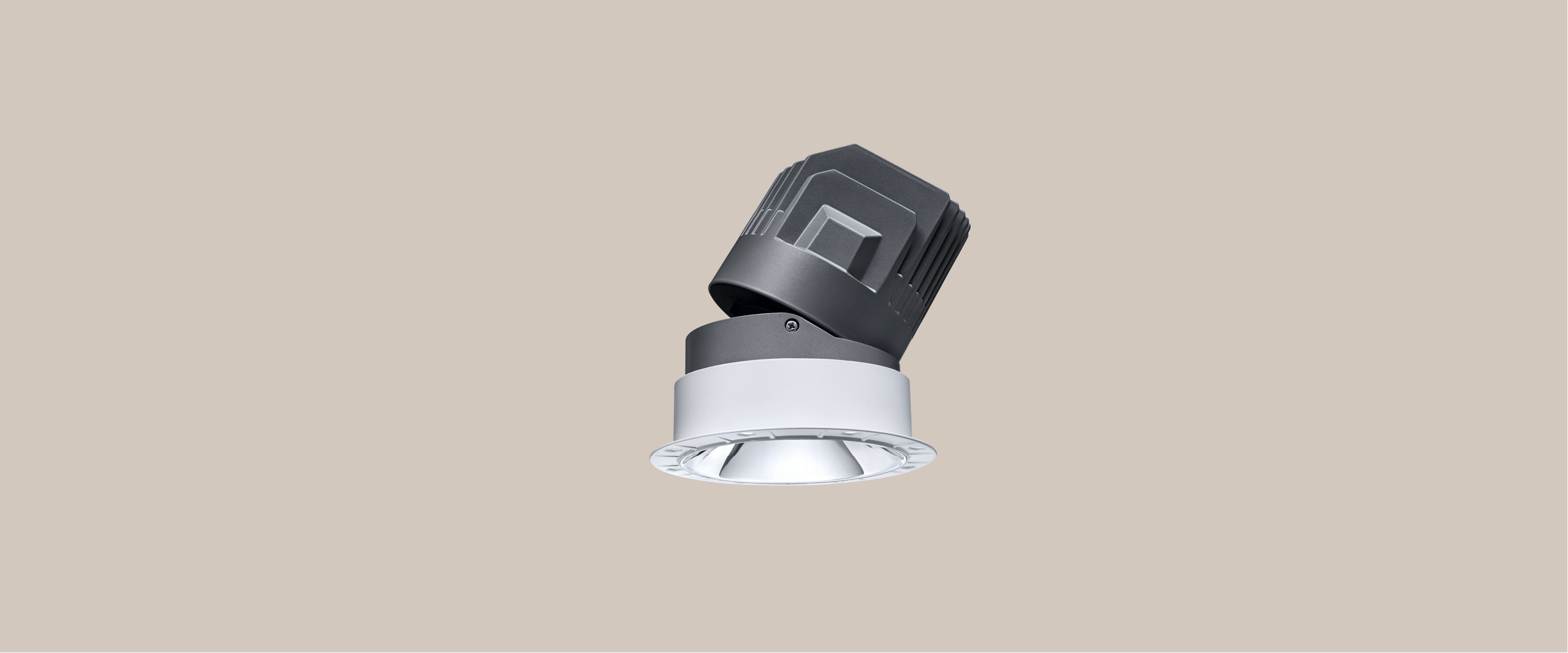

DIAMOND 125

Recessed Trimless Adjustable Downlight

DIAMOND 125

Lighting Effects

Products Specification:: Type:Recessed Trimless Adjustable Downlight; Cut-Out:ø 125 mm; Beam Angle:12D 15D 27D 36D 50D; Power:20W 25W 30W 35W 40W 45W; CCT:2700K 3000K 3500K 4000K; Weight:0.95KG; Heat-Sink:Aluminum; Surface-Treatment:Painting+Plating

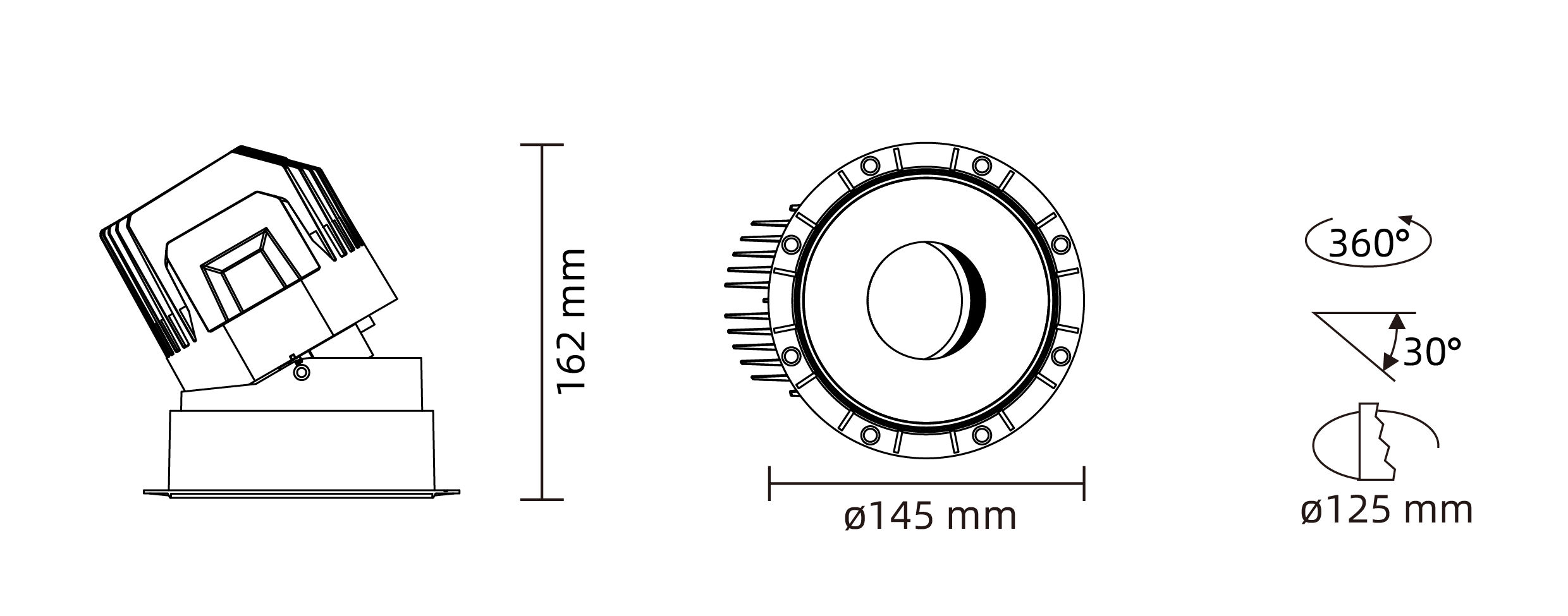

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
20W
25W
30W
35W
40W
45W

Beam Angle

Beam Angle
12°
15°
27°
36°
50°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
3500K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
White

Reflector

Reflector
Mirror

IP Rating

IP Rating
20-IP20

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR02320-20129027; DR02320-20129030; DR02320-20129035; DR02320-20129040; DR02320-20159027; DR02320-20159030; DR02320-20159035; DR02320-20159040; DR02320-20279027; DR02320-20279030; DR02320-20279035; DR02320-20279040; DR02320-20369027; DR02320-20369030; DR02320-20369035; DR02320-20369040; DR02320-20509027; DR02320-20509030; DR02320-20509035; DR02320-20509040; DR02320-25129027; DR02320-25129030; DR02320-25129035; DR02320-25129040; DR02320-25159027; DR02320-25159030; DR02320-25159035; DR02320-25159040; DR02320-25279027; DR02320-25279030; DR02320-25279035; DR02320-25279040; DR02320-25369027; DR02320-25369030; DR02320-25369035; DR02320-25369040; DR02320-25509027; DR02320-25509030; DR02320-25509035; DR02320-25509040; DR02320-30129027; DR02320-30129030; DR02320-30129035; DR02320-30129040; DR02320-30159027; DR02320-30159030; DR02320-30159035; DR02320-30159040; DR02320-30279027; DR02320-30279030; DR02320-30279035; DR02320-30279040; DR02320-30369027; DR02320-30369030; DR02320-30369035; DR02320-30369040; DR02320-30509027; DR02320-30509030; DR02320-30509035; DR02320-30509040; DR02320-35159027; DR02320-35159030; DR02320-35159035; DR02320-35159040; DR02320-35279027; DR02320-35279030; DR02320-35279035; DR02320-35279040; DR02320-35369027; DR02320-35369030; DR02320-35369035; DR02320-35369040; DR02320-35509027; DR02320-35509030; DR02320-35509035; DR02320-35509040; DR02320-40159027; DR02320-40159030; DR02320-40159035; DR02320-40159040; DR02320-40279027; DR02320-40279030; DR02320-40279035; DR02320-40279040; DR02320-40369027; DR02320-40369030; DR02320-40369035; DR02320-40369040; DR02320-40509027; DR02320-40509030; DR02320-40509035; DR02320-40509040; DR02320-45279027; DR02320-45279030; DR02320-45279035; DR02320-45279040; DR02320-45369027; DR02320-45369030; DR02320-45369035; DR02320-45369040; DR02320-45509027; DR02320-45509030; DR02320-45509035; DR02320-45509040

Luminous Flux (LM): 910LM; 958LM; 987LM; 1006LM; 1068LM; 1124LM; 1158LM; 1180LM; 1638LM; 1724LM; 1776LM; 1810LM; 1690LM; 1779LM; 1832LM; 1868LM; 1438LM; 1514LM; 1559LM; 1590LM; 1008LM; 1061LM; 1093LM; 1114LM; 1272LM; 1339LM; 1379LM; 1405LM; 1935LM; 2037LM; 2098LM; 2139LM; 2006LM; 2112LM; 2175LM; 2218LM; 1719LM; 1810LM; 1864LM; 1901LM; 1089LM; 1146LM; 1180LM; 1203LM; 1438LM; 1514LM; 1559LM; 1590LM; 2256LM; 2375LM; 2446LM; 2494LM; 2333LM; 2456LM; 2530LM; 2579LM; 2011LM; 2117LM; 2180LM; 2223LM; 1639LM; 1725LM; 1777LM; 1812LM; 2704LM; 2846LM; 2932LM; 2989LM; 2788LM; 2935LM; 3023LM; 3081LM; 2406LM; 2532LM; 2608LM; 2659LM; 1760LM; 1853LM; 1908LM; 1945LM; 2889LM; 3042LM; 3133LM; 3194LM; 2977LM; 3133LM; 3227LM; 3290LM; 2574LM; 2710LM; 2791LM; 2845LM; 3139LM; 3304LM; 3403LM; 3469LM; 3240LM; 3411LM; 3513LM; 3581LM; 2815LM; 2963LM; 3052LM; 3111LM

Power (W): 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 40W; 40W; 40W; 40W; 40W; 40W; 40W; 40W; 40W; 40W; 40W; 40W; 40W; 40W; 40W; 40W; 45W; 45W; 45W; 45W; 45W; 45W; 45W; 45W; 45W; 45W; 45W; 45W

Beam Angle: 12°; 12°; 12°; 12°; 15°; 15°; 15°; 15°; 27°; 27°; 27°; 27°; 36°; 36°; 36°; 36°; 50°; 50°; 50°; 50°; 12°; 12°; 12°; 12°; 15°; 15°; 15°; 15°; 27°; 27°; 27°; 27°; 36°; 36°; 36°; 36°; 50°; 50°; 50°; 50°; 12°; 12°; 12°; 12°; 15°; 15°; 15°; 15°; 27°; 27°; 27°; 27°; 36°; 36°; 36°; 36°; 50°; 50°; 50°; 50°; 15°; 15°; 15°; 15°; 27°; 27°; 27°; 27°; 36°; 36°; 36°; 36°; 50°; 50°; 50°; 50°; 15°; 15°; 15°; 15°; 27°; 27°; 27°; 27°; 36°; 36°; 36°; 36°; 50°; 50°; 50°; 50°; 27°; 27°; 27°; 27°; 36°; 36°; 36°; 36°; 50°; 50°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K

Specification

IES

DWG

manual

Favorite

Application
