DIAMOND 100

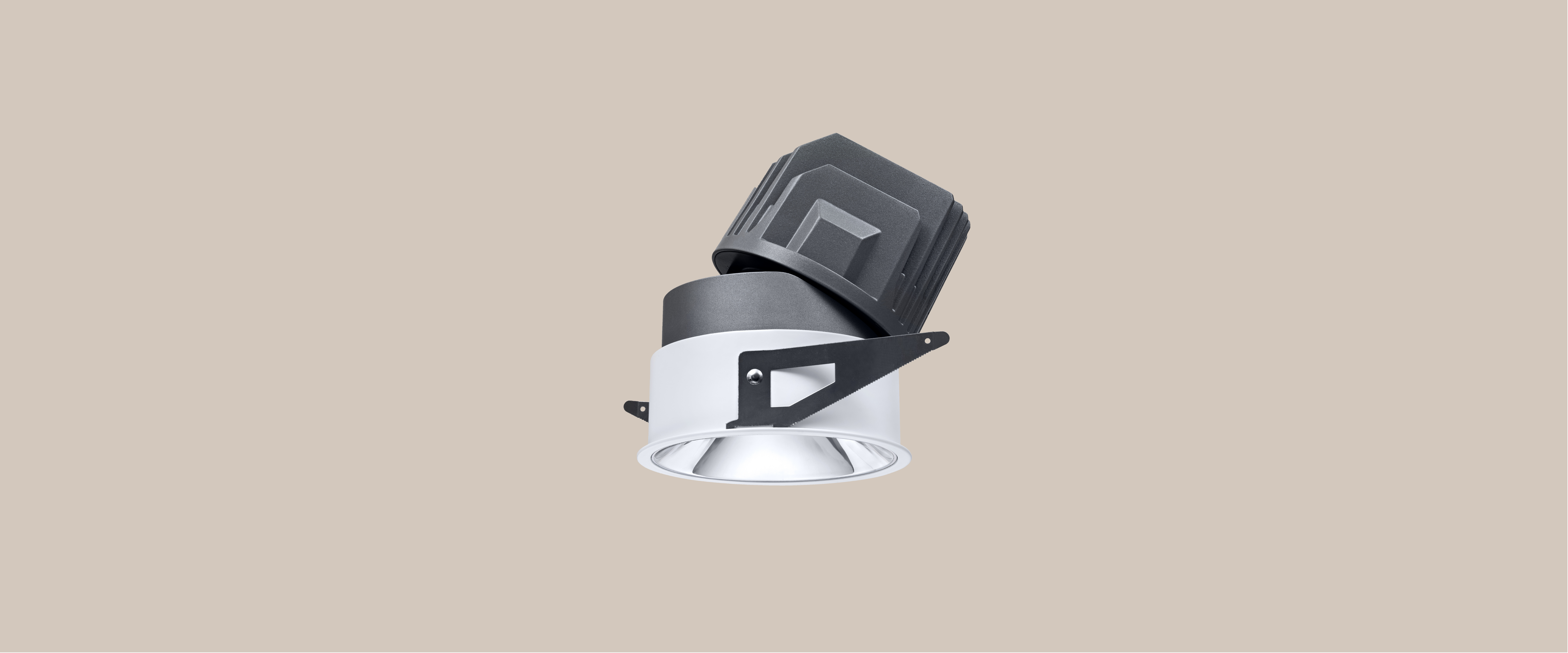

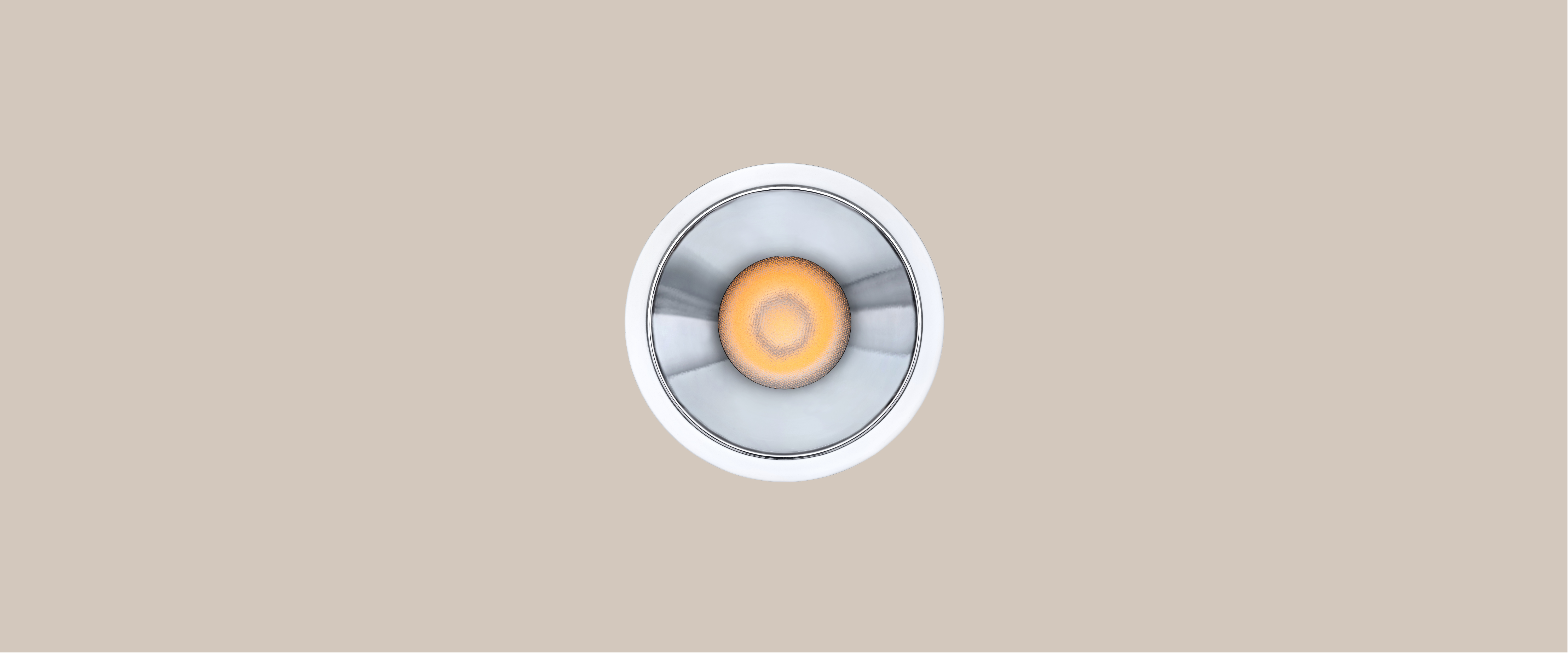

Recessed Adjustable Tunable White Downlight
DIAMOND 100
DIAMOND 100
Lighting Effects
- Products Specification:
- Type:Recessed Adjustable Tunable White Downlight
- Cut-Out:ø 100 mm
- Beam Angle:25D 35D 45D
- Power:15W 20W 25W
- CCT:1800K-4000K 2700K-6000K
- Weight:0.5KG
- Heat-Sink:Aluminum
- Surface-Treatment:Painting+Plating

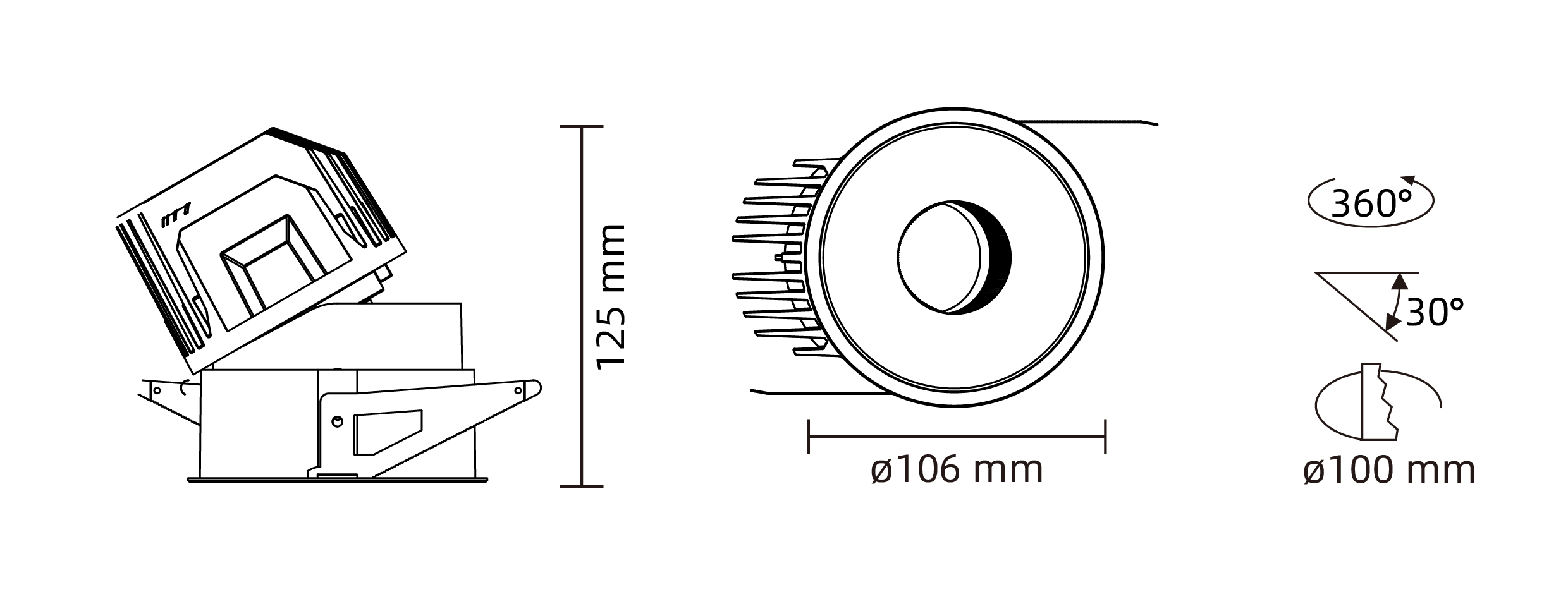

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 15W
- 20W
- 25W
- Beam Angle
- 25°
- 35°
- 45°
- CRI
- Ra>90
- Color
- 1800K-4000K(e.g.1800K)
- 1800K-4000K(e.g.4000K)
- 2700K-6000K(e.g.2700K)
- 2700K-6000K(e.g.6000K)
- Dimming type
- 4-DALI dimming
- Finish
- White
- Reflector
- Mirror
- IP Rating
- 20-IP20
- Accessory
- Honeycomb louver
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DR02314-15259018
DR02314-15259040
DR02314-15359018
DR02314-15359040
DR02314-15459018
DR02314-15459040
DR02314-20259018
DR02314-20259040
DR02314-20359018
DR02314-20359040
DR02314-20459018
DR02314-20459040
DR02314-25259018
DR02314-25259040
DR02314-25359018
DR02314-25359040
DR02314-25459018
DR02314-25459040
DR02314-20259027
DR02314-20259060
DR02314-20359027
DR02314-20359060
DR02314-20459027
DR02314-20459060
DR02314-25259027
DR02314-25259060
DR02314-25359027
DR02314-25359060
DR02314-25459027
DR02314-25459060
- Luminous Flux (LM)
466LM
814LM
487LM
840LM
477LM
822LM
596LM
1039LM
617LM
1101LM
636LM
1079LM
777LM
1293LM
828LM
1383LM
807LM
1363LM
918LM
1043LM
976LM
1199LM
1025LM
1147LM
1218LM
1333LM
1308LM
1401LM
1253LM
1503LM
- Power (W)
15W
15W
15W
15W
15W
15W
20W
20W
20W
20W
20W
20W
25W
25W
25W
25W
25W
25W
20W
20W
20W
20W
20W
20W
25W
25W
25W
25W
25W
25W
- Beam Angle
25°
25°
35°
35°
45°
45°
25°
25°
35°
35°
45°
45°
25°
25°
35°
35°
45°
45°
25°
25°
35°
35°
45°
45°
25°
25°
35°
35°
45°
45°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
2700K-6000K(e.g.2700K)
2700K-6000K(e.g.6000K)
2700K-6000K(e.g.2700K)
2700K-6000K(e.g.6000K)
2700K-6000K(e.g.2700K)
2700K-6000K(e.g.6000K)
2700K-6000K(e.g.2700K)
2700K-6000K(e.g.6000K)
2700K-6000K(e.g.2700K)
2700K-6000K(e.g.6000K)
2700K-6000K(e.g.2700K)
2700K-6000K(e.g.6000K)
