DIAMOND 125

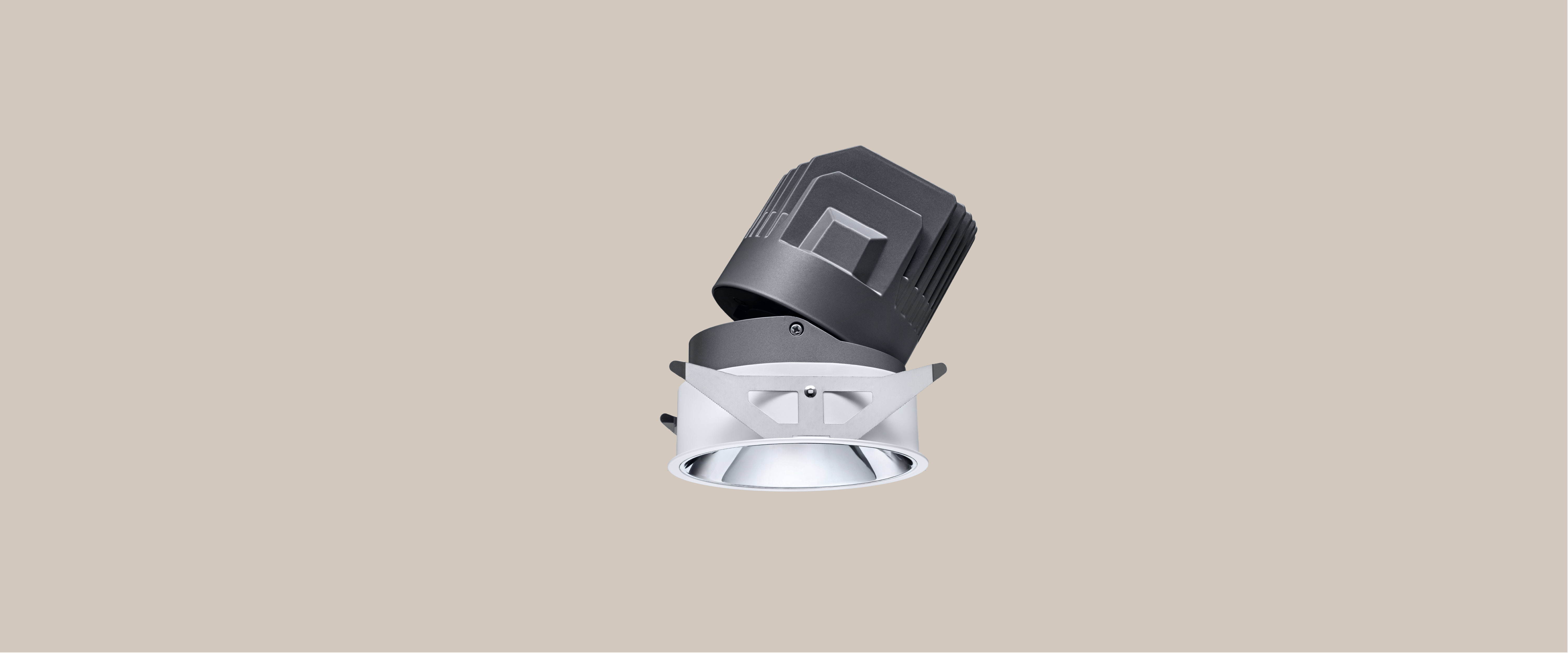

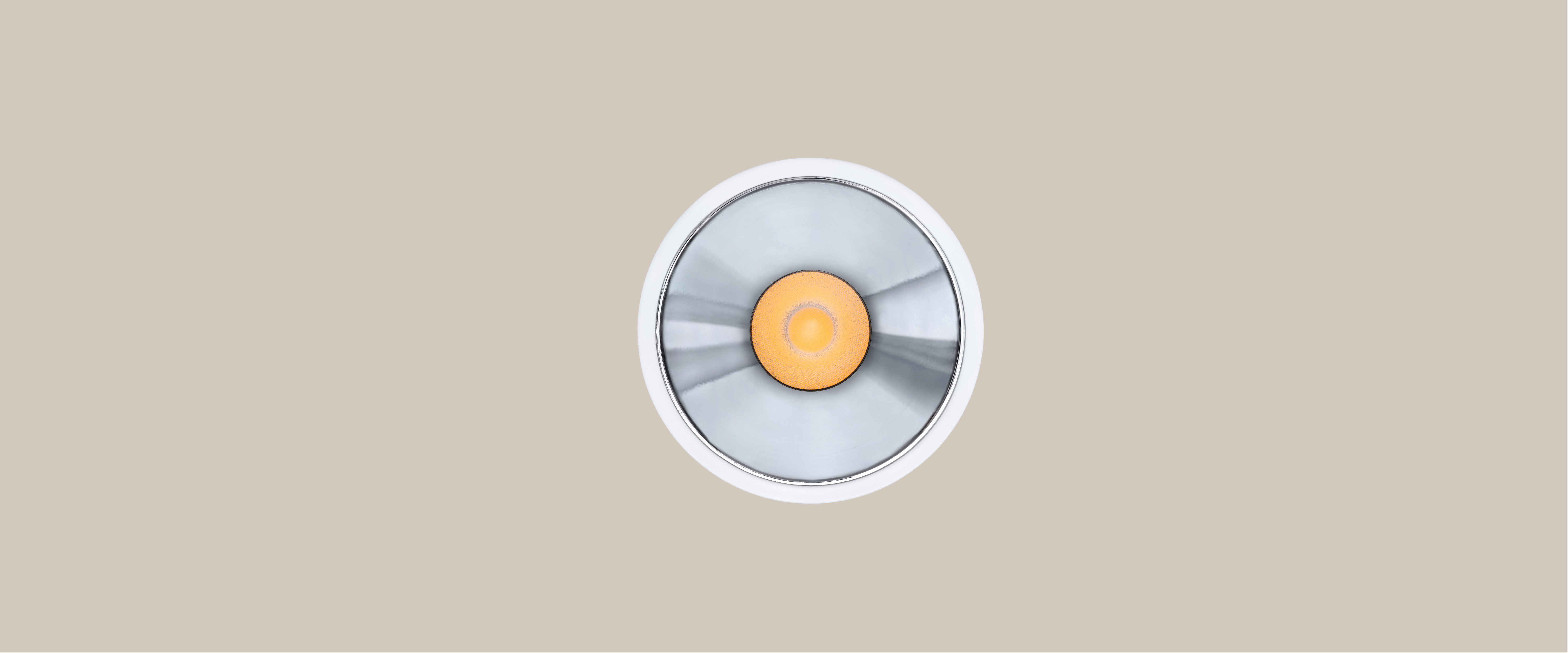

Recessed Adjustable Tunable White Downlight

DIAMOND 125

DIAMOND 125

Lighting Effects

Products Specification:: Type:Recessed Adjustable Tunable White Downlight; Cut-Out:ø 125 mm; Beam Angle:28D 38D 50D; Power:30W 35W 40W; CCT:2700K-6000K; Weight:0.95KG; Heat-Sink:Aluminum; Surface-Treatment:Painting+Plating

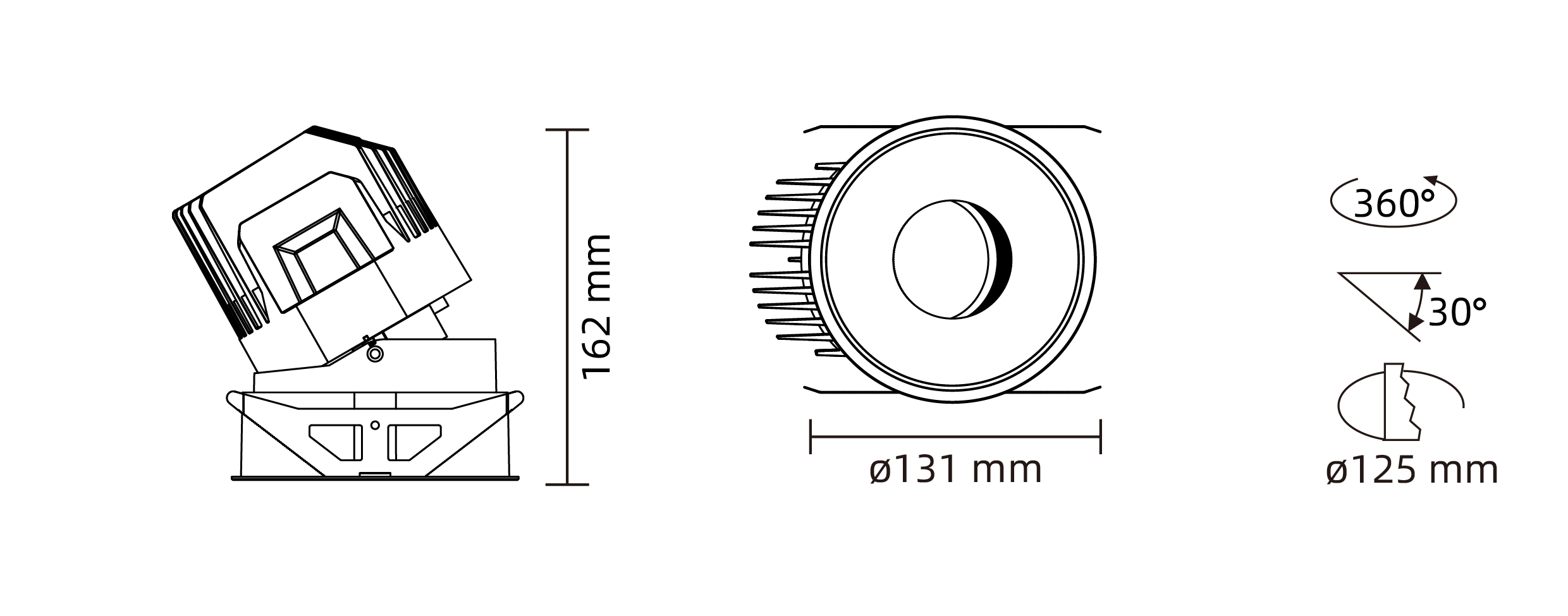

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
30W
35W
40W

Beam Angle

Beam Angle
28°
38°
50°

CRI

CRI
Ra>90

Color

Color
2700K-6000K(e.g.2700K)
2700K-6000K(e.g.6000K)

Dimming type

Dimming type
4-DALI dimming

Finish

Finish
White

Reflector

Reflector
Mirror

IP Rating

IP Rating
20-IP20

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR02322-30289027; DR02322-30289060; DR02322-30389027; DR02322-30389060; DR02322-30509027; DR02322-30509060; DR02322-35289027; DR02322-35289060; DR02322-35389027; DR02322-35389060; DR02322-35509027; DR02322-35509060; DR02322-40289027; DR02322-40289060; DR02322-40389027; DR02322-40389060; DR02322-40509027; DR02322-40509060

Luminous Flux (LM): 1677LM; 2132LM; 1725LM; 2242LM; 1503LM; 1916LM; 2038LM; 2579LM; 2117LM; 2667LM; 1834LM; 2323LM; 2246LM; 2913LM; 2258LM; 2894LM; 1995LM; 2614LM

Power (W): 30W; 30W; 30W; 30W; 30W; 30W; 35W; 35W; 35W; 35W; 35W; 35W; 40W; 40W; 40W; 40W; 40W; 40W

Beam Angle: 28°; 28°; 38°; 38°; 50°; 50°; 28°; 28°; 38°; 38°; 50°; 50°; 28°; 28°; 38°; 38°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K-6000K(e.g.2700K); 2700K-6000K(e.g.6000K); 2700K-6000K(e.g.2700K); 2700K-6000K(e.g.6000K); 2700K-6000K(e.g.2700K); 2700K-6000K(e.g.6000K); 2700K-6000K(e.g.2700K); 2700K-6000K(e.g.6000K); 2700K-6000K(e.g.2700K); 2700K-6000K(e.g.6000K); 2700K-6000K(e.g.2700K); 2700K-6000K(e.g.6000K); 2700K-6000K(e.g.2700K); 2700K-6000K(e.g.6000K); 2700K-6000K(e.g.2700K); 2700K-6000K(e.g.6000K); 2700K-6000K(e.g.2700K); 2700K-6000K(e.g.6000K)
