DIAMOND 75
Recessed Trimless Adjustable Tunable White Downlight
DIAMOND 75
Lighting Effects
- Products Specification:
- Type:Recessed Trimless Adjustable Tunable White Downlight
- Cut-Out:ø 75 mm
- Beam Angle:15D 25D 35D 45D
- Power:8W 10W 12W 15W
- CCT:1800K-4000K 2700K-6000K
- Weight:0.28KG
- Heat-Sink:Aluminum
- Surface-Treatment:Painting+Plating

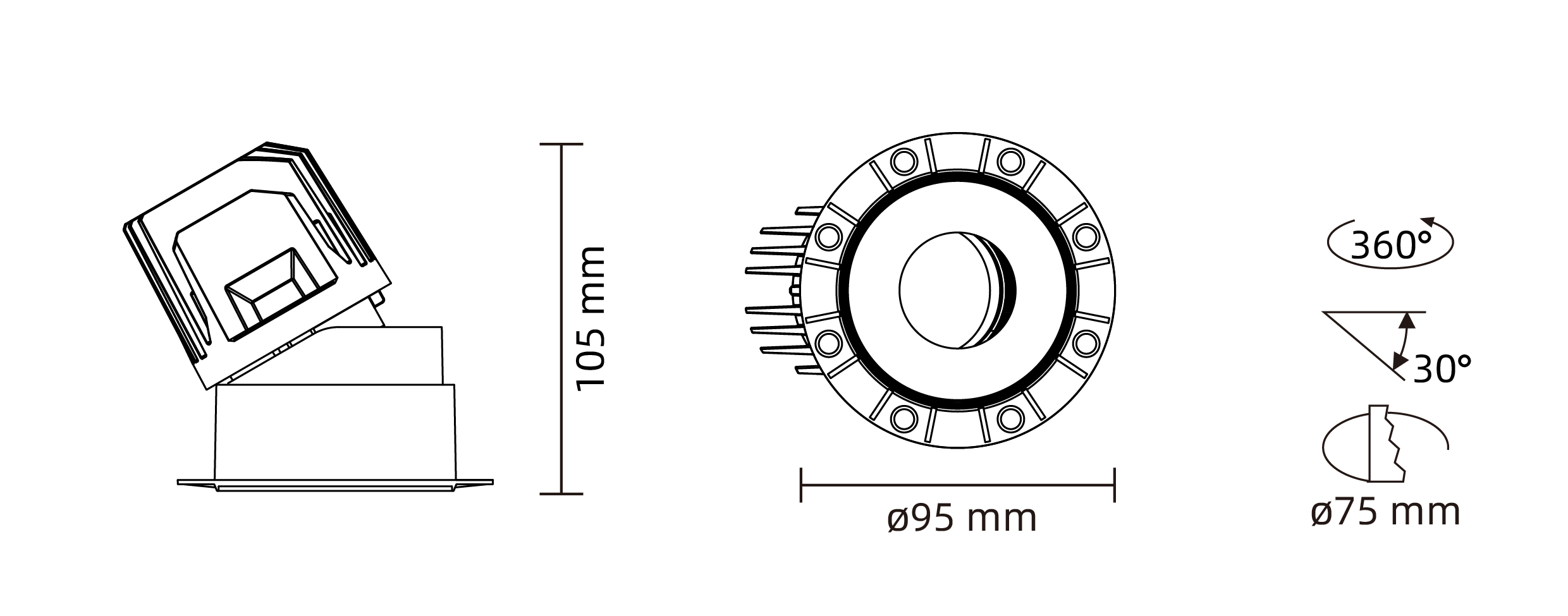

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 8W
- 10W
- 12W
- 15W
- Beam Angle
- 15°
- 25°
- 35°
- 45°
- CRI
- Ra>90
- Color
- 1800K-4000K(e.g.1800K)
- 1800K-4000K(e.g.4000K)
- 2700K-6000K(e.g.2700K)
- 2700K-6000K(e.g.6000K)
- Dimming type
- 4-DALI dimming
- Finish
- White
- Reflector
- Mirror
- IP Rating
- 20-IP20
- Accessory
- Honeycomb louver
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DR02308-08259018
DR02308-08259040
DR02308-08359018
DR02308-08359040
DR02308-08459018
DR02308-08459040
DR02308-10259018
DR02308-10259040
DR02308-10359018
DR02308-10359040
DR02308-10459018
DR02308-10459040
DR02308-12259018
DR02308-12259040
DR02308-12359018
DR02308-12359040
DR02308-12459018
DR02308-12459040
DR02308-15259018
DR02308-15259040
DR02308-15359018
DR02308-15359040
DR02308-15459018
DR02308-15459040
DR02308-10159027
DR02308-10159060
DR02308-10259027
DR02308-10259060
DR02308-10359027
DR02308-10359060
DR02308-10459027
DR02308-10459060
DR02308-15159027
DR02308-15159060
DR02308-15259027
DR02308-15259060
DR02308-15359027
DR02308-15359060
DR02308-15459027
DR02308-15459060
- Luminous Flux (LM)
264LM
459LM
288LM
499LM
285LM
501LM
318LM
549LM
345LM
596LM
358LM
607LM
363LM
626LM
389LM
679LM
394LM
689LM
405LM
677LM
442LM
800LM
450LM
774LM
411LM
538LM
490LM
576LM
505LM
651LM
531LM
617LM
453LM
579LM
620LM
738LM
640LM
811LM
658LM
793LM
- Power (W)
8W
8W
8W
8W
8W
8W
10W
10W
10W
10W
10W
10W
12W
12W
12W
12W
12W
12W
15W
15W
15W
15W
15W
15W
10W
10W
10W
10W
10W
10W
10W
10W
15W
15W
15W
15W
15W
15W
15W
15W
- Beam Angle
25°
25°
35°
35°
45°
45°
25°
25°
35°
35°
45°
45°
25°
25°
35°
35°
45°
45°
25°
25°
35°
35°
45°
45°
15°
15°
25°
25°
35°
35°
45°
45°
15°
15°
25°
25°
35°
35°
45°
45°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
1800K-4000K(e.g.1800K)
1800K-4000K(e.g.4000K)
2700K-6000K(e.g.2700K)
2700K-6000K(e.g.6000K)
2700K-6000K(e.g.2700K)
2700K-6000K(e.g.6000K)
2700K-6000K(e.g.2700K)
2700K-6000K(e.g.6000K)
2700K-6000K(e.g.2700K)
2700K-6000K(e.g.6000K)
2700K-6000K(e.g.2700K)
2700K-6000K(e.g.6000K)
2700K-6000K(e.g.2700K)
2700K-6000K(e.g.6000K)
2700K-6000K(e.g.2700K)
2700K-6000K(e.g.6000K)
2700K-6000K(e.g.2700K)
2700K-6000K(e.g.6000K)
