MIZAR 38
Linear In-ground light
MIZAR 38
MIZAR 38
Lighting Effects
- Products Specification:
- Type:Linear In-ground Light
- Power:36W
- Beam Angle:24x38D 17D 25D 32D 40D
- Weight:3.3kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:painting
- Remarks:This product is not suitable for environments with water pressure.

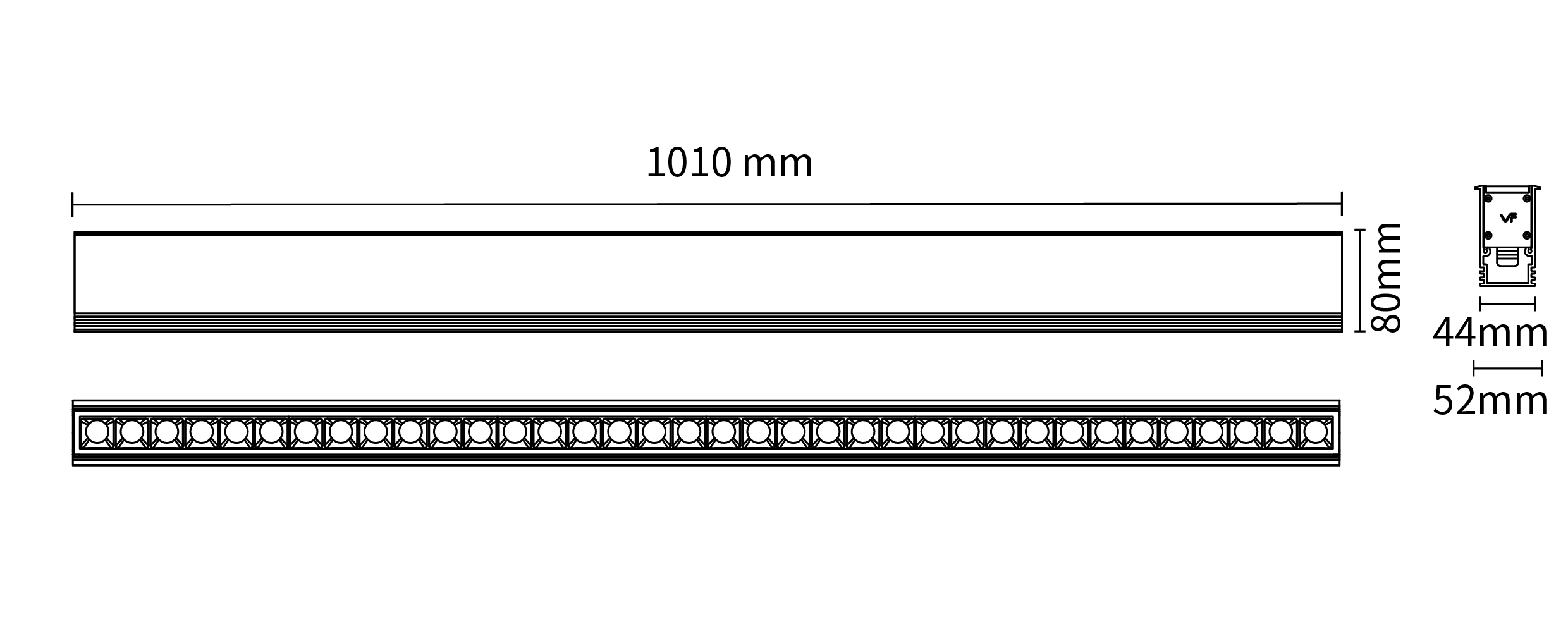

- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 36W
Beam Angle- Beam Angle
- 17°
- 24x38°
- 25°
- 32°
- 40°
CRI- CRI
- Ra>90
Color- Color
- 2700K
- 3000K
- 4000K
Control- Control
Dimming type- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
Finish- Finish
- 02-Black
Reflector- Reflector
- 2-Black
IP Rating- IP Rating
- 65-IP65
Accessory- Accessory
- 1-Honeycomb louver
- 4-Linear lens
Power(W)
- Power(W)
- 36W
Beam Angle
- Beam Angle
- 17°
- 24x38°
- 25°
- 32°
- 40°
CRI
- CRI
- Ra>90
Color
- Color
- 2700K
- 3000K
- 4000K
Control
- Control
Dimming type
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
Finish
- Finish
- 02-Black
Reflector
- Reflector
- 2-Black
IP Rating
- IP Rating
- 65-IP65
Accessory
- Accessory
- 1-Honeycomb louver
- 4-Linear lens
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
LB00202-36A19027
LB00202-36A19030
LB00202-36A19040
LB00202-36179027
LB00202-36179030
LB00202-36179040
LB00202-36259027
LB00202-36259030
LB00202-36259040
LB00202-36329027
LB00202-36329030
LB00202-36329040
LB00202-36409027
LB00202-36409030
LB00202-36409040
- Luminous Flux (LM)
2134LM
2247LM
2359LM
2202LM
2318LM
2434LM
2344LM
2468LM
2591LM
2373LM
2498LM
2623LM
1942LM
2044LM
2147LM
- Power (W)
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
- Beam Angle
24x38°
24x38°
24x38°
17°
17°
17°
25°
25°
25°
32°
32°
32°
40°
40°
40°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Control
- Specification
- IES
- DWG
- manual
- Favorite
