MIZAR 38
Linear In-ground wall washer light
MIZAR 38
ground-mounted dimmable linear wall washer
MIZAR 38
ground-mounted dimmable linear wall washer
Lighting Effects
- Products Specification:
- Type:Linear In-ground wall washer light
- Power:36W
- Beam Angle:18X40D 25x65D
- Weight:3.3kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:painting
- Remarks:This product is not suitable for environments with water pressure.

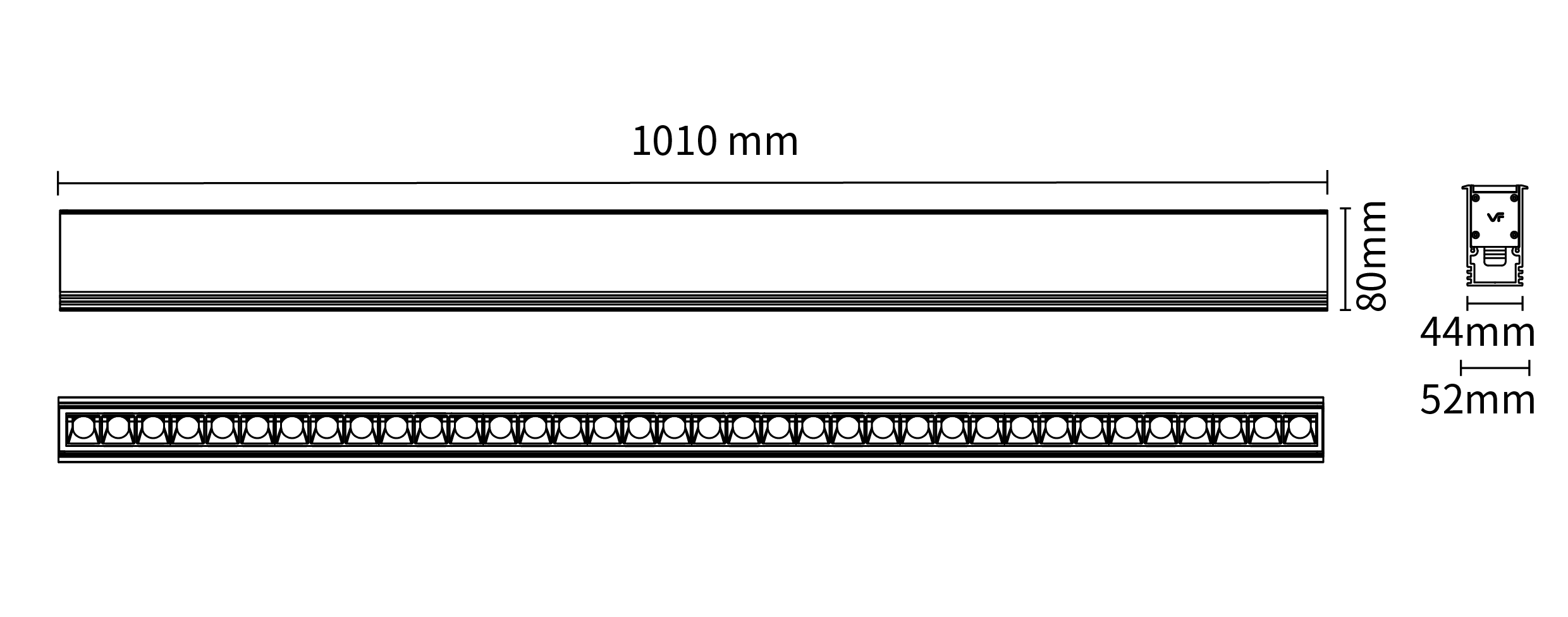

- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 36W
Beam Angle- Beam Angle
- 18x40°
- 25x65°
CRI- CRI
- Ra>90
Color- Color
- 2700K
- 3000K
- 4000K
Control- Control
Dimming type- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
Finish- Finish
- 02-Black
Reflector- Reflector
- 2-Black
IP Rating- IP Rating
- 65-IP65
Accessory- Accessory
- 1-Honeycomb louver
- 4-Linear lens
Power(W)
- Power(W)
- 36W
Beam Angle
- Beam Angle
- 18x40°
- 25x65°
CRI
- CRI
- Ra>90
Color
- Color
- 2700K
- 3000K
- 4000K
Control
- Control
Dimming type
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
Finish
- Finish
- 02-Black
Reflector
- Reflector
- 2-Black
IP Rating
- IP Rating
- 65-IP65
Accessory
- Accessory
- 1-Honeycomb louver
- 4-Linear lens
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
LB00202-36A19027
LB00202-36A19030
LB00202-36A19040
LB00202-36A29027
LB00202-36A29030
LB00202-36A29040
- Luminous Flux (LM)
2273LM
2393LM
2513LM
1884LM
1983LM
2082LM
- Power (W)
36W
36W
36W
36W
36W
36W
- Beam Angle
18x40°
18x40°
18x40°
25x65°
25x65°
25x65°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
- Control
