LINA-S
LED Strip Light 48 LEDs/M
LINA-S
LED Strip Light 48 LEDs/M
This family features high Ra over 90 and high efficacy up to 82.5lm/W. 3SDCM for standard version.
5 different power options, 2W/M,4.8W/M,7.2W/M,9.6W/M and14.4W/M. Work without extra aluminum profile for heat dissipation.IP44 for standard version, IP67 available on request.
5 different power options, 2W/M,4.8W/M,7.2W/M,9.6W/M and14.4W/M. Work without extra aluminum profile for heat dissipation.IP44 for standard version, IP67 available on request.
Lighting Effects
- Products Specification:
- Type:LED Strip Light 48 LEDs/M
- Beam Angle:110D
- Power:4.8W/M 7.2W/M
- Weight:0.3kg/roll
- CCT:2700K 3000K 4000K
- Surface-Treatment:Silica Gel

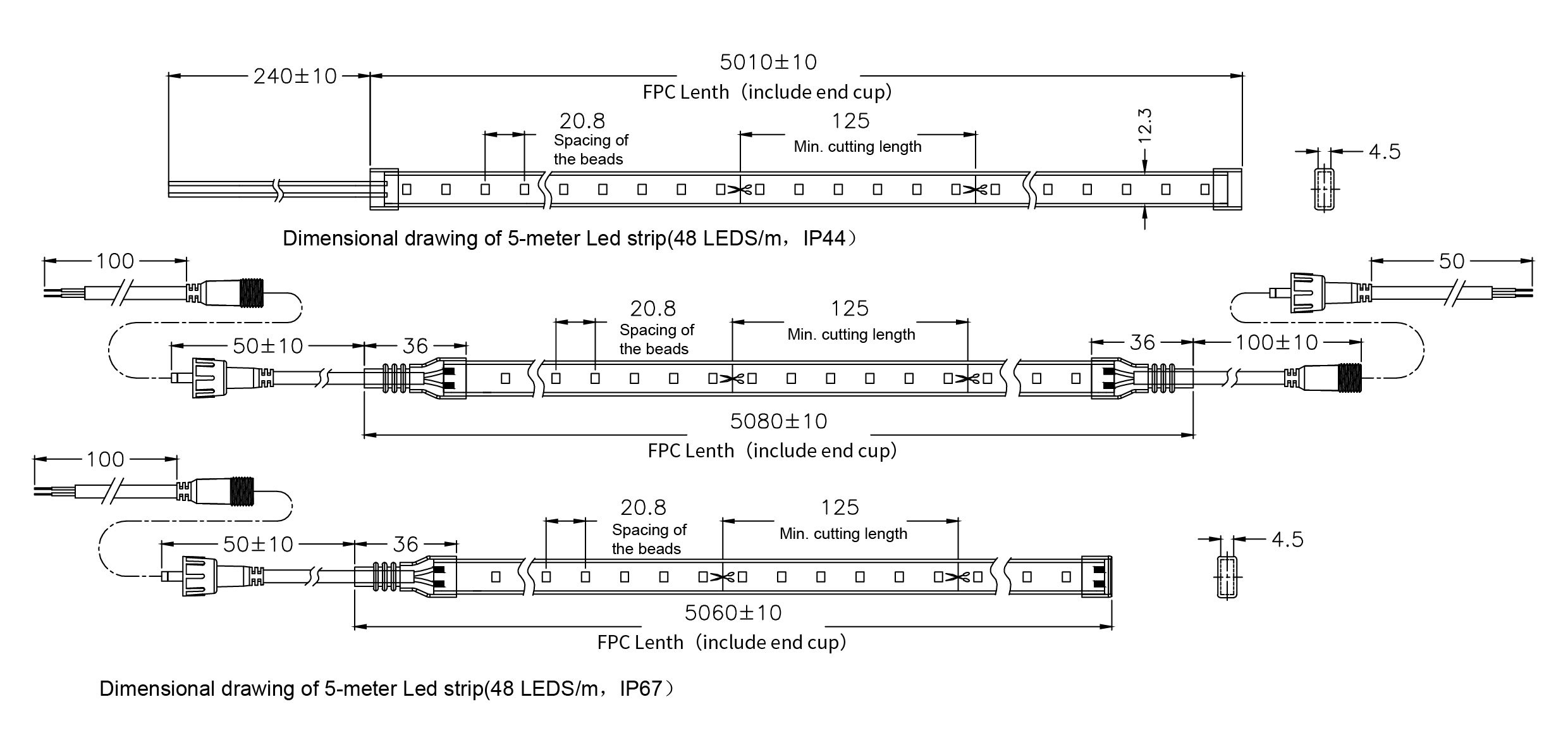

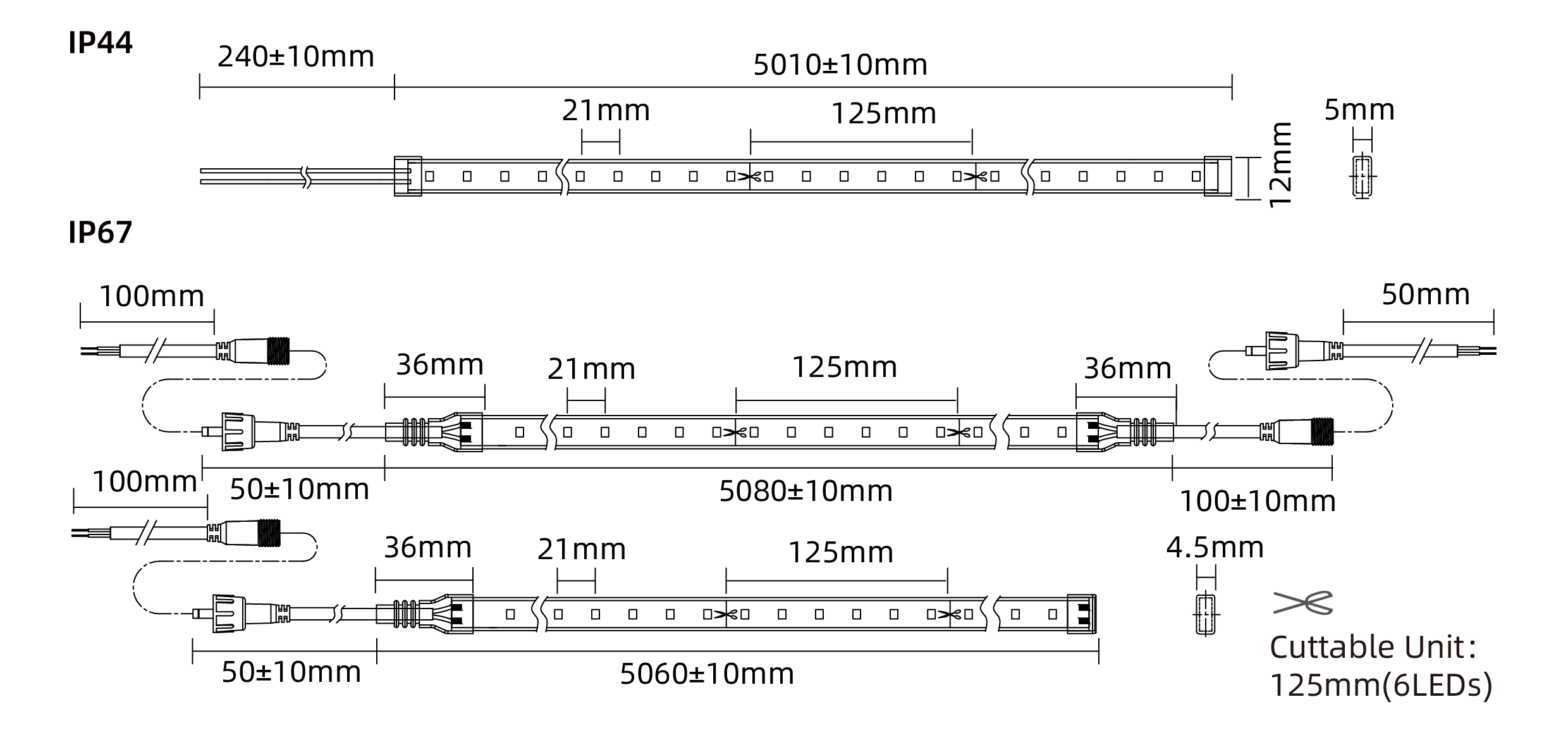

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
Power(W)
- Power(W)
- 4.8W/m
- 7.2W/m
Beam Angle
- Beam Angle
- 110°
CRI
- CRI
- Ra>90
Color
- Color
- 2700K
- 3000K
- 4000K
Dimming type
- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
- 6-Bluetooth
Finish
- Finish
- 01-White
Reflector
- Reflector
- nothing
IP Rating
- IP Rating
- 44-IP44
- 67-IP67
Accessory
- Accessory
- nothing
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
- SS00102-05A19027
- SS00102-05A19030
- SS00102-05A19040
- SS00102-07A19027
- SS00102-07A19030
- SS00102-07A19040
- Luminous Flux (LM)
388 LM/m
414 LM/m
417 LM/m
567 LM/m
589 LM/m
603 LM/m
- Power (W)
4.8W/m
4.8W/m
4.8W/m
7.2W/m
7.2W/m
7.2W/m
- Beam Angle
110°
110°
110°
110°
110°
110°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
