LINA-S

LED Strip Light 72 LEDs/M

LINA-S

LED Strip Light 72 LEDs/M

This family features high Ra over 90 and high efficacy up to 82.5lm/W. 3SDCM for standard version.
5 different power options, 2W/M,4.8W/M,7.2W/M,9.6W/M and14.4W/M. Work without extra aluminum profile for heat dissipation.IP44 for standard version, IP67 available on request.

Lighting Effects

Products Specification:
Type:LED Strip Light 72 LEDs/M
Beam Angle:110D
Power:14.4W/M
Weight:0.3kg/roll
CCT:2700K 3000K 4000K
Surface-Treatment:Silica Gel

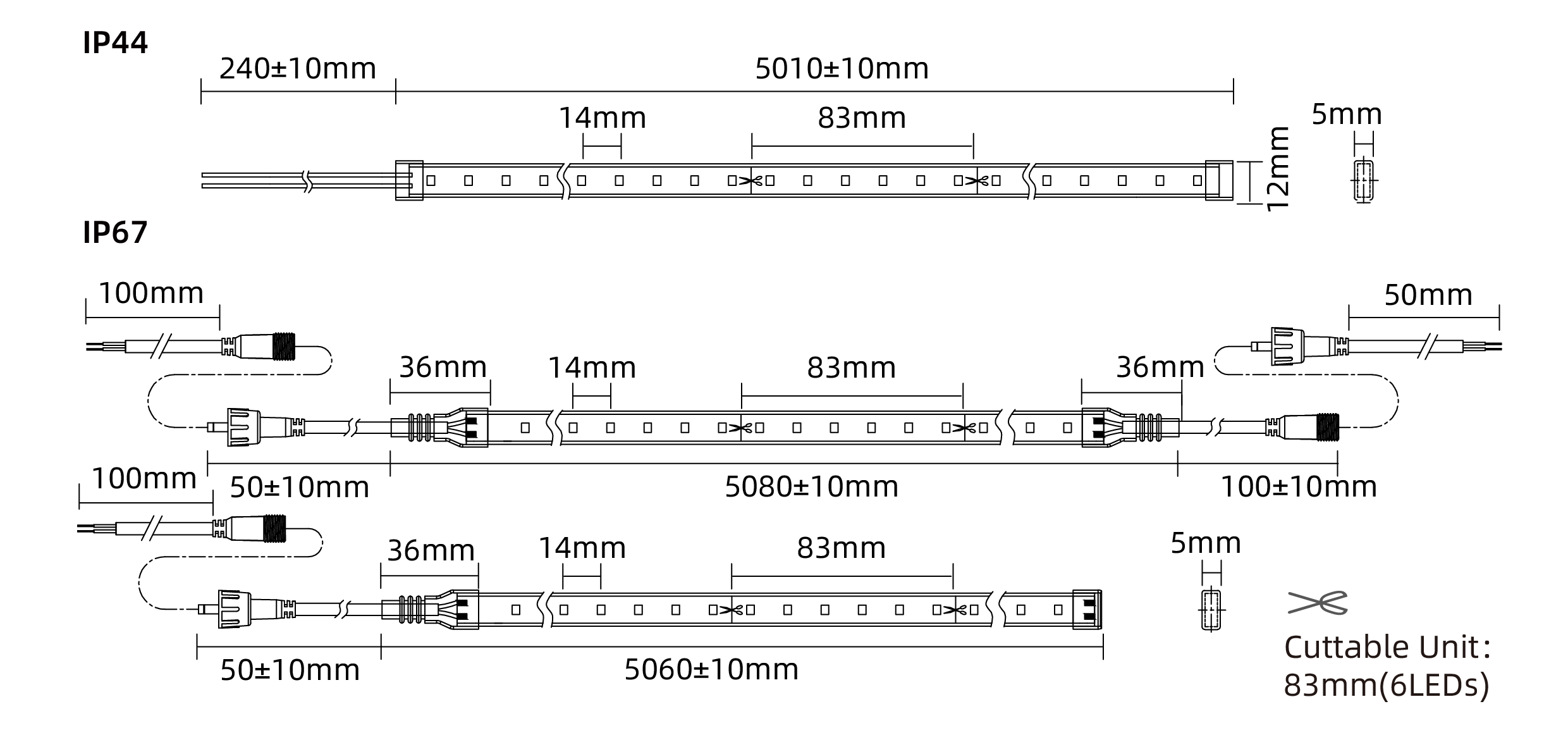

Line Drawing:
General Features:

Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 14.4W/m
Beam Angle
  • Beam Angle
  • 110°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 2700 K
  • 3000 K
  • 4000 K
Dimming type
  • Dimming type
  • 1-Non Dim
  • 2-Phase dimming
  • 3-0-10V dimming
  • 4-DALI dimming
  • 5-DMX512
  • 6-Bluetooth
Finish
  • Finish
  • 01-White
Reflector
  • Reflector
  • N/A
IP Rating
  • IP Rating
  • 44-IP44
  • 67-IP67
Accessory
  • Accessory
  • N/A
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No
SS00104-14A19027
SS00104-14A19030
SS00104-14A19040
Luminous Flux (LM)

1074LM/m

1160LM/m

1266LM/m

Power (W)

14.4W/m

14.4W/m

14.4W/m

Beam Angle

110°

110°

110°

CRI

Ra>90

Ra>90

Ra>90

Color

2700 K

3000 K

4000 K

Specification
IES
DWG
manual
Favorite
