LINA-S
10mm Naked LED High Efficiency Strip 140LEDs/M
LINA-S
Lighting Effects
- Products Specification:
- Type:10mm Naked LED High Efficiency Strip 140LEDs/M
- Beam Angle:110D
- Power:4.8W/m 6W/m 7.2W/m 9.6W/m 12W/m 14.4W/m 18W/m
- CCT:2700K 3000K 4000K
- Weight:0.012 kg /roll
- PCB Width:10mm

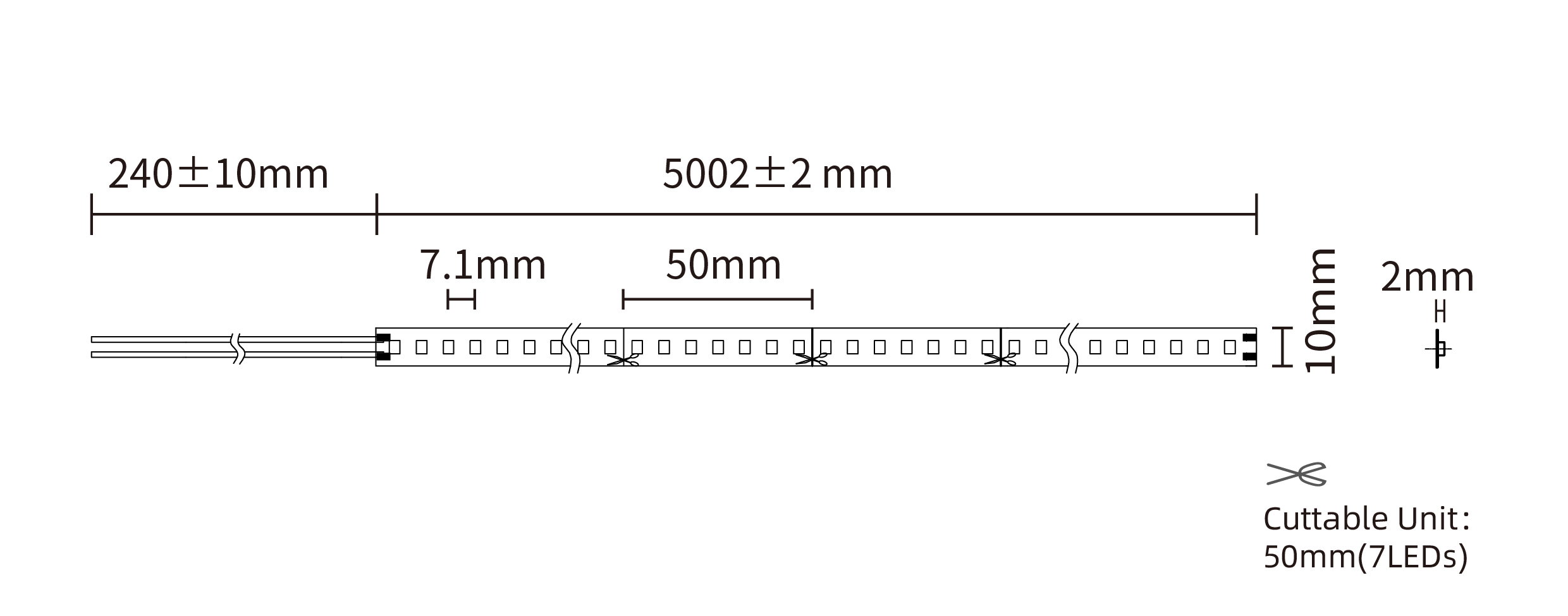

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 4.8W/m
- 6W/m
- 7.2W/m
- 9.6W/m
- 12W/m
- 14.4W/m
- 18W/m
- Beam Angle
- 110°
- CRI
- Ra≥90 R9≥50
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
- 6-Bluetooth
- Finish
- Reflector
- IP Rating
- 20-IP20
- Accessory
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
- SS00215-4.8A19027
- SS00215-4.8A19030
- SS00215-4.8A19040
- SS00215-06A19027
- SS00215-06A19030
- SS00215-06A19040
- SS00215-7.2A19027
- SS00215-7.2A19030
- SS00215-7.2A19040
- SS00215-9.6A19027
- SS00215-9.6A19030
- SS00215-9.6A19040
- SS00215-12A19027
- SS00215-12A19030
- SS00215-12A19040
- SS00215-14.4A19027
- SS00215-14.4A19030
- SS00215-14.4A19040
- SS00215-18A19027
- SS00215-18A19030
- SS00215-18A19040
- Luminous Flux (LM)
700LM/m
736LM/m
773LM/m
912LM/m
960LM/m
1008LM/m
1070LM/m
1126LM/m
1183LM/m
1443LM/m
1519LM/m
1595LM/m
1582LM/m
1665LM/m
1748LM/m
2051LM/m
2159LM/m
2267LM/m
2443LM/m
2572LM/m
2701LM/m
- Power (W)
4.8W/m
4.8W/m
4.8W/m
6W/m
6W/m
6W/m
7.2W/m
7.2W/m
7.2W/m
9.6W/m
9.6W/m
9.6W/m
12W/m
12W/m
12W/m
14.4W/m
14.4W/m
14.4W/m
18W/m
18W/m
18W/m
- Beam Angle
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
110°
- CRI
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
Ra≥90 R9≥50
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Specification
- IES
- DWG
- manual
- Favorite
