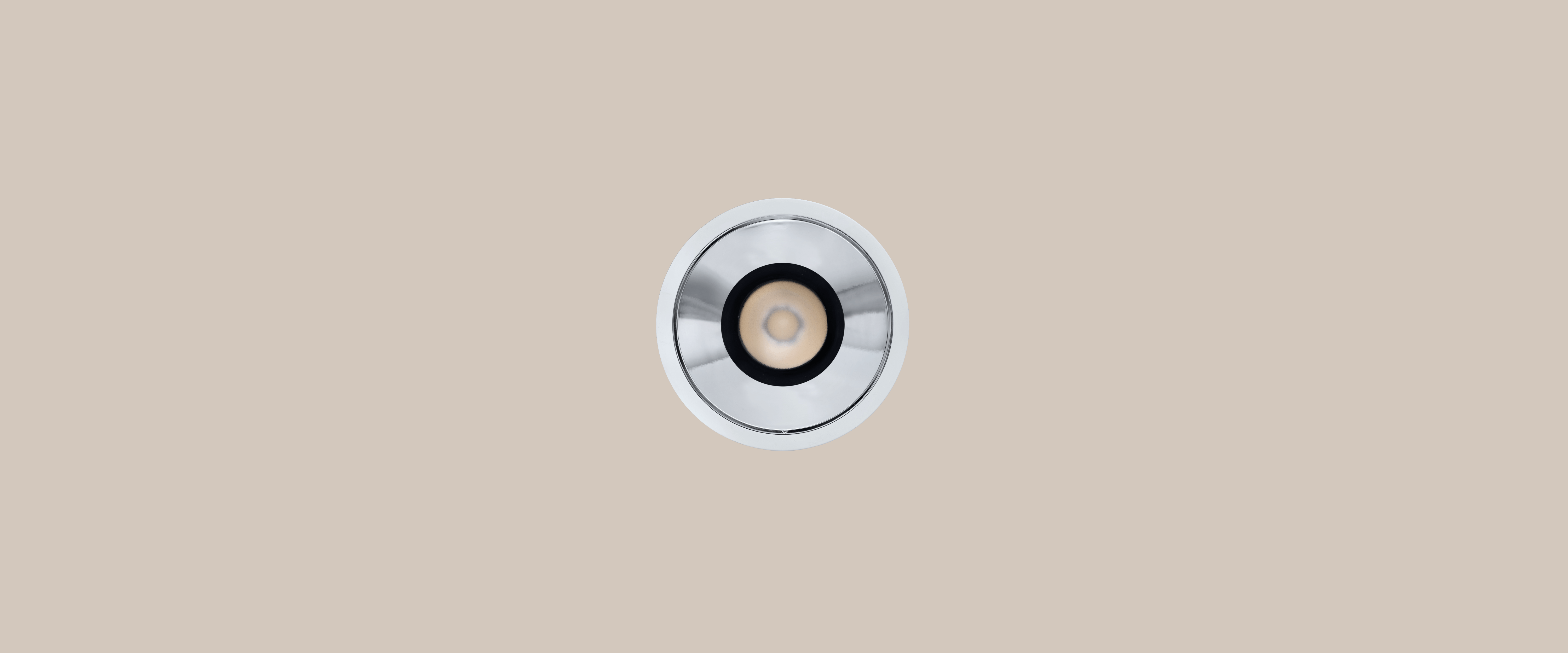

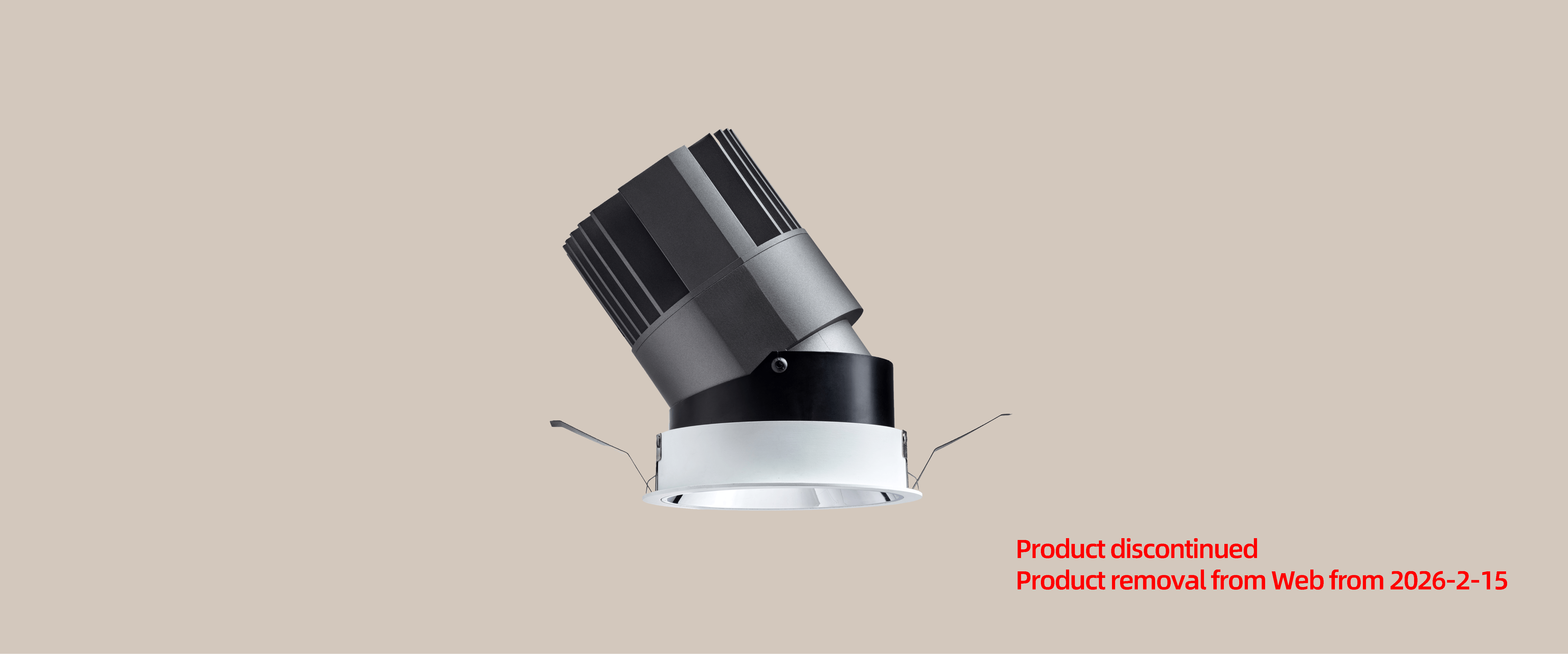

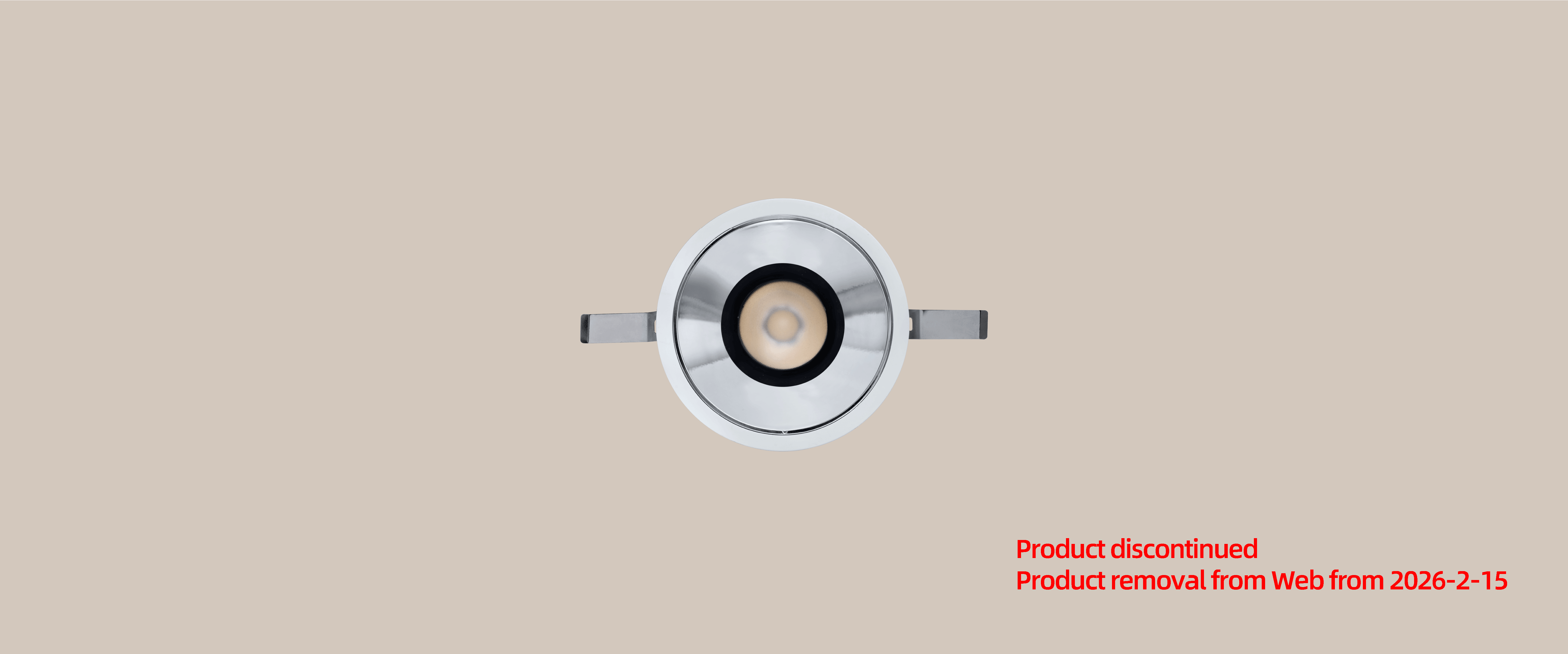

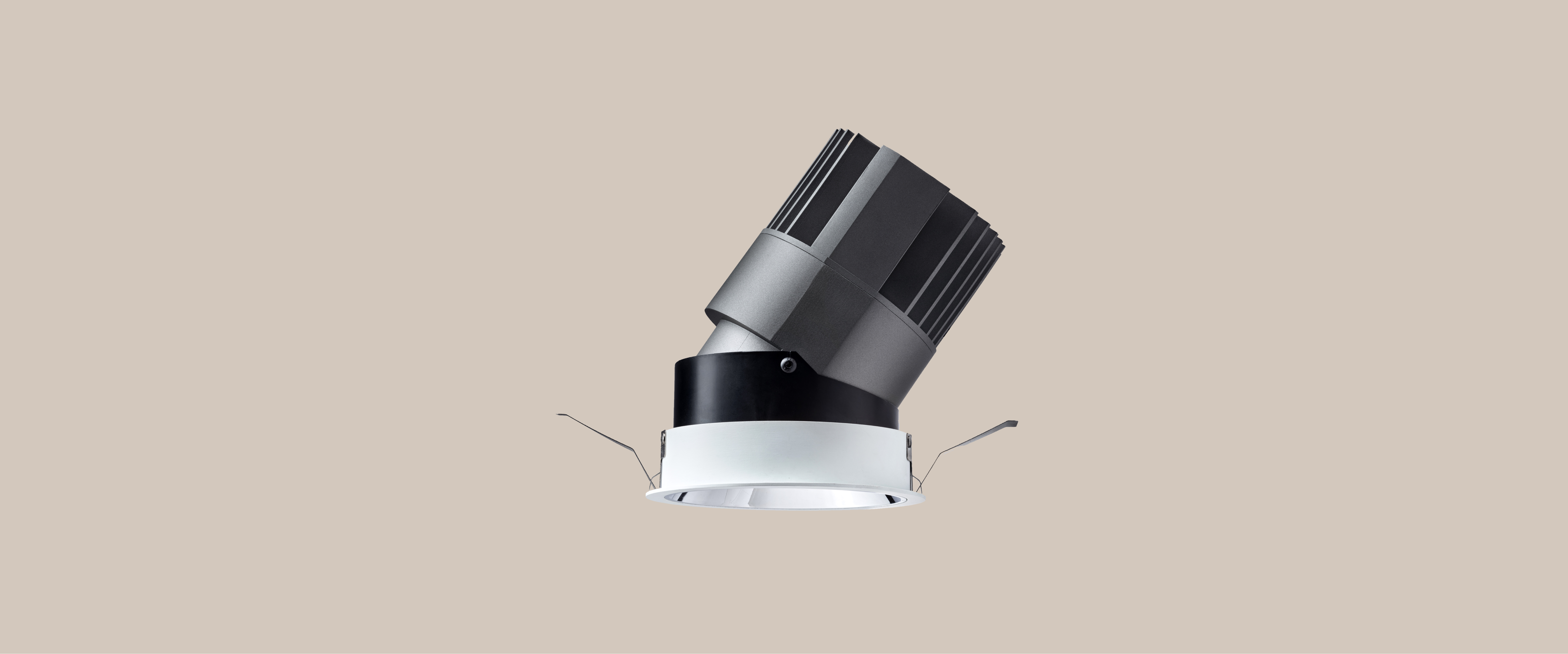

ALPS 125

Adjustable Recessed Downlight

ALPS 125

Wisdom of european and chinese coopration.

ALPS 125

Wisdom of european and chinese coopration.

As a part of space lighting, ambient lighting is a basic lighting, but the requirements are still very high. It need not only high efficiency and the comfortable low glare light, but also to achieve an even and soft high quality output of light under the circumstance of wide grading, which requests strictly to the integral design of lamps. Alps is a joint developed products between VF R&D team and European lighting experts, providing the best choice for ambient lighting.

The rapid installation screw of selfadaption to ceiling thickness protects the structure of ceiling and provides convenience for later maintenance. Alps has achieved good harmony and unity in terms of lamp efficiency, light quality, visual comfort, lighting installation and maintenance, and industrial design. It is a model for the new technology of basic lighting fixtures.

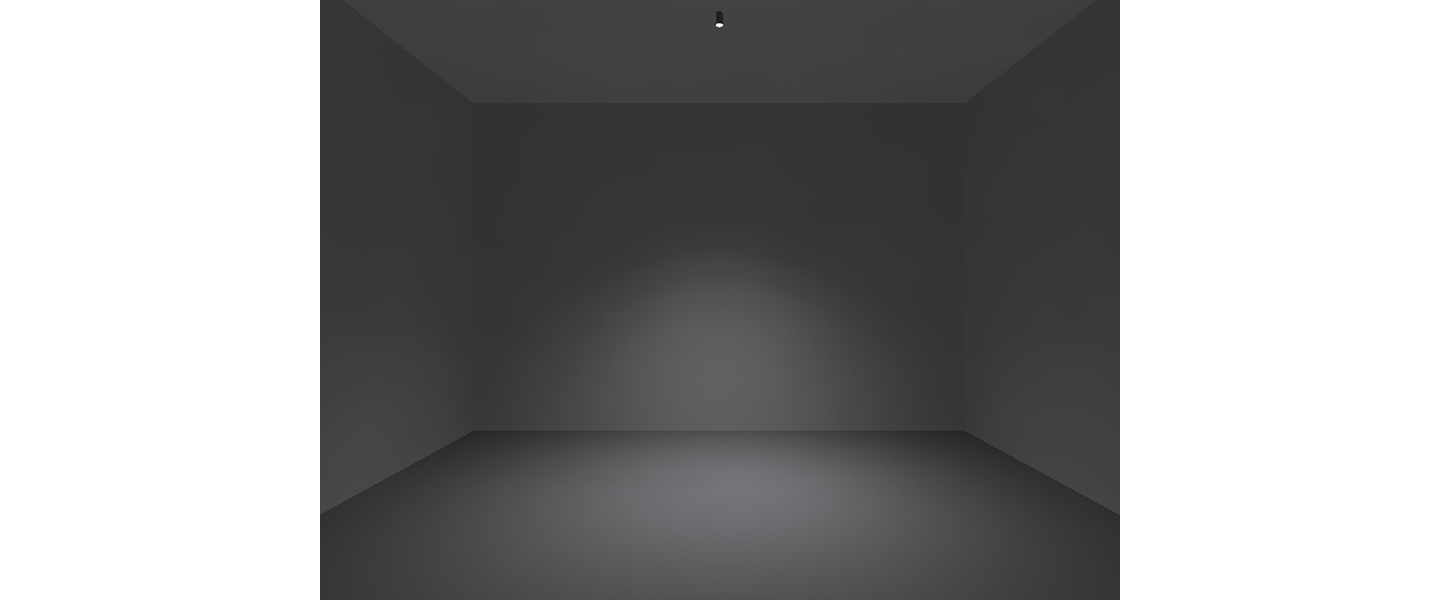

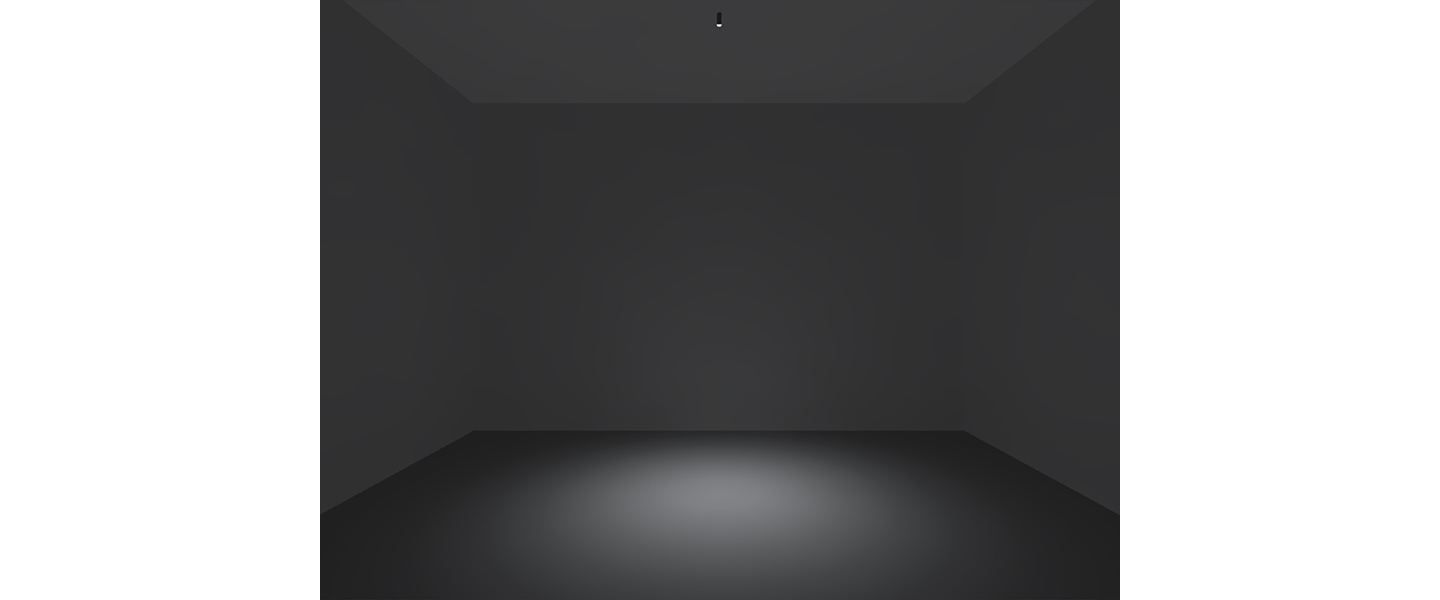

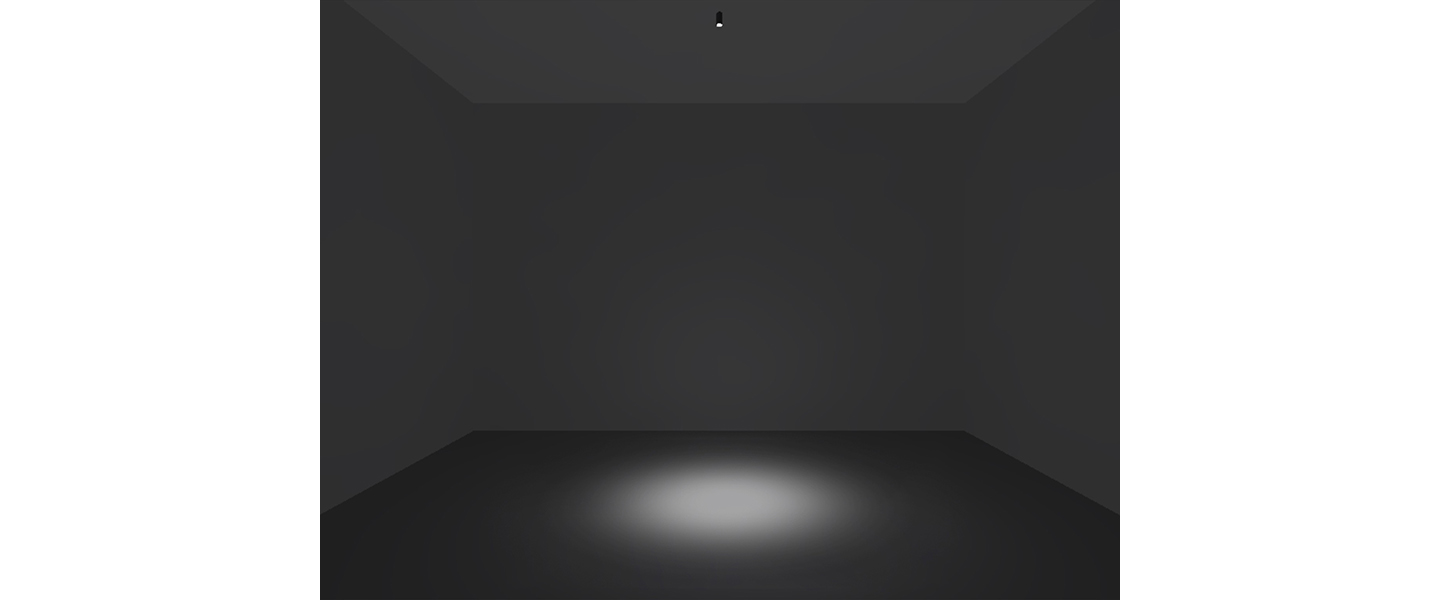

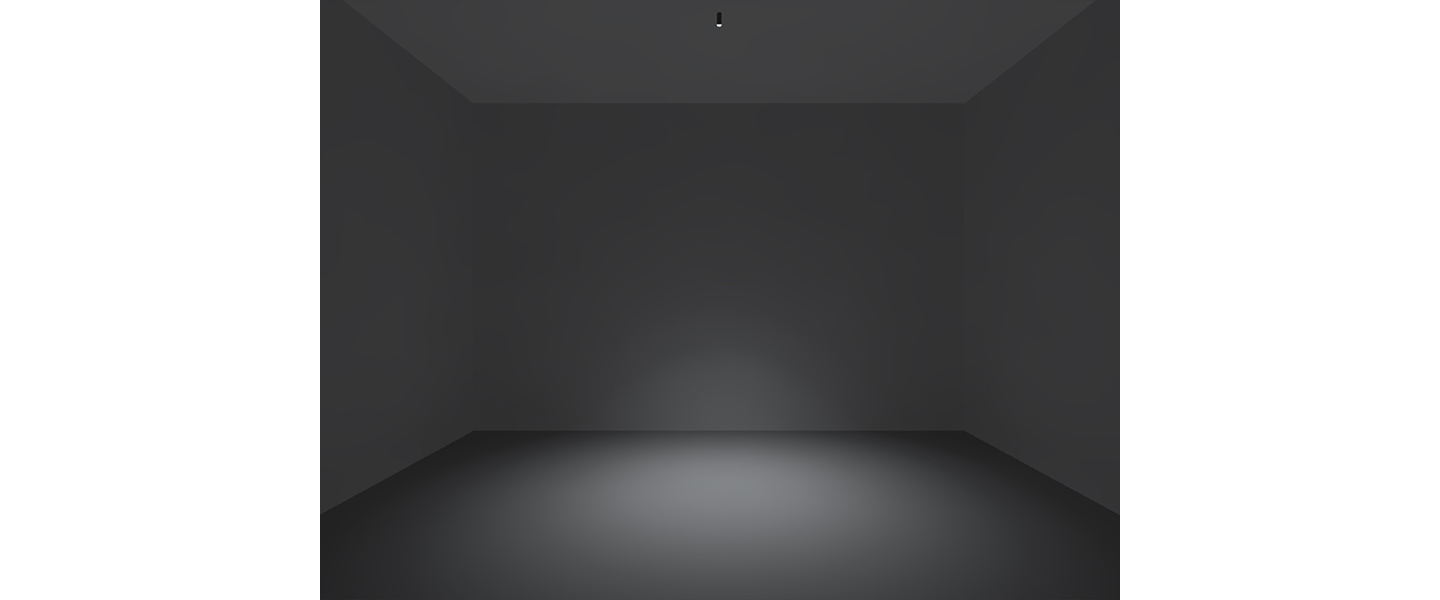

Lighting Effects

Products Specification:: Type:Adjustable Recessed Downlight; Cut-Out:ø 125 mm; Beam Angle:11D 15D 28D 38D 55D; Power:20W 25W 28W 30W 40W; Weight:0.95kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
20W
25W
28W
30W
40W

Beam Angle

Beam Angle
11°
15°
28°
38°
55°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
02-Black
01-White

Reflector

Reflector
Mirror
Black
White
Black chromium plating

IP Rating

IP Rating
20-IP20

Accessory

Accessory
1-Honeycomb louver
4-Linear lens
6-Soft lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR01106-20119027; DR01106-20119030; DR01106-20119040; DR01106-20159027; DR01106-20159030; DR01106-20159040; DR01106-20289027; DR01106-20289030; DR01106-20289040; DR01106-20389027; DR01106-20389030; DR01106-20389040; DR01106-20559027; DR01106-20559030; DR01106-20559040; DR01106-25119027; DR01106-25119030; DR01106-25119040; DR01106-28159027; DR01106-28159030; DR01106-28159040; DR01106-28289027; DR01106-28289030; DR01106-28289040; DR01106-28389027; DR01106-28389030; DR01106-28389040; DR01106-28559027; DR01106-28559030; DR01106-28559040; DR01106-30119027; DR01106-30119030; DR01106-30119040; DR01106-40159027; DR01106-40159030; DR01106-40159040; DR01106-40289027; DR01106-40289030; DR01106-40289040; DR01106-40389027; DR01106-40389030; DR01106-40389040; DR01106-40559027; DR01106-40559030; DR01106-40559040

Luminous Flux (LM): 901LM; 948LM; 996LM; 1027LM; 1081LM; 1279LM; 1441LM; 1517LM; 1653LM; 1446LM; 1522LM; 1646LM; 1393LM; 1467LM; 1533LM; 1047LM; 1102LM; 1157LM; 1344LM; 1415LM; 1693LM; 1988LM; 2093LM; 2313LM; 2003LM; 2108LM; 2303LM; 1922LM; 2023LM; 2107LM; 1189LM; 1252LM; 1314LM; 1628LM; 1714LM; 2114LM; 2615LM; 2753LM; 3128LM; 2673LM; 2813LM; 3009LM; 2519LM; 2652LM; 2754LM

Power (W): 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 25W; 25W; 25W; 28W; 28W; 28W; 28W; 28W; 28W; 28W; 28W; 28W; 28W; 28W; 28W; 30W; 30W; 30W; 40W; 40W; 40W; 40W; 40W; 40W; 40W; 40W; 40W; 40W; 40W; 40W

Beam Angle: 11°; 11°; 11°; 15°; 15°; 15°; 28°; 28°; 28°; 38°; 38°; 38°; 55°; 55°; 55°; 11°; 11°; 11°; 15°; 15°; 15°; 28°; 28°; 28°; 38°; 38°; 38°; 55°; 55°; 55°; 11°; 11°; 11°; 15°; 15°; 15°; 28°; 28°; 28°; 38°; 38°; 38°; 55°; 55°; 55°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
