POYO 220

Surface-mounted Downlight

POYO 220

Looking forward to being shining like the jade is waiting for carving

POYO 220

Looking forward to being shining like the jade is waiting for carving

POYO 220

Looking forward to being shining like the jade is waiting for carving

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

Lighting Effects

Products Specification:: Type:Surface-mounted Downlight; Power:60W 70W 80W; Beam Angle:35°; Weight:6.15kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:powder coating

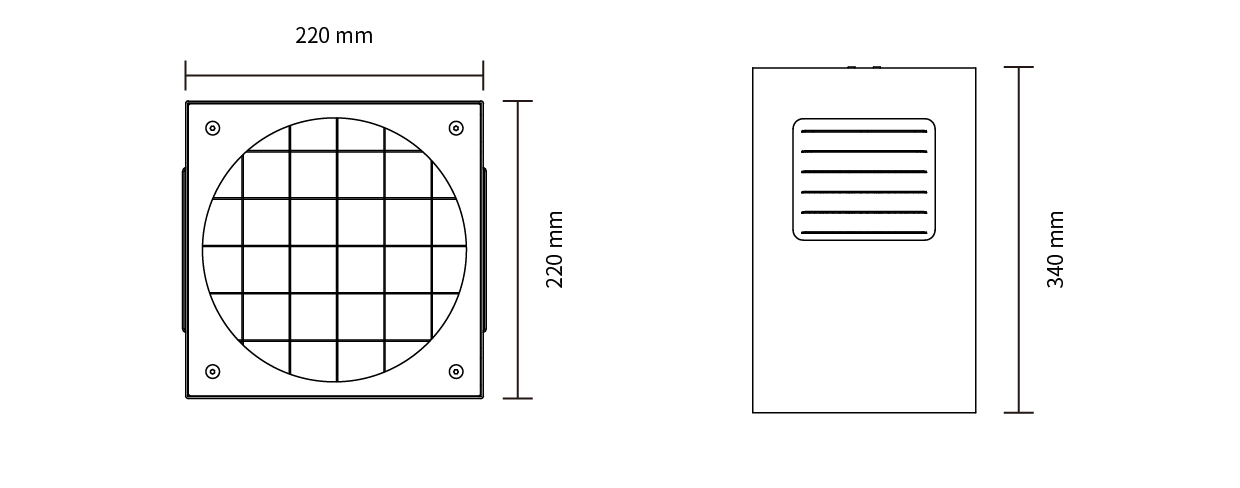

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
60W
70W
80W

Beam Angle

Beam Angle
35°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Grey
Black

Reflector

Reflector
Black chromium plating

IP Rating

IP Rating
54-IP54

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DS02004-60359027; DS02004-60359030; DS02004-60359040; DS02004-70359027; DS02004-70359030; DS02004-70359040; DS02004-80359027; DS02004-80359030; DS02004-80359040
