Home Products Outdoor ASTA 60 - Linear In-Ground Light

ASTA 60

Linear In-Ground Light

ASTA 60

Linear In-ground Light

ASTA 60

Linear In-ground Light

ASTA 60

Linear In-ground Light

ASTA 60

Linear In-ground Light

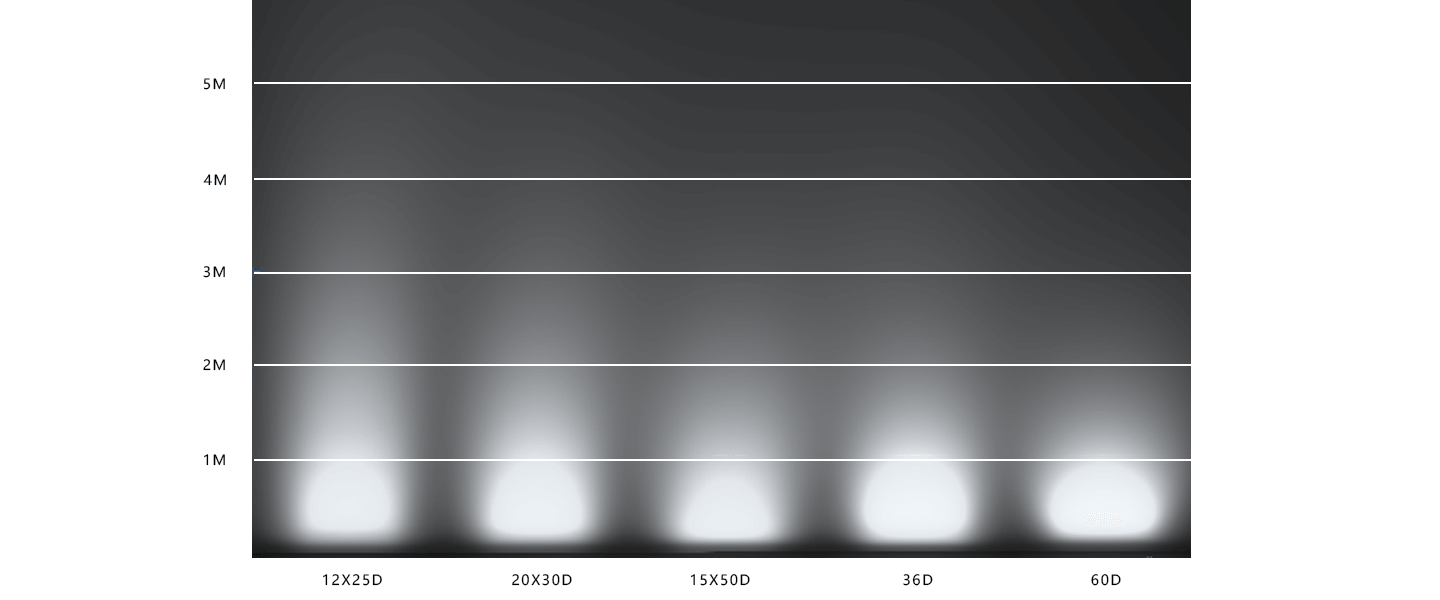

Lighting Effects

Products Specification:: Type:Linear In-Ground Light; Beam Angle:12x25D 20x30D 15x50D 36D 60D; Power:24W 36W 48W; Dimension:1000*60*81mm; Embedded Part Dimension:1002*67*96mm; Weight:8.9kg; Heat-Sink:Aluminum; Surface-Treatment:Plating; CCT:2700K 3000K 4000K

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
3W
24W
36W
48W

Beam Angle

Beam Angle
diffuser
12X25°
15X50°
20X30°
36°
60°

CRI

CRI
>80

Color

Color
2700K
3000K
4000K

Control

Control
ON/OFF/DALI/DMX512

Dimming type

Dimming type
1-Non Dim
4-DALI dimming
5-DMX512

Finish

Finish
A3-Stainless

Reflector

Reflector
N/A

IP Rating

IP Rating
67-IP67

Accessory

Accessory
B-sea gull louver
C-Crescent Louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: BB00209-03008027; BB00209-03008030; BB00209-03008040; BB00209-2415258027; BB00209-2420508027; BB00209-2415508027; BB00209-24368027; BB00209-24608027; BB00209-2415258030; BB00209-2420508030; BB00209-2415508030; BB00209-24368030; BB00209-24608030; BB00209-2415258040; BB00209-2420508040; BB00209-2415508040; BB00209-24368040; BB00209-24608040; BB00209-3615258027; BB00209-3620508027; BB00209-3615508027; BB00209-36368027; BB00209-36608027; BB00209-3615258030; BB00209-3620508030; BB00209-3615508030; BB00209-36368030; BB00209-36608030; BB00209-3615258040; BB00209-3620508040; BB00209-3615508040; BB00209-36368040; BB00209-36608040; BB00209-4815258027; BB00209-4820508027; BB00209-4815508027; BB00209-48368027; BB00209-48608027; BB00209-4815258030; BB00209-4820508030; BB00209-4815508030; BB00209-48368030; BB00209-48608030; BB00209-4815258040; BB00209-4820508040; BB00209-4815508040; BB00209-48368040; BB00209-48608040

Luminous Flux (LM): 85LM; 88LM; 95LM; 2216LM; 2488LM; 2256LM; 2225LM; 2236LM; 2285LM; 2565LM; 2326LM; 2294LM; 2305LM; 2731LM; 2839LM; 2533LM; 2564LM; 2641LM; 3340LM; 3339LM; 3108LM; 3096LM; 2860LM; 3444LM; 3442LM; 3204LM; 3192LM; 2948LM; 3712LM; 3858LM; 3473LM; 3467LM; 3617LM; 4109LM; 4198LM; 3832LM; 3840LM; 3758LM; 4237LM; 4328LM; 3951LM; 3959LM; 3874LM; 4440LM; 4608LM; 4031LM; 4142LM; 4224LM

Power (W): 3W; 3W; 3W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 24W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 48W; 48W; 48W; 48W; 48W; 48W; 48W; 48W; 48W; 48W; 48W; 48W; 48W; 48W; 48W

Beam Angle: diffuser; diffuser; diffuser; 12X25°; 20X30°; 15X50°; 36°; 60°; 12X25°; 20X30°; 15X50°; 36°; 60°; 12X25°; 20X30°; 15X50°; 36°; 60°; 12X25°; 20X30°; 15X50°; 36°; 60°; 12X25°; 20X30°; 15X50°; 36°; 60°; 12X25°; 20X30°; 15X50°; 36°; 60°; 12X25°; 20X30°; 15X50°; 36°; 60°; 12X25°; 20X30°; 15X50°; 36°; 60°; 12X25°; 20X30°; 15X50°; 36°; 60°

CRI: >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80

Color: 2700K; 3000K; 4000K; 2700K; 2700K; 2700K; 2700K; 2700K; 3000K; 3000K; 3000K; 3000K; 3000K; 4000K; 4000K; 4000K; 4000K; 4000K; 2700K; 2700K; 2700K; 2700K; 2700K; 3000K; 3000K; 3000K; 3000K; 3000K; 4000K; 4000K; 4000K; 4000K; 4000K; 2700K; 2700K; 2700K; 2700K; 2700K; 3000K; 3000K; 3000K; 3000K; 3000K; 4000K; 4000K; 4000K; 4000K; 4000K

Control: ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512

Specification

IES

DWG

manual

Favorite

Application
