GLEAM 50
Recessed slot hole Foot Light
GLEAM 50
Gleams of light at night.
Five types of light hole design with replaceable square /round cap make creative light shape and uniform light effect. Small and elegant，hidden light point，integrated with building. Integrated low voltage photovoltaic modules supplied power easily. It is safty for using in wet areas.
Lighting Effects
- Products Specification:
- Type:Recessed slot hole Foot Light
- Cut-Out:ø 50 mm
- Power:1W 3W
- CCT:2700K 3000K 4000K
- Weight:0.08kg
- Heat-Sink:Die-casting Aluminum
- Surface-Treatment:Plating
- Remarks:ø55 mm for fixture with embedded parts

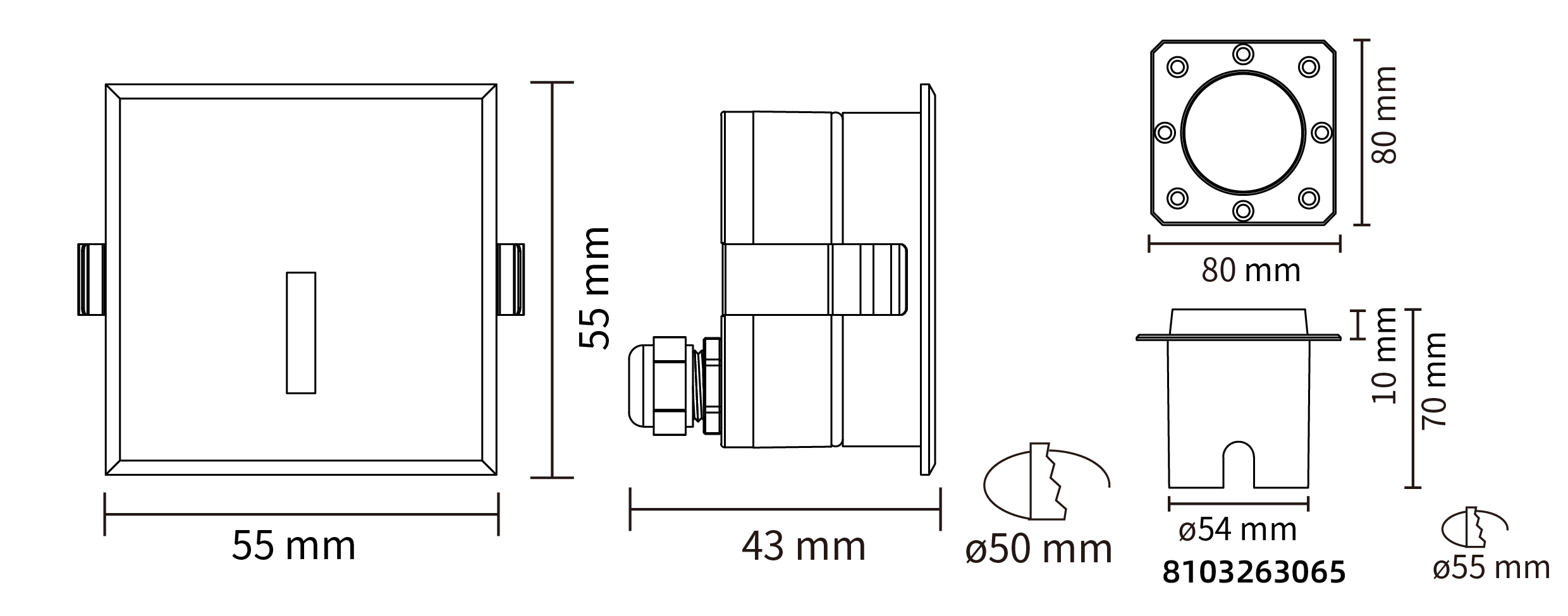

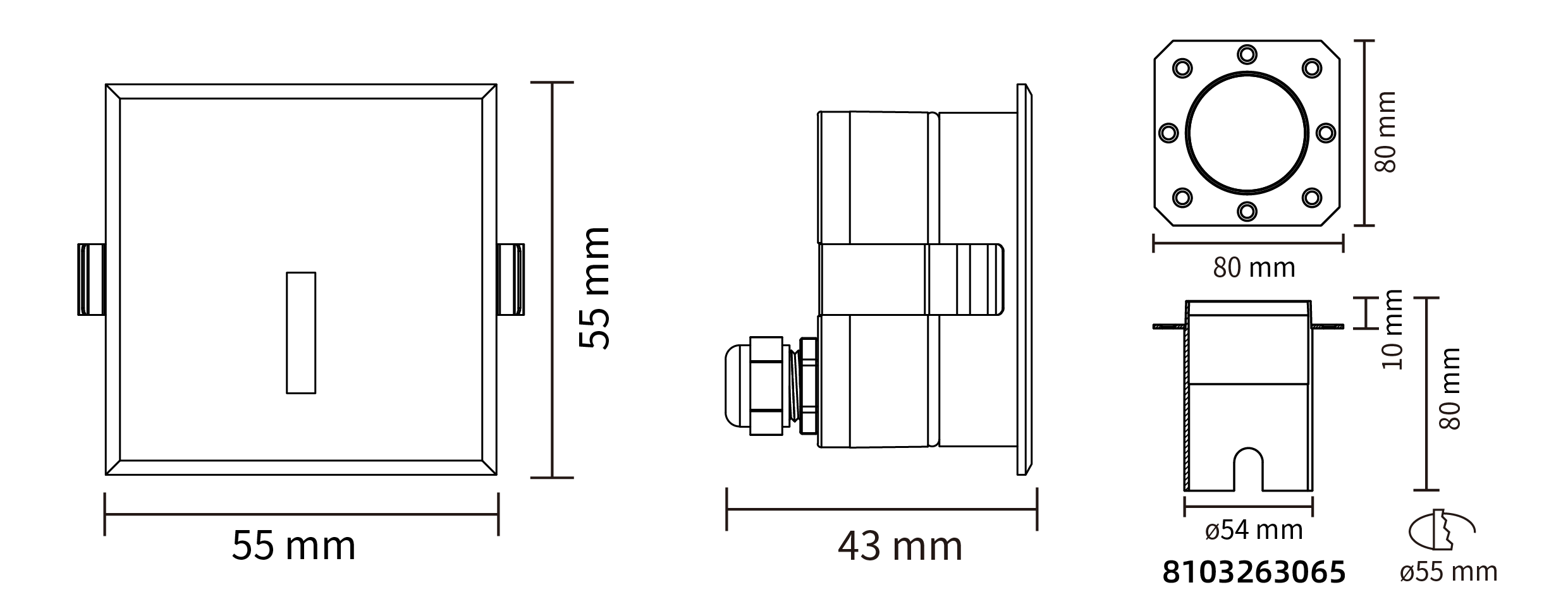

- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 1 W
- 3 W
Beam Angle- Beam Angle
- 18X45°
CRI- CRI
- Ra>80
Color- Color
- 2700 K
- 3000 K
- 4000 K
Control- Control
Dimming type- Dimming type
- 1-Non Dim
Finish- Finish
- 92-Outdoor white
- 93-Outdoor black
- 94-Outdoor grey
Reflector- Reflector
- nothing
IP Rating- IP Rating
- 65-IP65
Accessory- Accessory
- nothing
Power(W)
- Power(W)
- 1 W
- 3 W
Beam Angle
- Beam Angle
- 18X45°
CRI
- CRI
- Ra>80
Color
- Color
- 2700 K
- 3000 K
- 4000 K
Control
- Control
Dimming type
- Dimming type
- 1-Non Dim
Finish
- Finish
- 92-Outdoor white
- 93-Outdoor black
- 94-Outdoor grey
Reflector
- Reflector
- nothing
IP Rating
- IP Rating
- 65-IP65
Accessory
- Accessory
- nothing
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
DR00601-01XX8027
DR00601-01XX8030
DR00601-01XX8040
DR00601-03XX8027
DR00601-03XX8030
DR00601-03XX8040
- Luminous Flux (LM)
1LM
1LM
1LM
2LM
2LM
2LM
- Power (W)
1 W
1 W
1 W
3 W
3 W
3 W
- Beam Angle
18X45°
18X45°
18X45°
18X45°
18X45°
18X45°
- CRI
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
- Color
2700 K
3000 K
4000 K
2700 K
3000 K
4000 K
- Control
