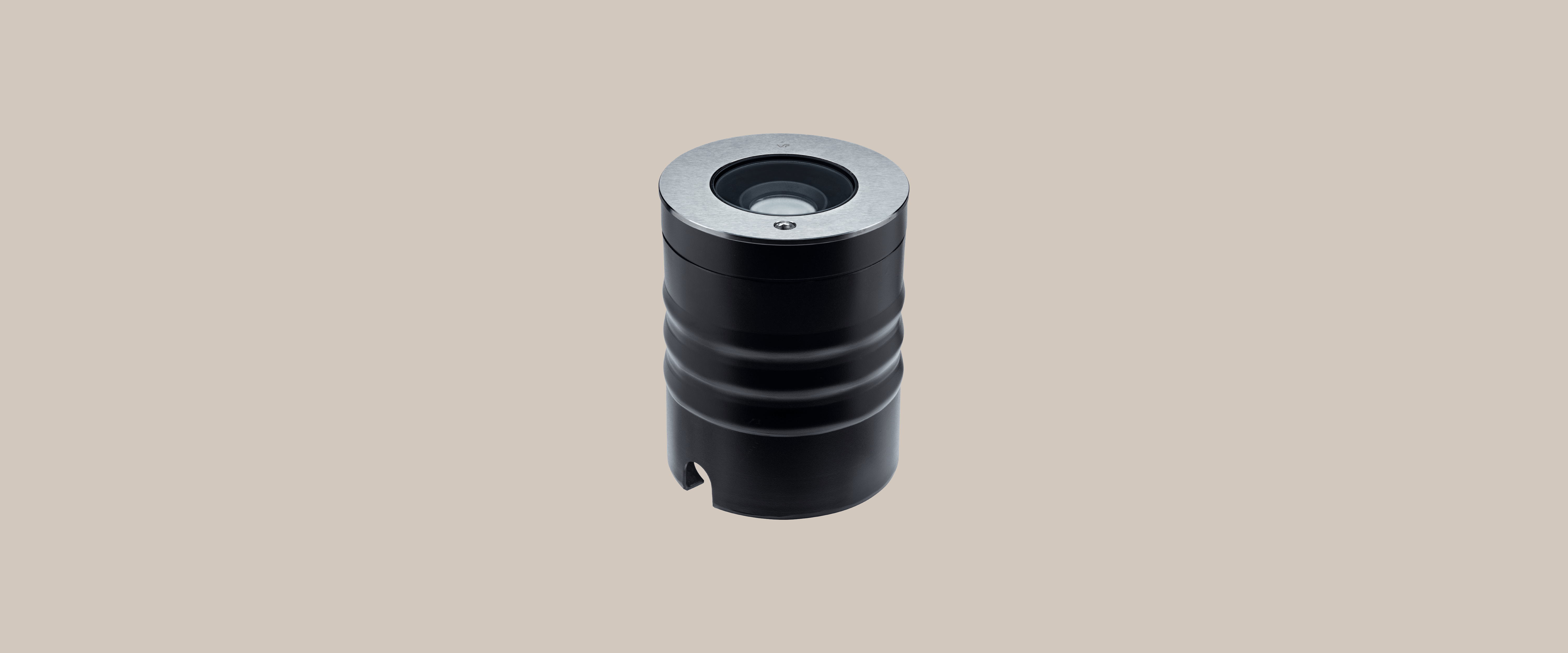

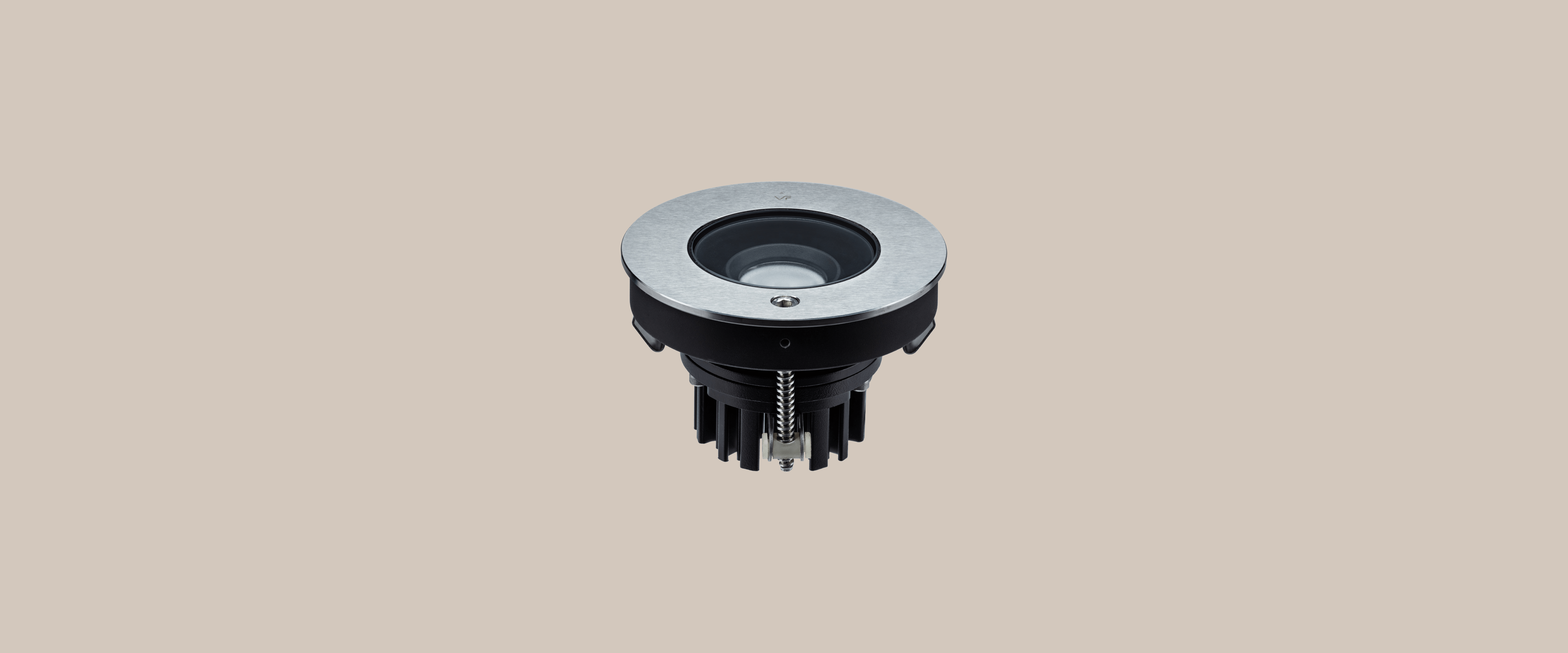

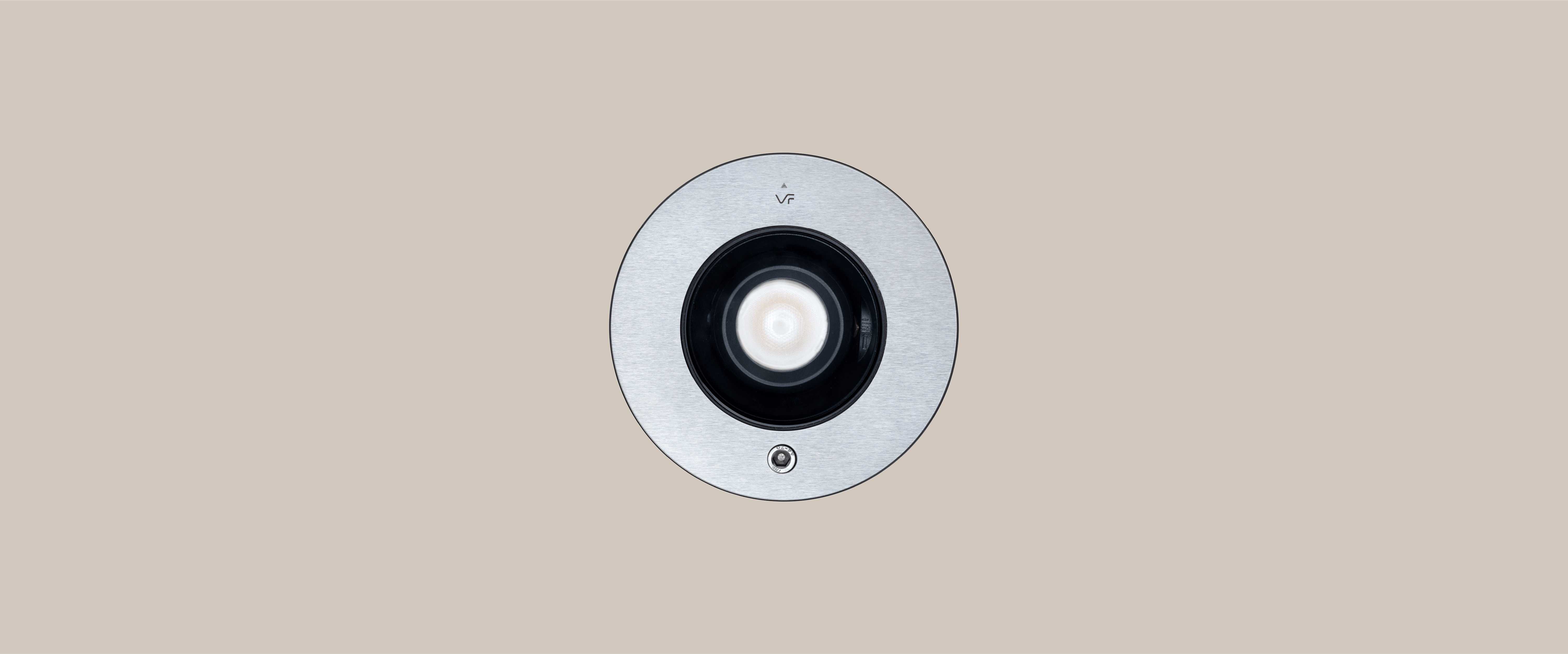

ASTA 138
Narrow Trim Adjustable-Round In-Ground Light
ASTA 138
Narrow Trim Adjustable-Round In-ground Light
ASTA 138
Narrow Trim Adjustable-Round In-ground Light
ASTA 138
Narrow Trim Adjustable-Round In-ground Light

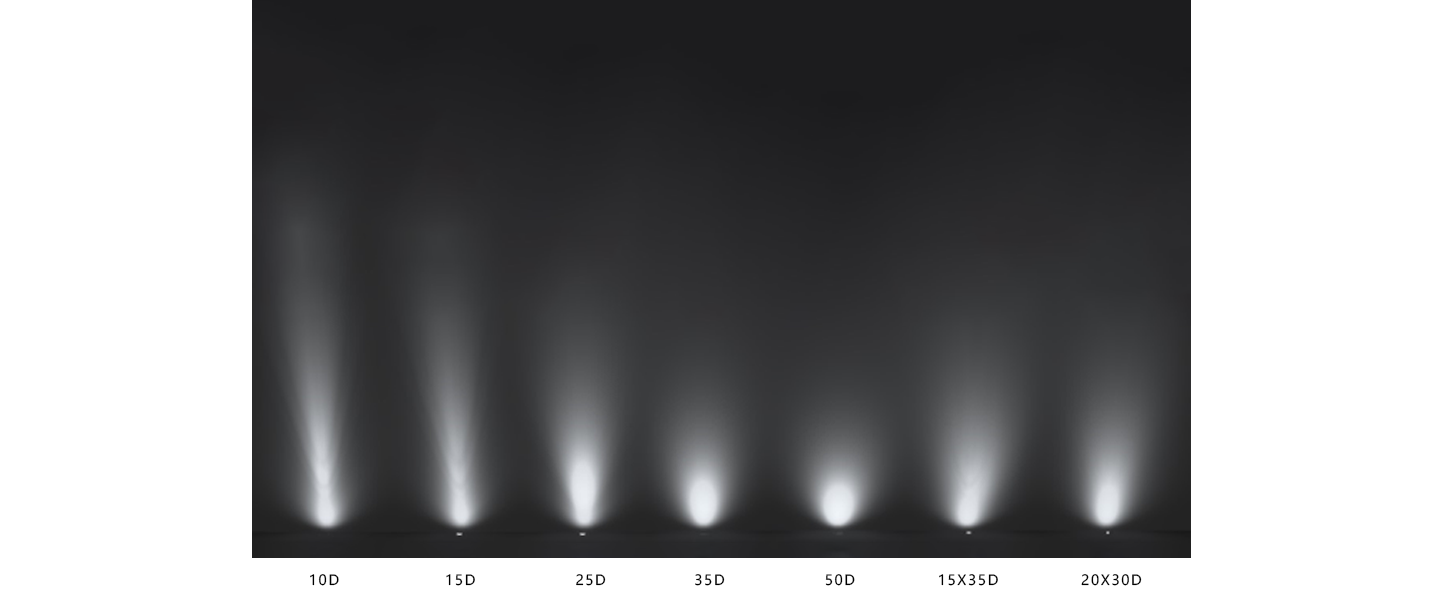

Lighting Effects
- Products Specification:
- Type:Narrow Trim Adjustable-Round In-ground Light
- Beam Angle:10D 15D 25D 35D 50D 15X25D 20X30D
- Power:7W
- Dimension:φ138*89mm
- Embedded Part Dimension:φ138*180mm
- Weight:1.7kg
- Heat-Sink:Aluminum
- Surface-Treatment:Plating
- CCT:2700K 3000K 4000K

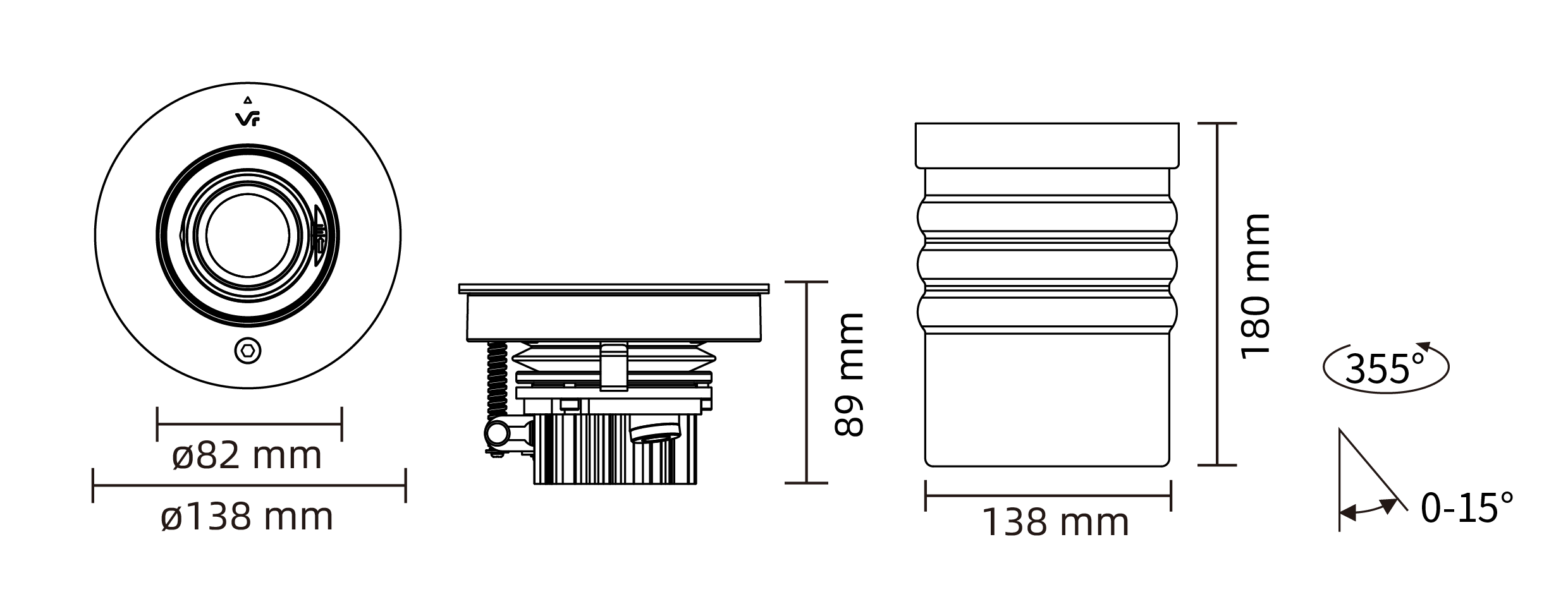

- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 7W
Beam Angle- Beam Angle
- 10°
- 15X35°
- 15°
- 20X30°
- 25°
- 35°
- 50°
CRI- CRI
- >80
Color- Color
- 2700K
- 3000K
- 4000K
Control- Control
- ON/OFF/DALI/DMX512
Dimming type- Dimming type
- 1-Non Dim
- 4-DALI dimming
- 5-DMX512
Finish- Finish
- A3-Stainless
Reflector- Reflector
- N/A
IP Rating- IP Rating
- 67-IP67
Accessory- Accessory
- 1-Honeycomb louver
- Power(W)
- 7W
- Beam Angle
- 10°
- 15X35°
- 15°
- 20X30°
- 25°
- 35°
- 50°
- CRI
- >80
- Color
- 2700K
- 3000K
- 4000K
- Control
- ON/OFF/DALI/DMX512
- Dimming type
- 1-Non Dim
- 4-DALI dimming
- 5-DMX512
- Finish
- A3-Stainless
- Reflector
- N/A
- IP Rating
- 67-IP67
- Accessory
- 1-Honeycomb louver
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
BB00205-00010827
BB00205-00015827
BB00205-00025827
BB00205-00035827
BB00205-00050827
BB00205-01535827
BB00205-02030827
BB00205-00010830
BB00205-00015830
BB00205-00025830
BB00205-00035830
BB00205-00050830
BB00205-01535830
BB00205-02030830
BB00205-00010840
BB00205-00015840
BB00205-00025840
BB00205-00035840
BB00205-00050840
BB00205-01535840
BB00205-02030840
- Luminous Flux (LM)
389LM
405LM
406LM
379LM
355LM
362LM
340LM
401LM
418LM
419LM
391LM
366LM
373LM
351LM
422LM
440LM
441LM
412LM
385LM
393LM
369LM
- Power (W)
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
- Beam Angle
10°
15°
25°
35°
50°
15X35°
20X30°
10°
15°
25°
35°
50°
15X35°
20X30°
10°
15°
25°
35°
50°
15X35°
20X30°
- CRI
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
- Color
2700K
2700K
2700K
2700K
2700K
2700K
2700K
3000K
3000K
3000K
3000K
3000K
3000K
3000K
4000K
4000K
4000K
4000K
4000K
4000K
4000K
- Control
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
