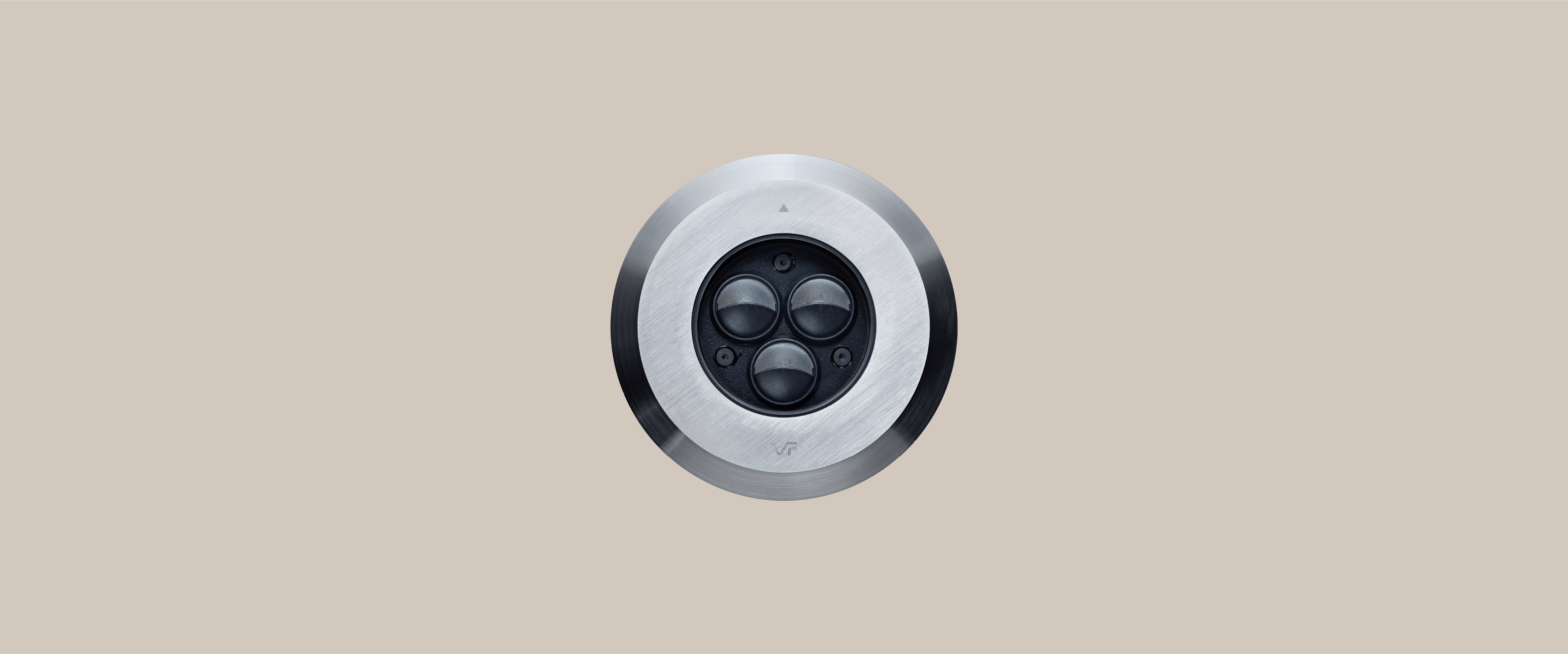

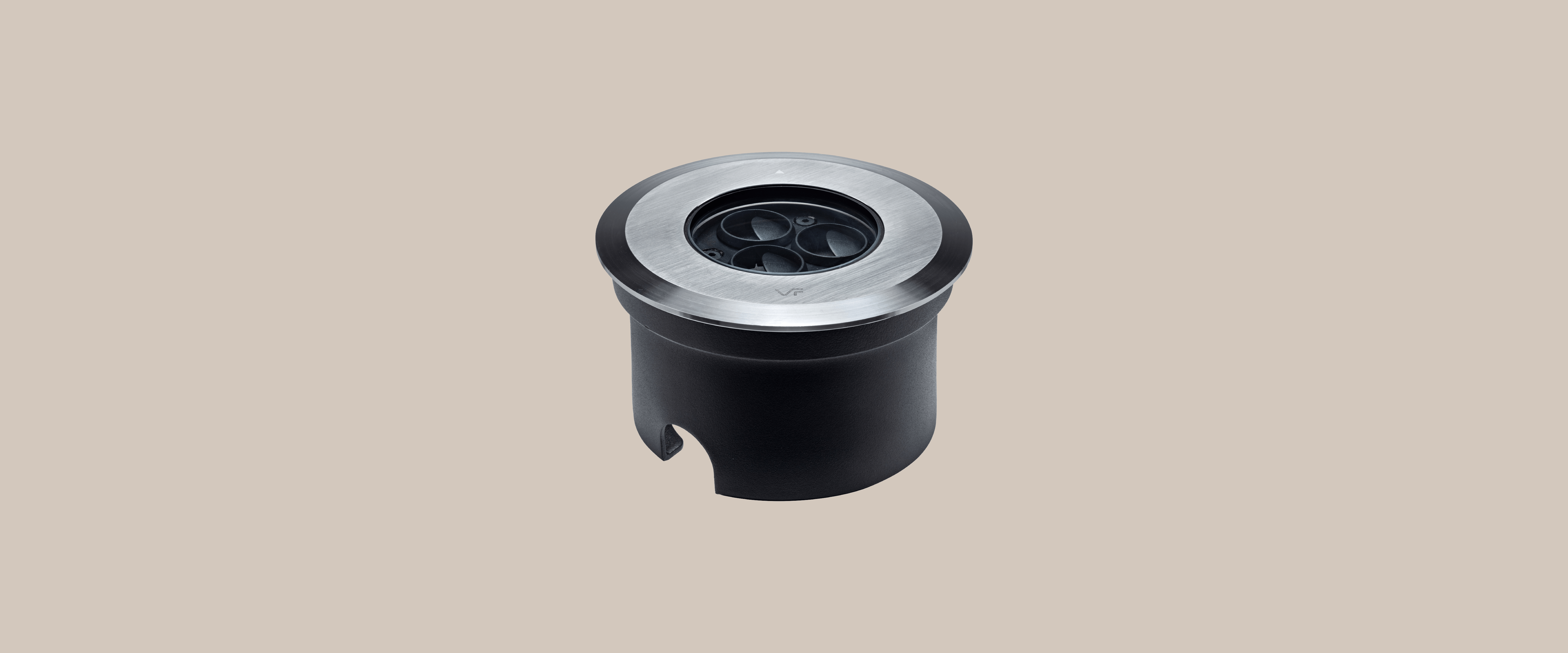

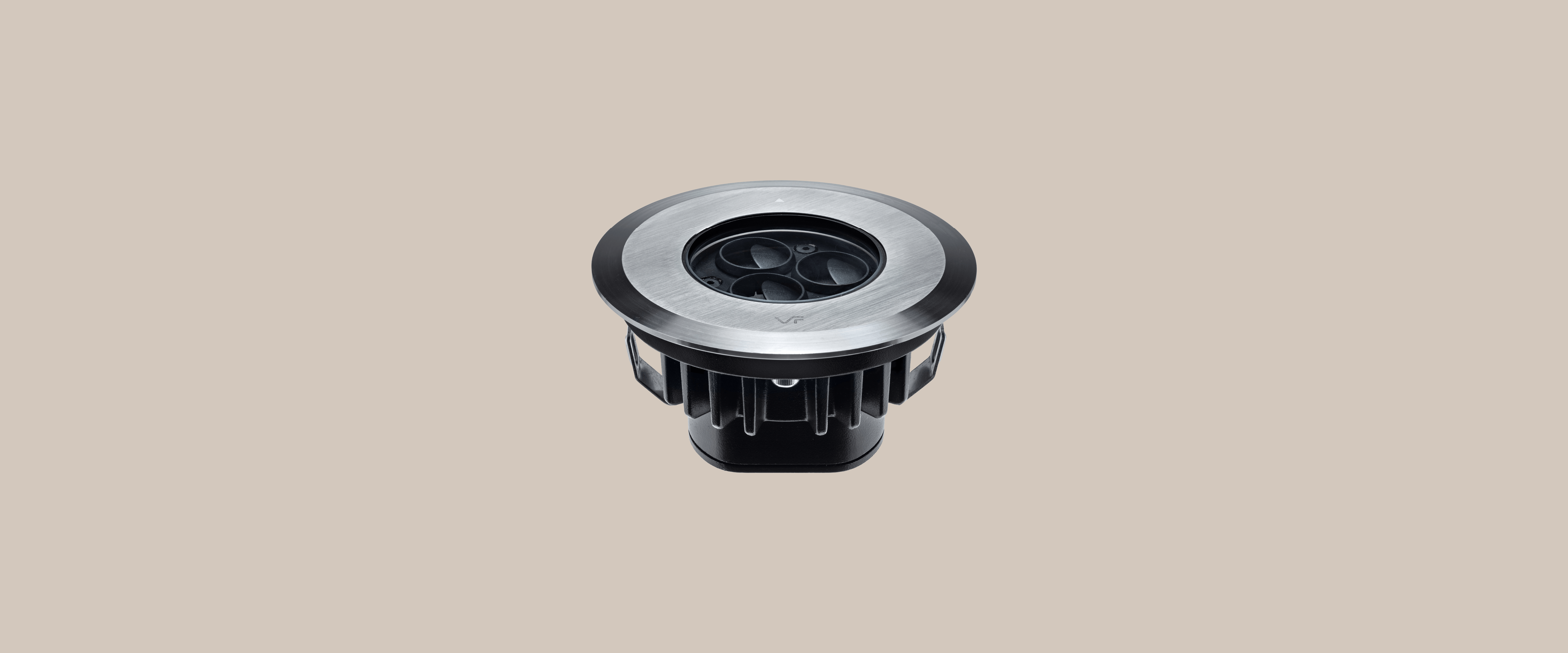

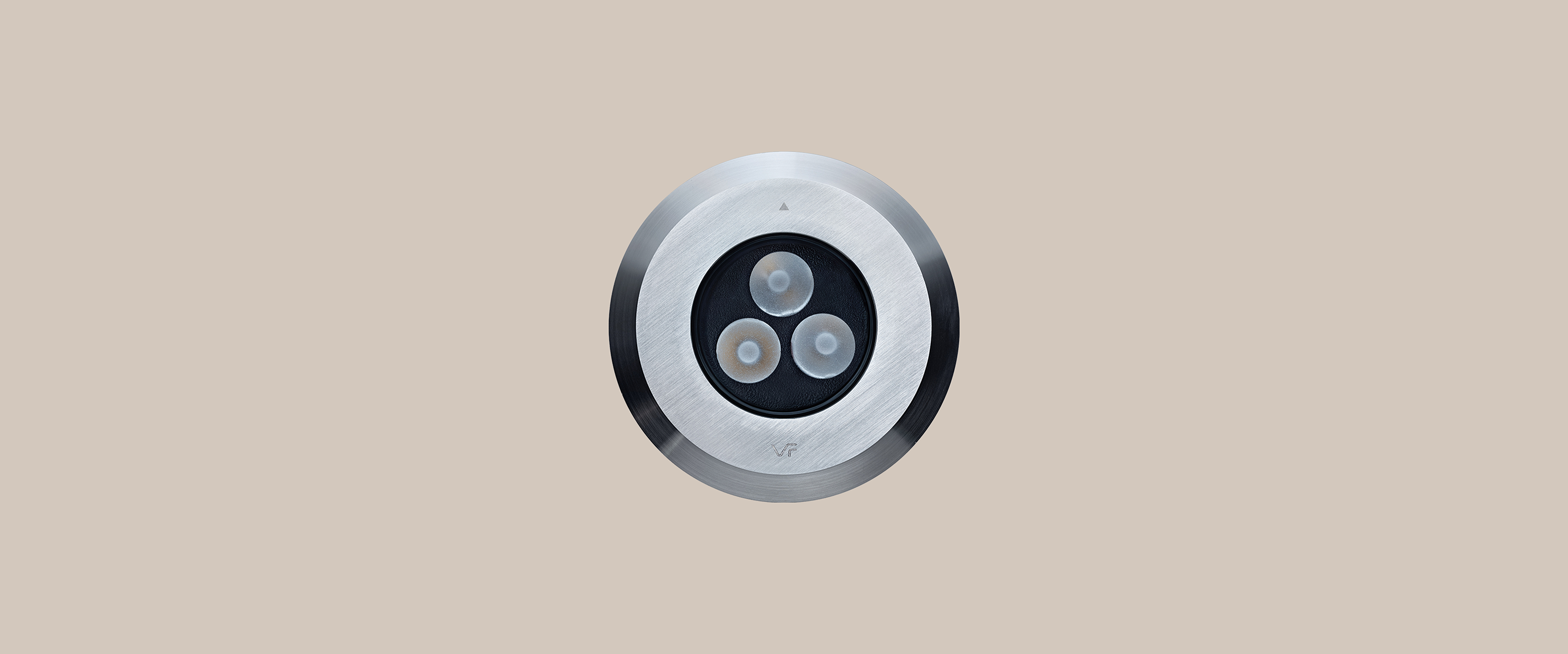

ASTA 112
Wide Trim Round In-Ground Light
ASTA 112
Wide Trim Round In-Ground Light
ASTA 112
Wide Trim Round In-Ground Light
ASTA 112
Wide Trim Round In-Ground Light
ASTA 112
Wide Trim Round In-Ground Light

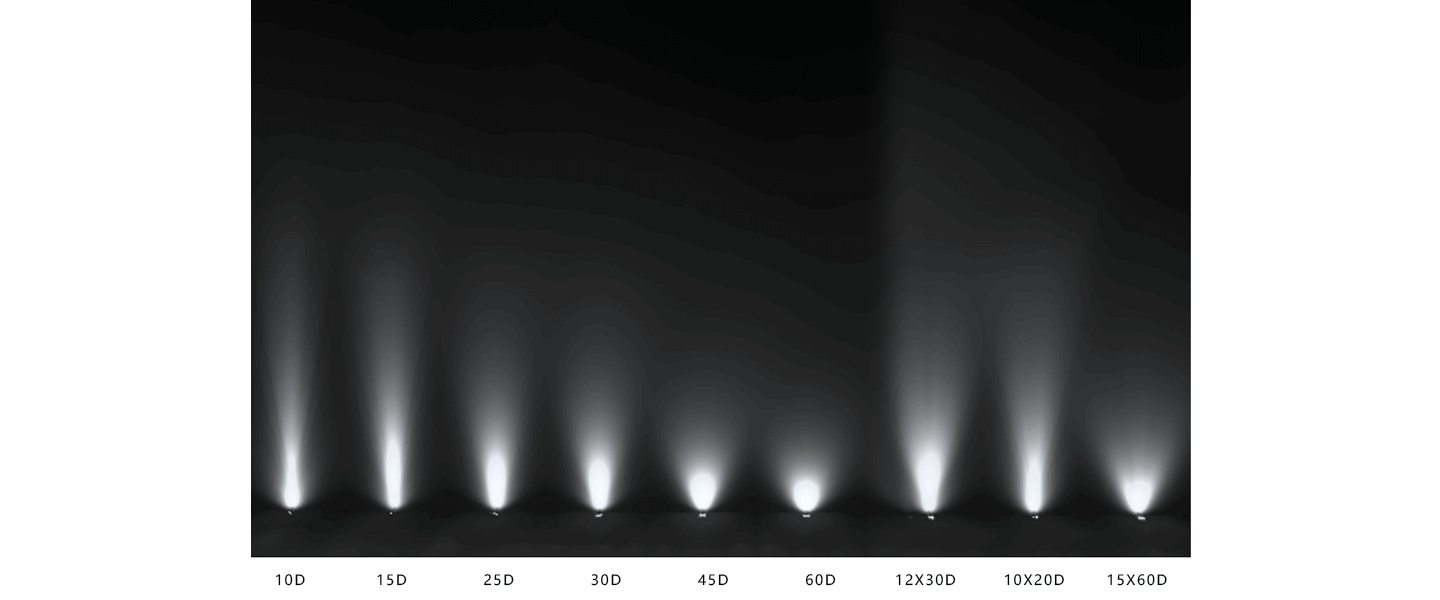

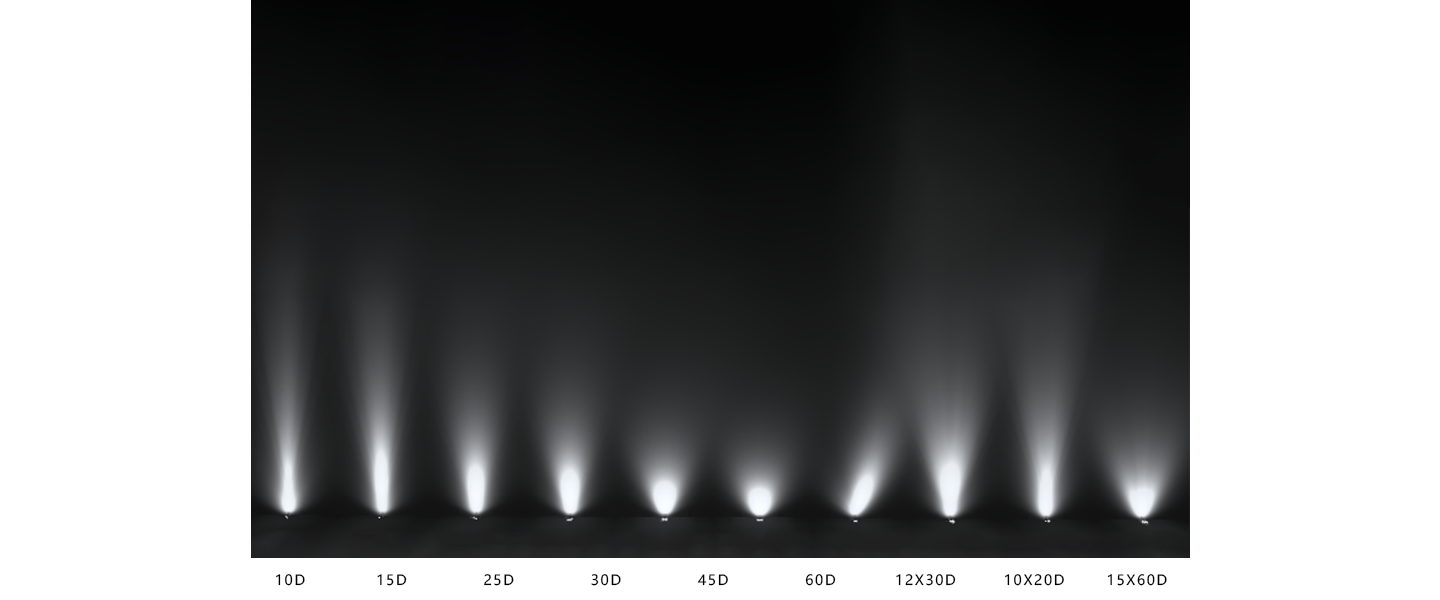

Lighting Effects
- Products Specification:
- Type:Wide Trim Round In-Ground Light
- Beam Angle:10D 15D 25D 30D 45D 60D 30D T20 10X30D 10X20D 15X60D
- Power:0.4W 7W
- Dimension:φ112*60mm
- Embedded Part Dimension:φ103*62mm/φ103*150mm
- Weight:0.79kg/1kg
- Heat-Sink:Aluminum
- Surface-Treatment:Plating
- CCT:2700K 3000K 4000K
- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 0.4W
- 7W
Beam Angle- Beam Angle
- diffuser
- T30°
- 10°
- 10*20°
- 10*30°
- 15*60°
- 15°
- 25°
- 30°
- 45°
- 60°
CRI- CRI
- >80
Color- Color
- 2700K
- 3000K
- 4000K
Control- Control
- ON/OFF/DALI/DMX512
Dimming type- Dimming type
- 1-Non Dim
- 4-DALI dimming
- 5-DMX512
Finish- Finish
- A3-Stainless
Reflector- Reflector
- N/A
IP Rating- IP Rating
- 67-IP67
Accessory- Accessory
- B-sea gull louver
- C-Crescent Louver
- Power(W)
- 0.4W
- 7W
- Beam Angle
- diffuser
- T30°
- 10°
- 10*20°
- 10*30°
- 15*60°
- 15°
- 25°
- 30°
- 45°
- 60°
- CRI
- >80
- Color
- 2700K
- 3000K
- 4000K
- Control
- ON/OFF/DALI/DMX512
- Dimming type
- 1-Non Dim
- 4-DALI dimming
- 5-DMX512
- Finish
- A3-Stainless
- Reflector
- N/A
- IP Rating
- 67-IP67
- Accessory
- B-sea gull louver
- C-Crescent Louver
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
BB00204-00000827
BB00204-00000830
BB00204-00000840
BB00204-00010827
BB00204-00015827
BB00204-00025827
BB00204-00030827
BB00204-00045827
BB00204-00060827
BB00204-01030827
BB00204-01020827
BB00204-01560827
BB00204-00010830
BB00204-00015830
BB00204-00025830
BB00204-00030830
BB00204-00045830
BB00204-00060830
BB00204-01030830
BB00204-01020830
BB00204-01560830
BB00204-00010840
BB00204-00015840
BB00204-00025840
BB00204-00030840
BB00204-00045840
BB00204-00060840
BB00204-01030840
BB00204-01020840
BB00204-01560840
BB00204-01T300827
BB00204-01T300830
BB00204-01T300840
- Luminous Flux (LM)
11.8LM
12.1LM
12.8LM
404LM
481LM
441LM
447LM
405LM
337LM
345LM
341LM
328LM
417LM
496LM
455LM
461LM
417LM
347LM
356LM
352LM
345LM
435LM
481LM
469LM
468LM
437LM
371LM
468LM
442LM
348LM
363LM
383LM
399LM
- Power (W)
0.4W
0.4W
0.4W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
- Beam Angle
diffuser
diffuser
diffuser
10°
15°
25°
30°
45°
60°
10*30°
10*20°
15*60°
10°
15°
25°
30°
45°
60°
10*30°
10*20°
15*60°
10°
15°
25°
30°
45°
60°
10*30°
10*20°
15*60°
T30°
T30°
T30°
- CRI
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
- Color
2700K
3000K
4000K
2700K
2700K
2700K
2700K
2700K
2700K
2700K
2700K
2700K
3000K
3000K
3000K
3000K
3000K
3000K
3000K
3000K
3000K
4000K
4000K
4000K
4000K
4000K
4000K
4000K
4000K
4000K
2700K
3000K
4000K
- Control
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
