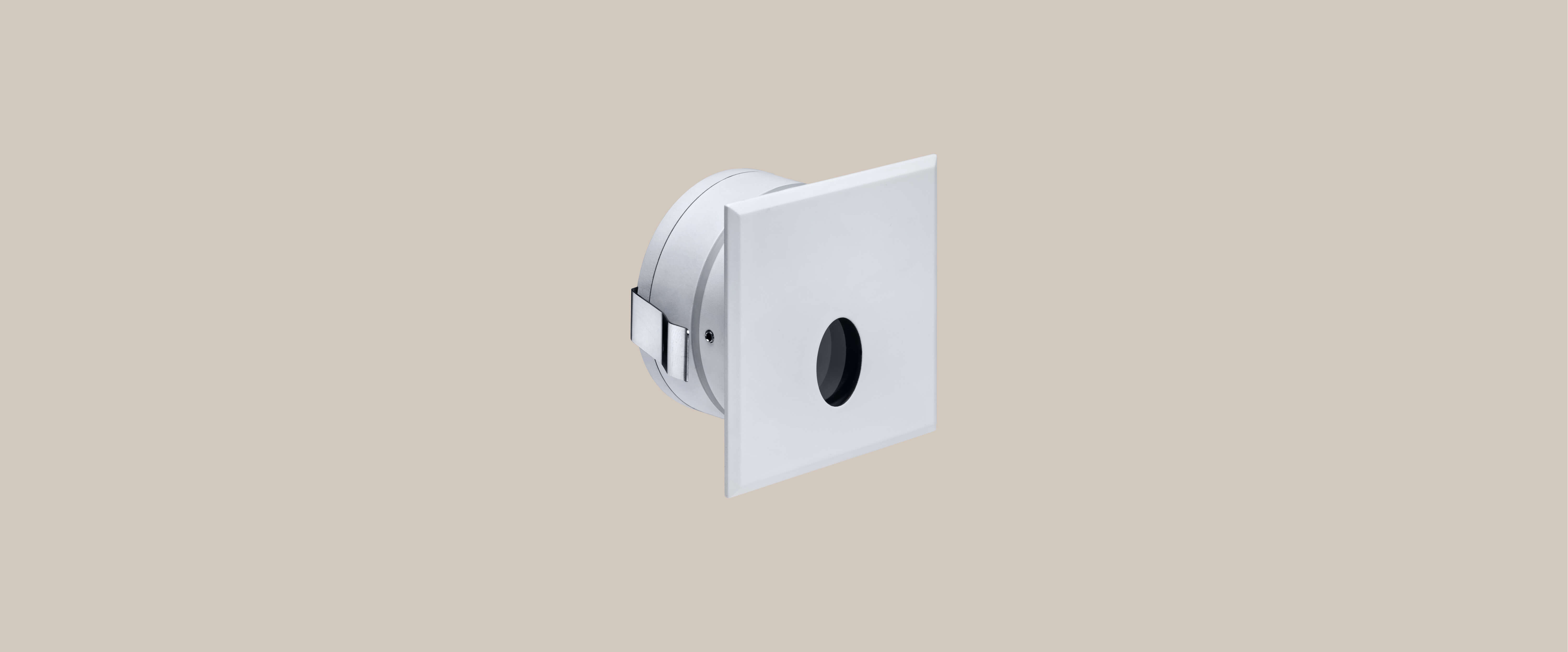

GLEAM 50
Recessed Oval Hole Foot Light
GLEAM 50
Gleams of light at night.
Five types of light hole design with replaceable square /round cap make creative light shape and uniform light effect. Small and elegant，hidden light point，integrated with building. Integrated low voltage photovoltaic modules supplied power easily. It is safty for using in wet areas.
Lighting Effects
- Products Specification:
- Type:Recessed Oval Hole Foot Light
- Cut-Out:ø 50 mm
- Power:1W 3W
- CCT:2700K 3000K 4000K
- Weight:0.08kg
- Heat-Sink:Die-casting Aluminum
- Surface-Treatment:Plating
- Remarks:ø55 mm for fixture with embedded parts

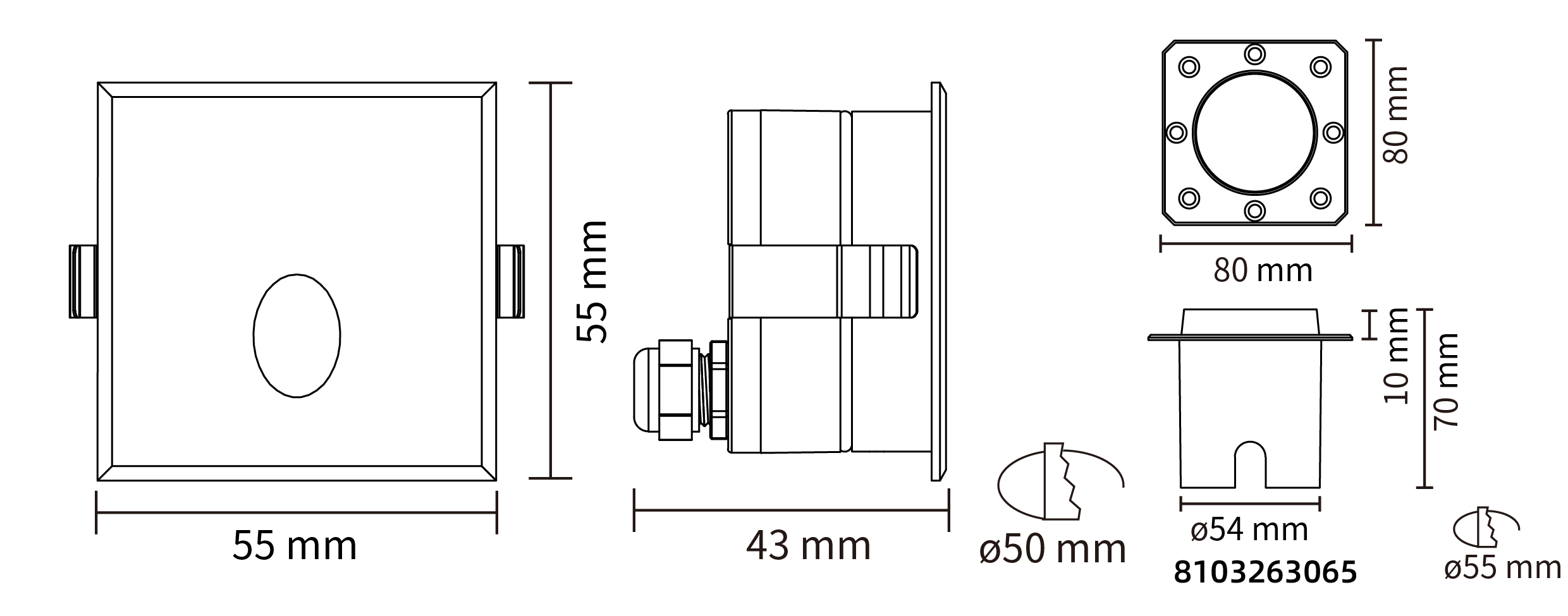

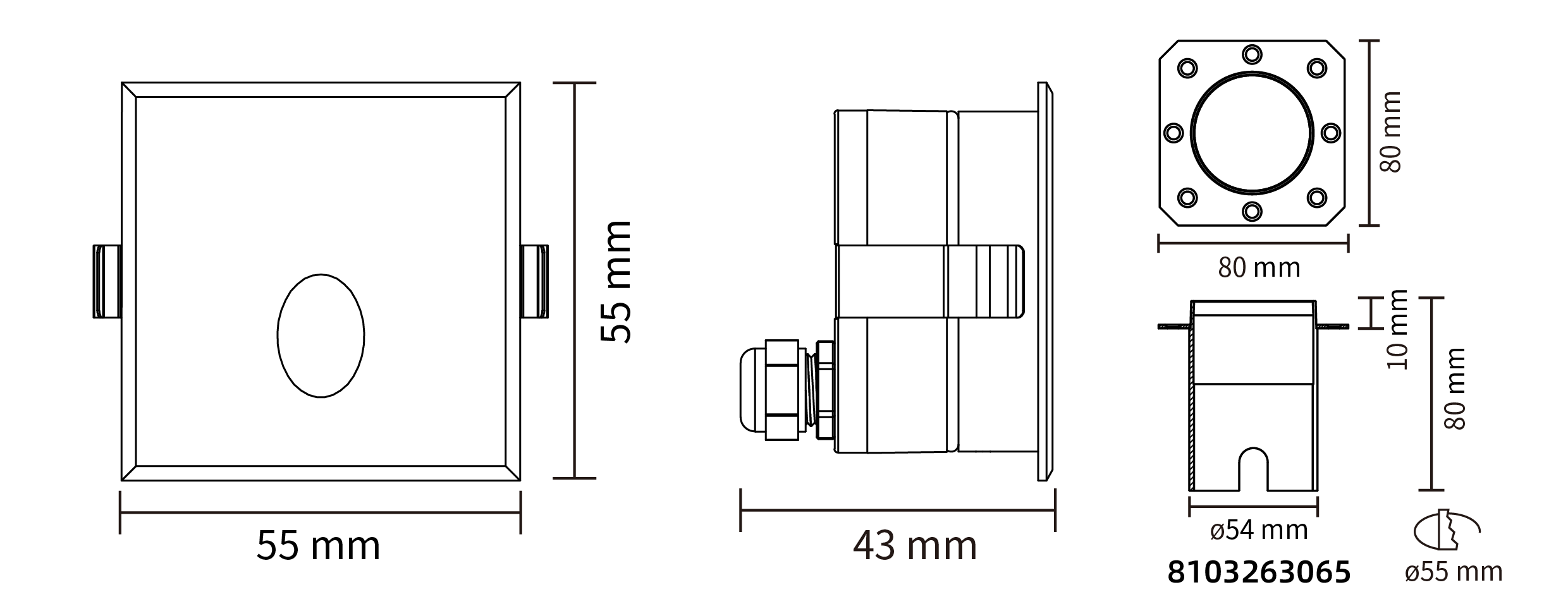

- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 1 W
- 3 W
Beam Angle- Beam Angle
- 28X38°
CRI- CRI
- Ra>80
Color- Color
- 2700K
- 3000K
- 4000K
Control- Control
Dimming type- Dimming type
- 1-Non Dim
Finish- Finish
- 92-Outdoor white
- 93-Outdoor black
- 94-Outdoor grey
Reflector- Reflector
- nothing
IP Rating- IP Rating
- 65-IP65
Accessory- Accessory
- nothing
Power(W)
- Power(W)
- 1 W
- 3 W
Beam Angle
- Beam Angle
- 28X38°
CRI
- CRI
- Ra>80
Color
- Color
- 2700K
- 3000K
- 4000K
Control
- Control
Dimming type
- Dimming type
- 1-Non Dim
Finish
- Finish
- 92-Outdoor white
- 93-Outdoor black
- 94-Outdoor grey
Reflector
- Reflector
- nothing
IP Rating
- IP Rating
- 65-IP65
Accessory
- Accessory
- nothing
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
DR00603-01XX8027
DR00603-01XX8030
DR00603-01XX8040
DR00603-03XX8027
DR00603-03XX8030
DR00603-03XX8040
- Luminous Flux (LM)
5LM
5LM
5LM
8LM
9LM
9LM
- Power (W)
1 W
1 W
1 W
3 W
3 W
3 W
- Beam Angle
28X38°
28X38°
28X38°
28X38°
28X38°
28X38°
- CRI
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
Ra>80
- Color
2700K
3000K
4000K
2700K
3000K
4000K
