Home Products Indoor PEARL 100 - Round Fixed Recessed Downlight

PEARL 100

Round Fixed Recessed Downlight

PEARL 100

This product would be discontinued since 2023-5-2

PEARL 100

This product would be discontinued since 2023-5-2

Pearl, which provides basis lighting for indoor environments, has significant advantages. The COB wide beam angle can reach to 80 ° , which not only perfectly solved the problem of installation distribution of lamp caused by its quantities, but also fully guaranteed the uniformity of illumination. Then, this series has a wide range of specifications, ranging from 3" to 8" size, 8w to 60w power. As a basis lighting appliance, this series can provide rich choices for designers and owners no matter in narrow small space or spacious & tall space.

This series of products adopts the integrated design of heatsink and front trim. While achieving good heat dissipation, it also effectively reduces the height of the lamps. The height of 8" lamps is maximum 70mm, which grant designer rich choices in the area that has limitation to lamps height.

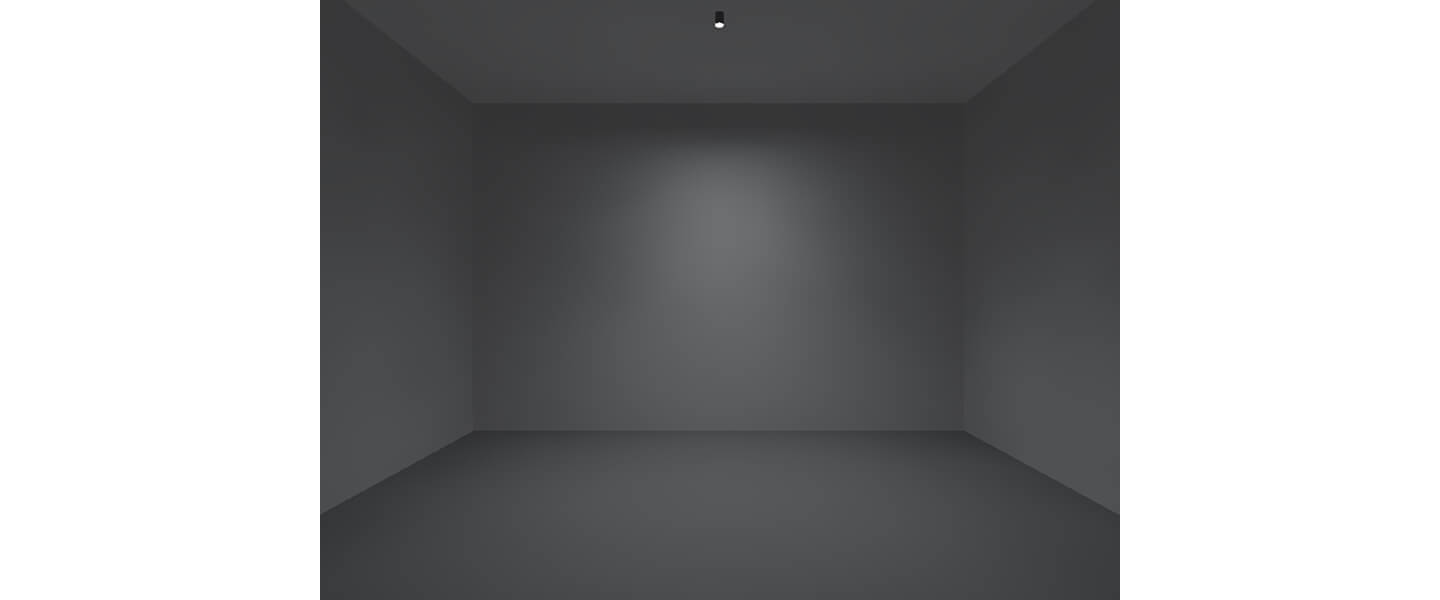

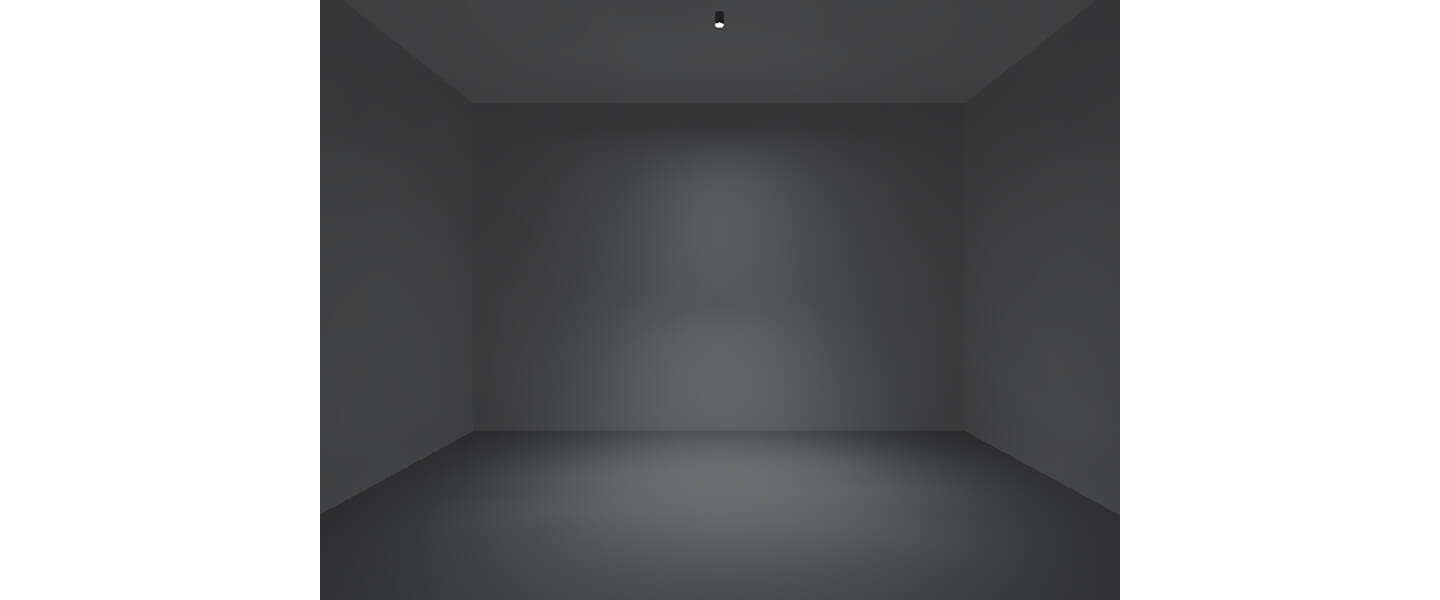

Lighting Effects

Products Specification:: Type:Round Fixed Recessed Downlight; Cut-Out:ø100mm; Beam Angle:50D 75D; Power:8W 12W 15W; CCT:2700K 3000K 4000K; Weight:0.35kg; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
8W
10W
12W
15W

Beam Angle

Beam Angle
50D
75D

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
02-Black
01-White

Reflector

Reflector
1-White
3-Mirror

IP Rating

IP Rating
20-IP20
44-IP44

Accessory

Accessory
N/A

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: 58111B1-08509027; 58111B1-08509030; 58111B1-08509040; 58111B1-08759027; 58111B1-08759030; 58111B1-08759040; 58111B1-10509027; 58111B1-10509030; 58111B1-10509040; 58111B1-10759027; 58111B1-10759030; 58111B1-10759040; 58111B1-12509027; 58111B1-12509030; 58111B1-12509040; 58111B1-12759027; 58111B1-12759030; 58111B1-12759040; 58111B1-15509027; 58111B1-15509030; 58111B1-15509040; 58111B1-15759027; 58111B1-15759030; 58111B1-15759040

Luminous Flux (LM): 621LM; 654LM; 674LM; 628LM; 661LM; 650LM; 748LM; 788LM; 796LM; 745LM; 784LM; 776LM; 914LM; 962LM; 957LM; 886LM; 933LM; 941LM; 1016LM; 1069LM; 1212LM; 977LM; 1028LM; 1151LM

Power (W): 8W; 8W; 8W; 8W; 8W; 8W; 10W; 10W; 10W; 10W; 10W; 10W; 12W; 12W; 12W; 12W; 12W; 12W; 15W; 15W; 15W; 15W; 15W; 15W

Beam Angle: 50D; 50D; 50D; 75D; 75D; 75D; 50D; 50D; 50D; 75D; 75D; 75D; 50D; 50D; 50D; 75D; 75D; 75D; 50D; 50D; 50D; 75D; 75D; 75D

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
