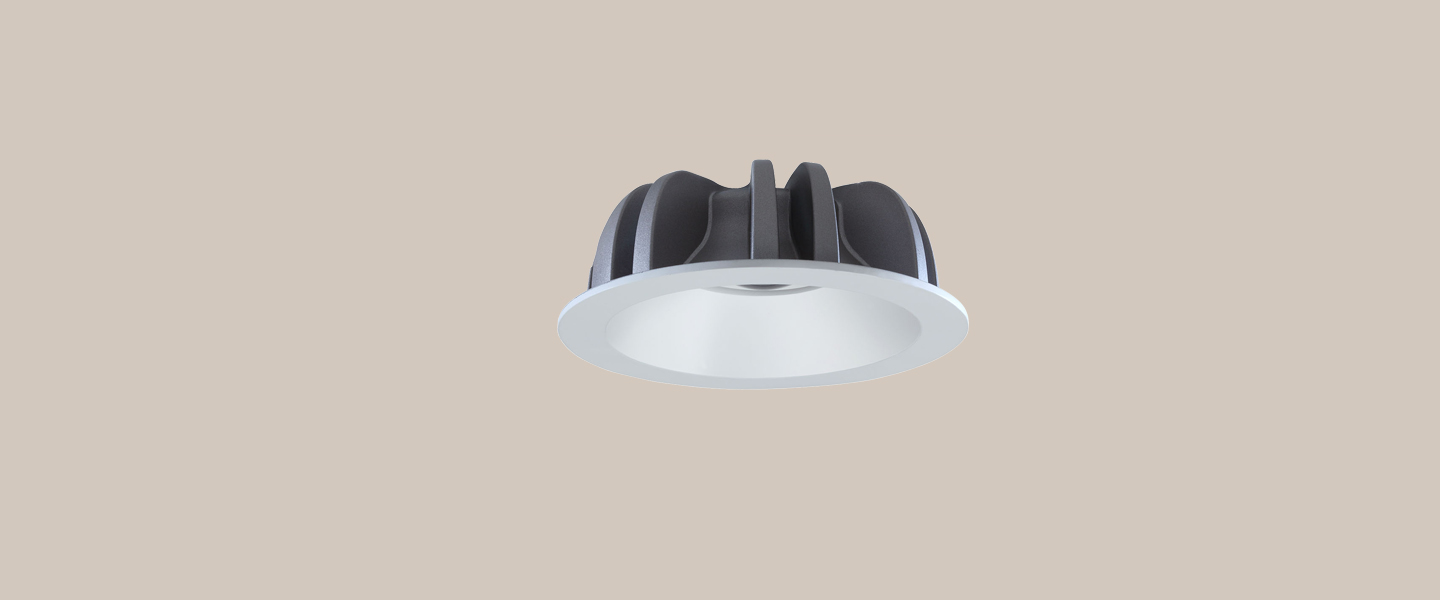

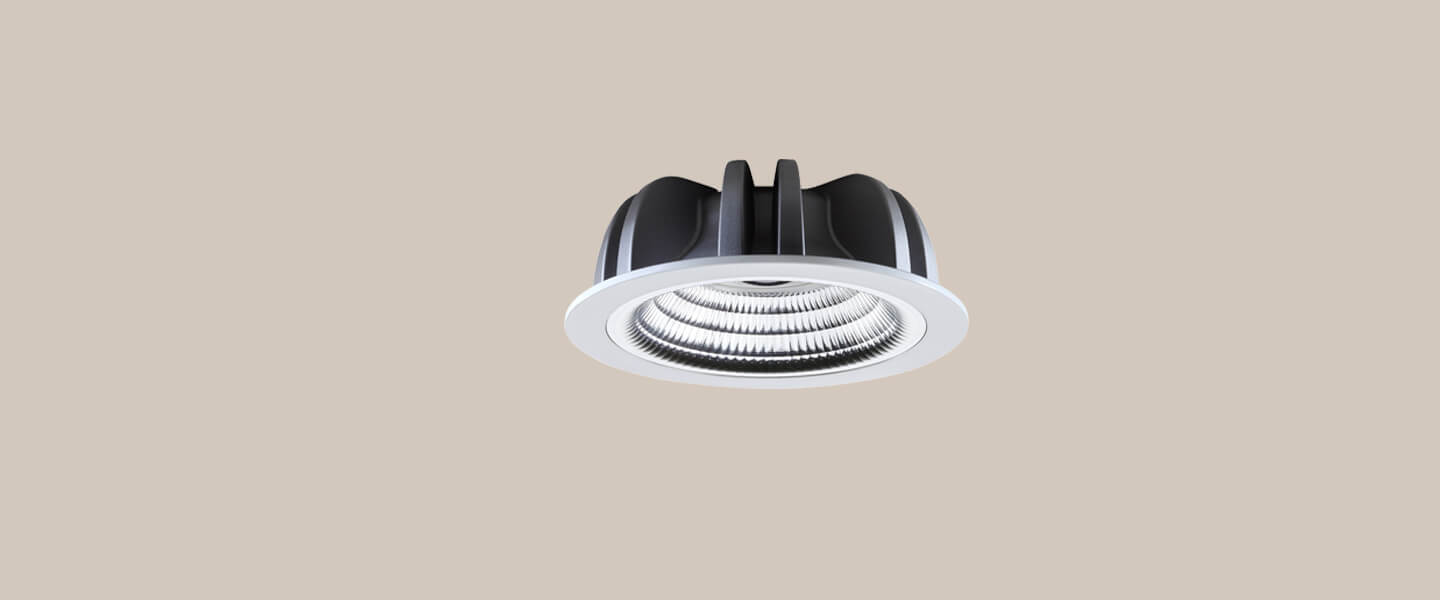

PEARL 150
Round Fixed Recessed Downlight
PEARL 150
This product would be discontinued since 2023-5-2
PEARL 150
This product would be discontinued since 2023-5-2
Pearl, which provides basis lighting for indoor environments, has significant advantages. The COB wide beam angle can reach to 80 ° , which not only perfectly solved the problem of installation distribution of lamp caused by its quantities, but also fully guaranteed the uniformity of illumination. Then, this series has a wide range of specifications, ranging from 3" to 8" size, 8w to 60w power. As a basis lighting appliance, this series can provide rich choices for designers and owners no matter in narrow small space or spacious & tall space.
This series of products adopts the integrated design of heatsink and front trim. While achieving good heat dissipation, it also effectively reduces the height of the lamps. The height of 8" lamps is maximum 70mm, which grant designer rich choices in the area that has limitation to lamps height.
Lighting Effects
- Products Specification:
- Type: Round Fixed Recessed Downlight
- Cut-Out:ø150mm
- Beam Angle:50D 55D 75D
- Power:20W 27W
- CCT:2700K 3000K 4000K
- Weight:0.78kg
- Heat-Sink:Aluminum
- Surface-Treatment:painting+plating
- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
Power(W)
- Power(W)
- 20W
- 27W
Beam Angle
- Beam Angle
- 50°
- 55°
- 75°
CRI
- CRI
- Ra>90
Color
- Color
- 2700K
- 3000K
- 4000K
Dimming type
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
Finish
- Finish
- 02-Black
- 01-White
Reflector
- Reflector
- 1-White
- 3-Mirror
IP Rating
- IP Rating
- 20-IP20
- 44-IP44
Accessory
- Accessory
- N/A
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
58111D1-20509027
58111D1-20509030
58111D1-20509040
58111D1-20759027
58111D1-20759030
58111D1-20759040
58111D1-27559027
58111D1-27559030
58111D1-27559040
58111D1-27759027
58111D1-27759030
58111D1-27759040
- Luminous Flux (LM)
1531LM
1611LM
1781LM
1752LM
1844LM
1997LM
1943LM
2046LM
2210LM
2232LM
2350LM
2489LM
- Power (W)
20W
20W
20W
20W
20W
20W
27W
27W
27W
27W
27W
27W
- Beam Angle
50°
50°
50°
75°
75°
75°
55°
55°
55°
75°
75°
75°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
