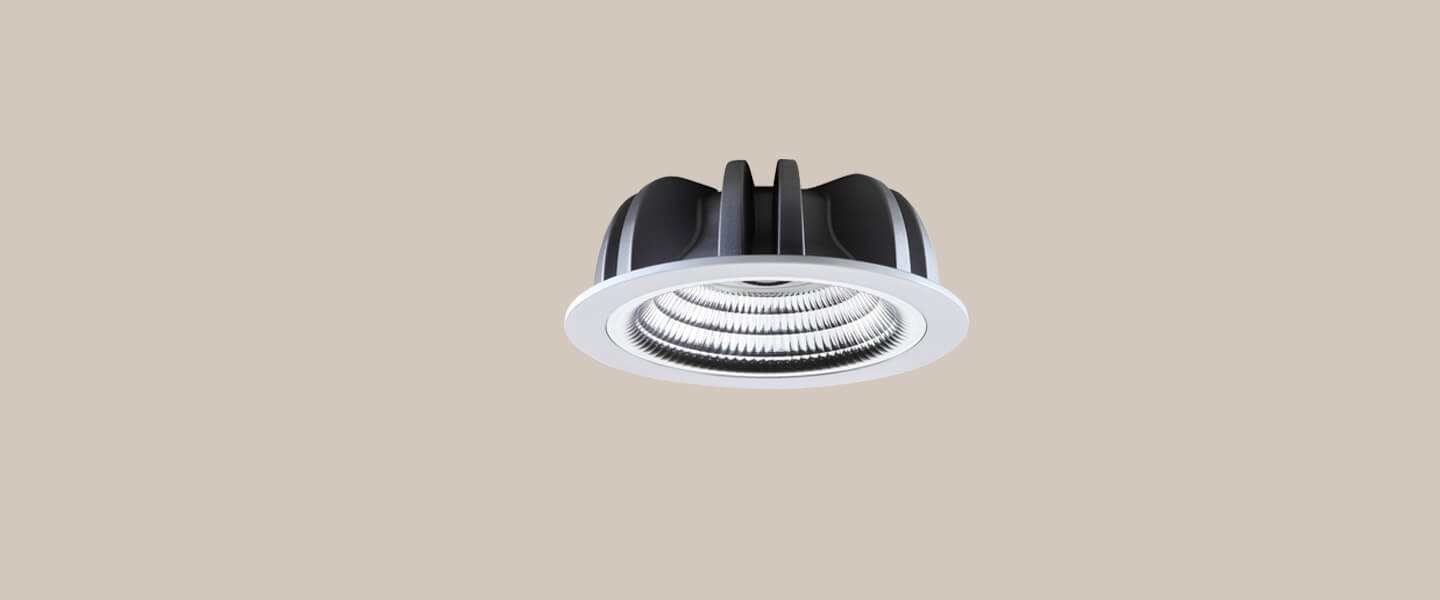

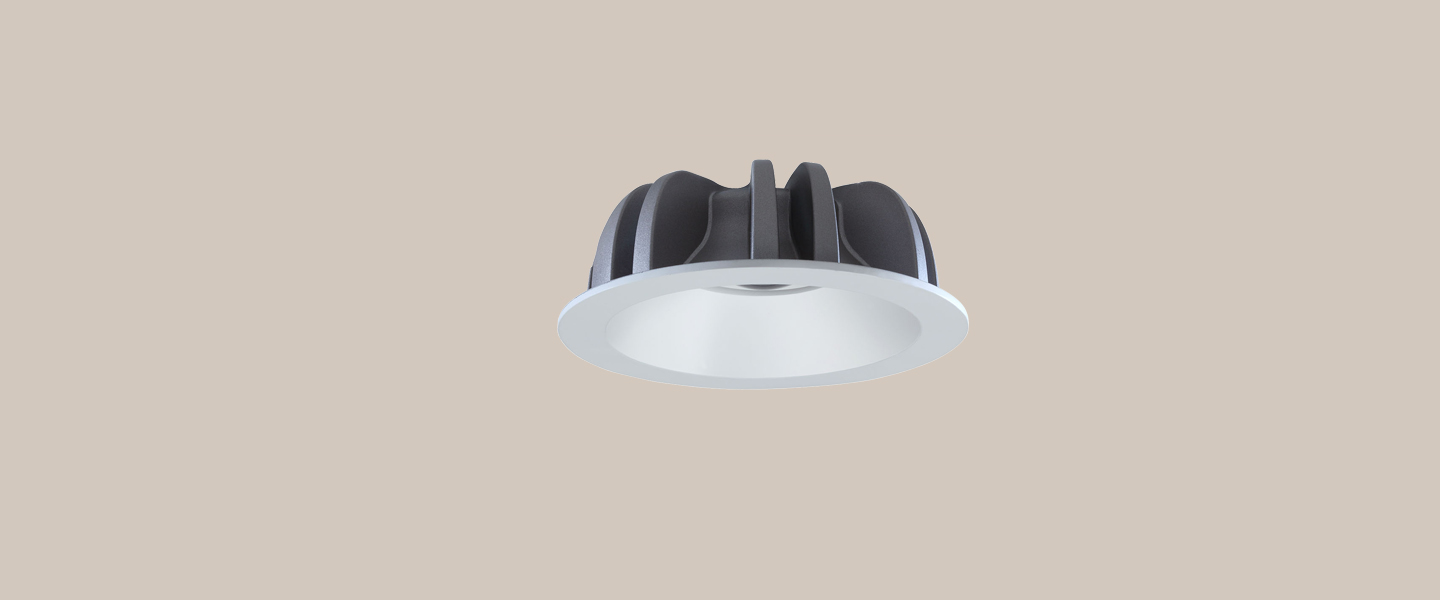

PEARL 125
Round Fixed Recessed Downlight
PEARL 125
This product would be discontinued since 2023-5-2
PEARL 125
This product would be discontinued since 2023-5-2
Pearl, which provides basis lighting for indoor environments, has significant advantages. The COB wide beam angle can reach to 80 ° , which not only perfectly solved the problem of installation distribution of lamp caused by its quantities, but also fully guaranteed the uniformity of illumination. Then, this series has a wide range of specifications, ranging from 3" to 8" size, 8w to 60w power. As a basis lighting appliance, this series can provide rich choices for designers and owners no matter in narrow small space or spacious & tall space.
This series of products adopts the integrated design of heatsink and front trim. While achieving good heat dissipation, it also effectively reduces the height of the lamps. The height of 8" lamps is maximum 70mm, which grant designer rich choices in the area that has limitation to lamps height.
Lighting Effects
- Products Specification:
- Type:Recessed Round Fixed Downlight
- Cut-Out:ø125mm
- Beam Angle:50D 75D
- Power:15W 20W
- CCT:2700K 3000K 4000K
- Weight:1.1kg
- Heat-Sink:Aluminum
- Surface-Treatment:painting+plating
- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
Power(W)
- Power(W)
- 15W
- 20W
Beam Angle
- Beam Angle
- 50°
- 75°
CRI
- CRI
- Ra>90
Color
- Color
- 2700K
- 3000K
- 4000K
Dimming type
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
Finish
- Finish
- 02-Black
- 01-White
Reflector
- Reflector
- 1-White
- 3-Mirror
IP Rating
- IP Rating
- 20-IP20
- 44-IP44
Accessory
- Accessory
- N/A
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
58111C1-15509027
58111C1-15509030
58111C1-15509040
58111C1-15759027
58111C1-15759030
58111C1-15759040
58111C1-20509027
58111C1-20509030
58111C1-20509040
58111C1-20759027
58111C1-20759030
58111C1-20759040
- Luminous Flux (LM)
1138LM
1197LM
1294LM
1202LM
1266LM
1322LM
1505LM
1584LM
1717LM
1620LM
1705LM
1801LM
- Power (W)
15W
15W
15W
15W
15W
15W
20W
20W
20W
20W
20W
20W
- Beam Angle
50°
50°
50°
75°
75°
75°
50°
50°
50°
75°
75°
75°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
