GRACE 70
Single Head Adjustable Recessed Downlight
GRACE 70
Single Head Adjustable Recessed Downlight
Lighting Effects
- Products Specification:
- Type:Single Head Adjustable Recessed Downlight
- Cut-Out:70x70mm
- Beam Angle:15D 24D 36D 50D
- Power:5W 7W 10W
- Weight:0.22kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:painting+plating

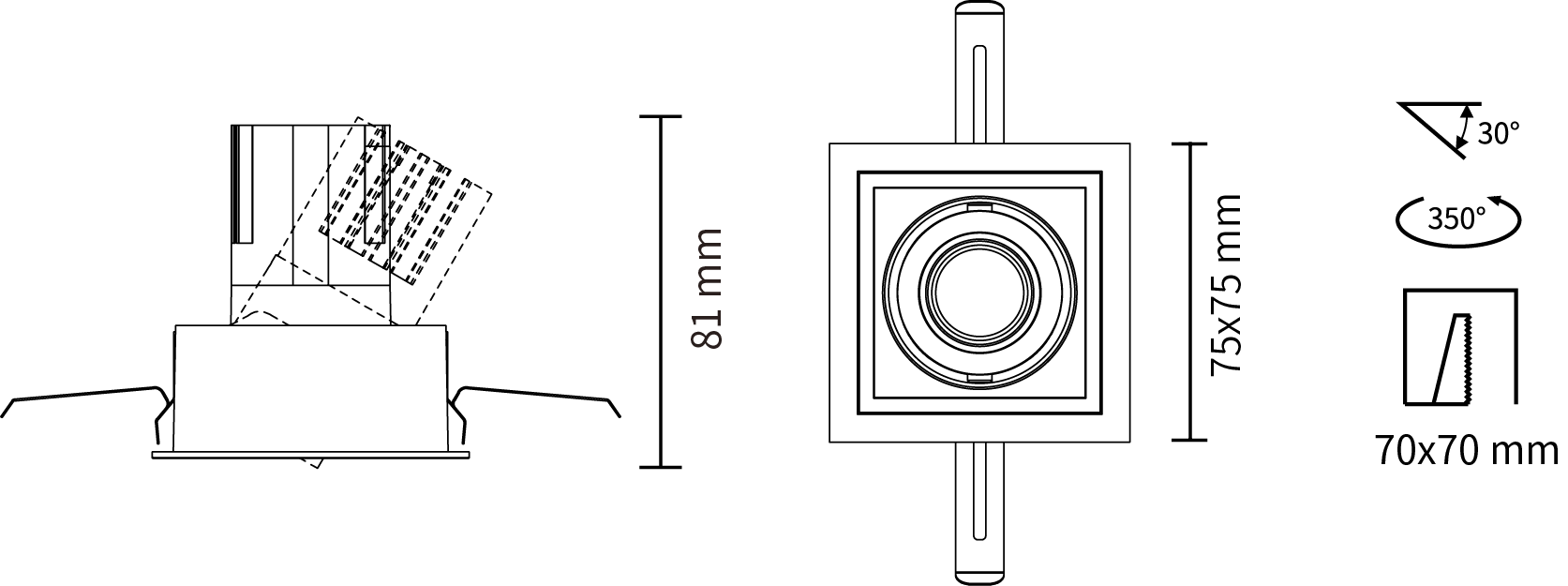

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 5W
- 7W
- 10W
- Beam Angle
- 15°
- 24°
- 36°
- 50°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- 02-Black
- 01-White
- Reflector
- N/A
- IP Rating
- 20-IP20
- Accessory
- 1-Honeycomb louver
- 4-Linear lens
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DR00901-05159027
DR00901-05159030
DR00901-05159040
DR00901-05249027
DR00901-05249030
DR00901-05249040
DR00901-05369027
DR00901-05369030
DR00901-05369040
DR00901-05509027
DR00901-05509030
DR00901-05509040
DR00901-07159027
DR00901-07159030
DR00901-07159040
DR00901-07249027
DR00901-07249030
DR00901-07249040
DR00901-07369027
DR00901-07369030
DR00901-07369040
DR00901-07509027
DR00901-07509030
DR00901-07509040
DR00901-10159027
DR00901-10159030
DR00901-10159040
DR00901-10249027
DR00901-10249030
DR00901-10249040
DR00901-10369027
DR00901-10369030
DR00901-10369040
DR00901-10509027
DR00901-10509030
DR00901-10509040
- Luminous Flux (LM)
322LM
339LM
402LM
344LM
362LM
386LM
289LM
304LM
324LM
296LM
312LM
326LM
380LM
400LM
475LM
400LM
422LM
450LM
338LM
356LM
382LM
353LM
372LM
384LM
565LM
595LM
683LM
621LM
654LM
649LM
542LM
570LM
539LM
541LM
569LM
561LM
- Power (W)
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
10W
- Beam Angle
15°
15°
15°
24°
24°
24°
36°
36°
36°
50°
50°
50°
15°
15°
15°
24°
24°
24°
36°
36°
36°
50°
50°
50°
15°
15°
15°
24°
24°
24°
36°
36°
36°
50°
50°
50°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Specification
- IES
- DWG
- manual
- Favorite
