ARCUS 65

Wall Washer

ARCUS 65

ARCUS 65

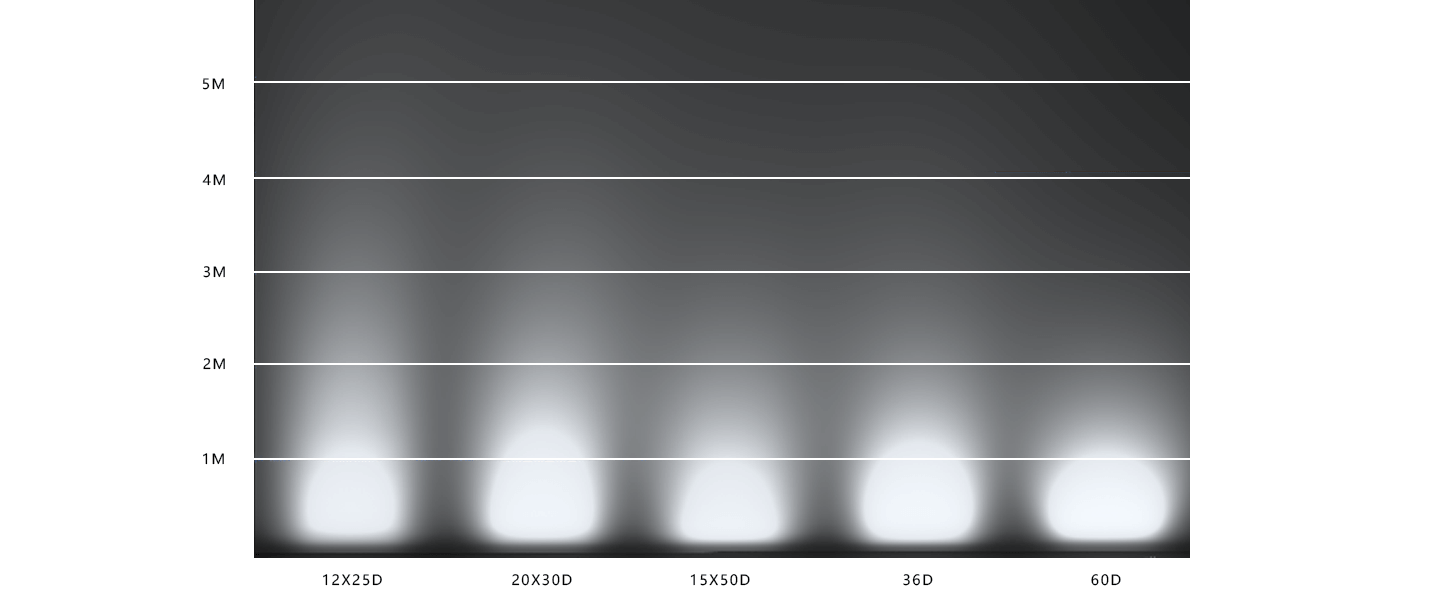

Lighting Effects

Products Specification:: Type:Wall Washer; Beam Angle:12x25D 20x30D 15x55D 30D 60D; Power:64W 72W 80W; Dimension:1000*40*55mm; Weight:4.1kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:powder coating

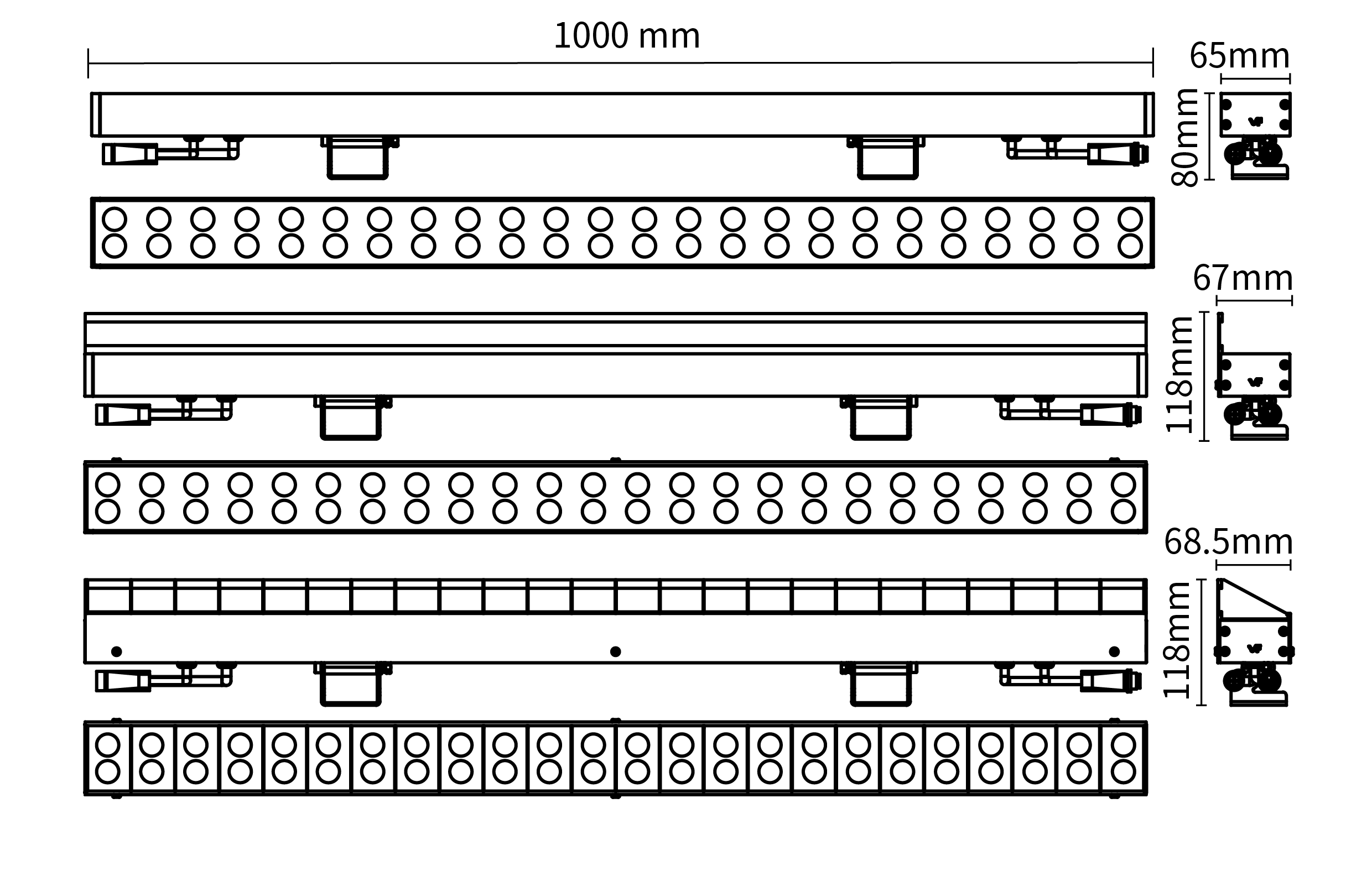

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
64W
72W
80W

Beam Angle

Beam Angle
12X25°
15X55°
20X30°
30°
60°

CRI

CRI
>80

Color

Color
2700K
3000K
4000K

Control

Control
ON/OFF/DALI/DMX512

Dimming type

Dimming type
1-Non Dim
4-DALI dimming
5-DMX512

Finish

Finish
03-Grey

Reflector

Reflector
N/A

IP Rating

IP Rating
66-IP66

Accessory

Accessory
E-glare
C-Grid

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: BL00104-6412258027; BL00104-6412258030; BL00104-6412258040; BL00104-6420308027; BL00104-6420308030; BL00104-6420308040; BL00104-6415558027; BL00104-6415558030; BL00104-6415558040; BL00104-64308027; BL00104-64308030; BL00104-64308040; BL00104-64608027; BL00104-64608030; BL00104-64608040; BL00104-7212258027; BL00104-7212258030; BL00104-7212258040; BL00104-7220308027; BL00104-7220308030; BL00104-7220308040; BL00104-7215558027; BL00104-7215558030; BL00104-7215558040; BL00104-72308027; BL00104-72308030; BL00104-72308040; BL00104-72608027; BL00104-72608030; BL00104-72608040; BL00104-8012258027; BL00104-8012258030; BL00104-8012258040; BL00104-8020308027; BL00104-8020308030; BL00104-8020308040; BL00104-8015558027; BL00104-8015558030; BL00104-8015558040; BL00104-80308027; BL00104-80308030; BL00104-80308040; BL00104-80608027; BL00104-80608030; BL00104-80608040

Luminous Flux (LM): 6350LM; 6159LM; 6684LM; 6644LM; 6445LM; 6993LM; 5940LM; 5762LM; 6252LM; 5961LM; 5782LM; 6374LM; 6175LM; 5989LM; 6501LM; 6801LM; 6597LM; 7158LM; 7052LM; 6840LM; 7423LM; 6624LM; 6425LM; 6972LM; 6556LM; 6359LM; 6901LM; 6782LM; 6578LM; 7139LM; 7492LM; 7206LM; 7820LM; 7240LM; 7023LM; 7621LM; 6647LM; 6448LM; 6997LM; 6865LM; 6659LM; 7226LM; 6712LM; 6511LM; 7065LM

Power (W): 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 64W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 72W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W

Beam Angle: 12X25°; 12X25°; 12X25°; 20X30°; 20X30°; 20X30°; 15X55°; 15X55°; 15X55°; 30°; 30°; 30°; 60°; 60°; 60°; 12X25°; 12X25°; 12X25°; 20X30°; 20X30°; 20X30°; 15X55°; 15X55°; 15X55°; 30°; 30°; 30°; 60°; 60°; 60°; 12X25°; 12X25°; 12X25°; 20X30°; 20X30°; 20X30°; 15X55°; 15X55°; 15X55°; 30°; 30°; 30°; 60°; 60°; 60°

CRI: >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Control: ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512

Specification

IES

DWG

manual

Favorite

Application
