Home Products Outdoor ARCUS 80 - Wall Washer

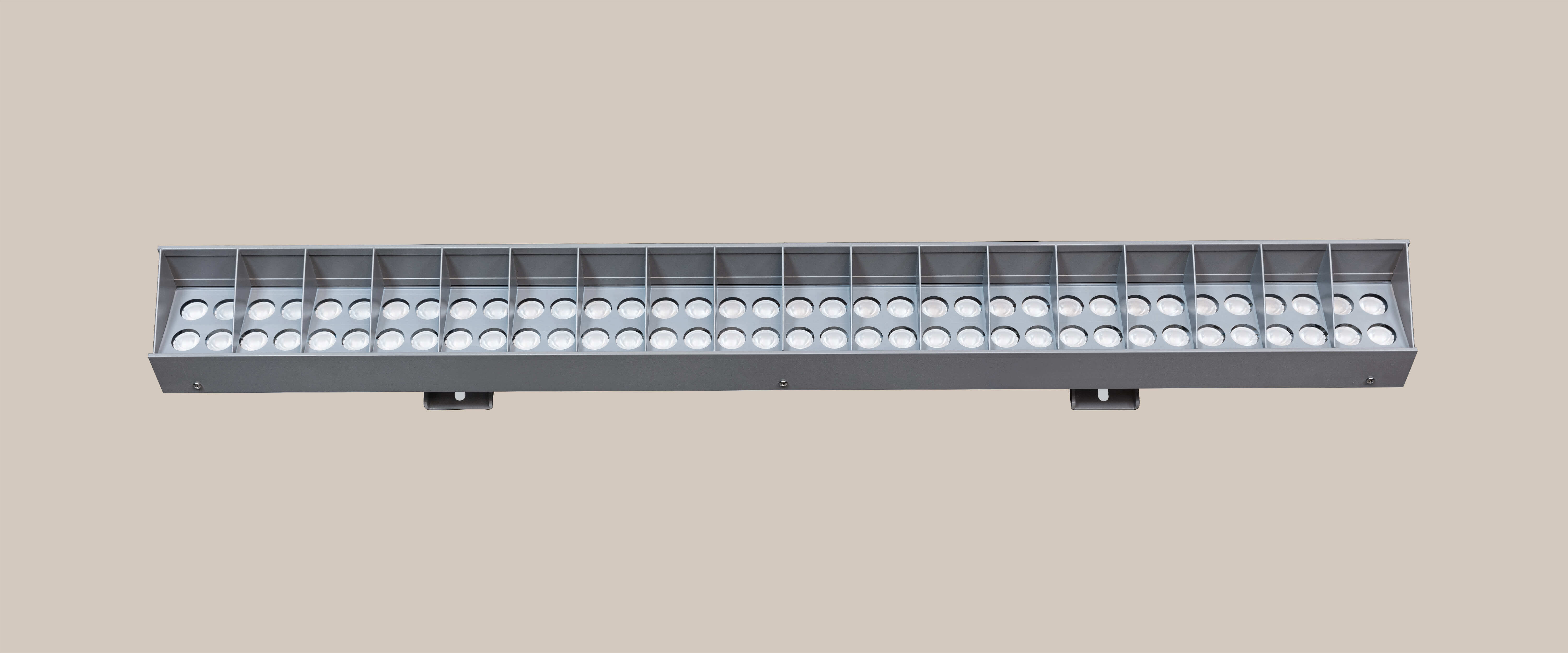

ARCUS 80

Wall Washer

ARCUS 80

ARCUS 80

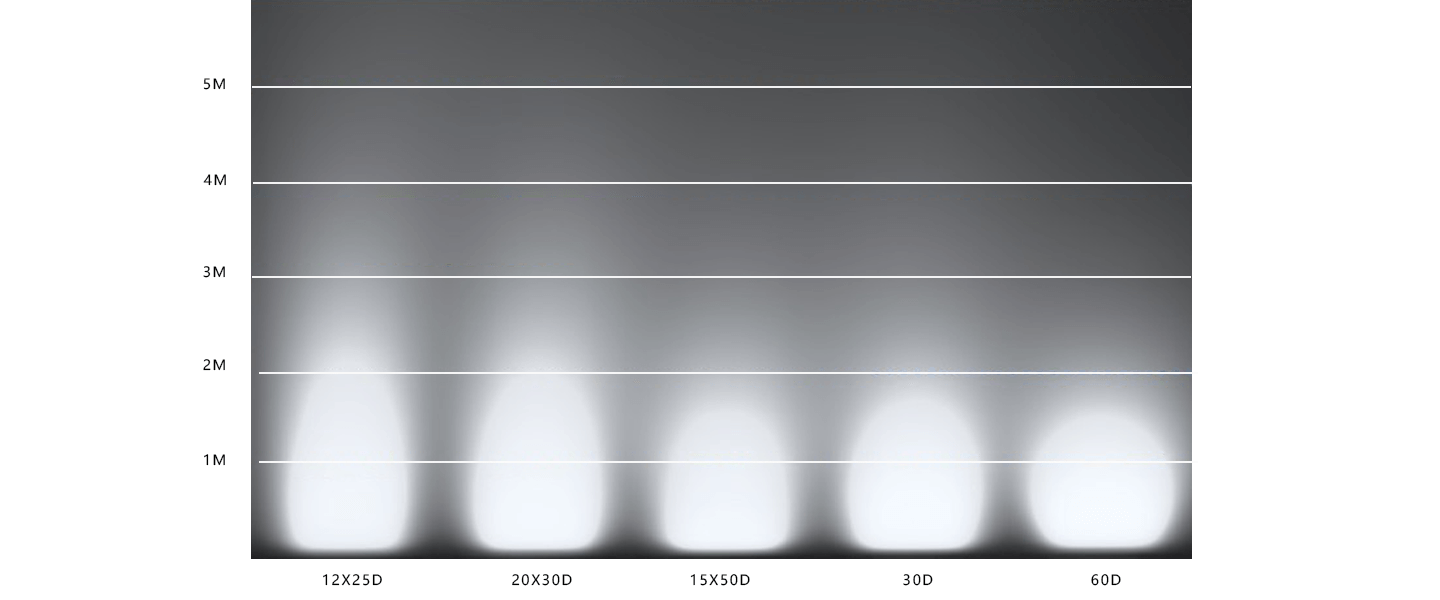

Lighting Effects

Products Specification:: Type:Wall Washer; Beam Angle:12x25D 20x30D 15x55D 30D 60D; Power:100W 120W; Dimension:1000*80*80mm; Weight:4.73kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:powder coating

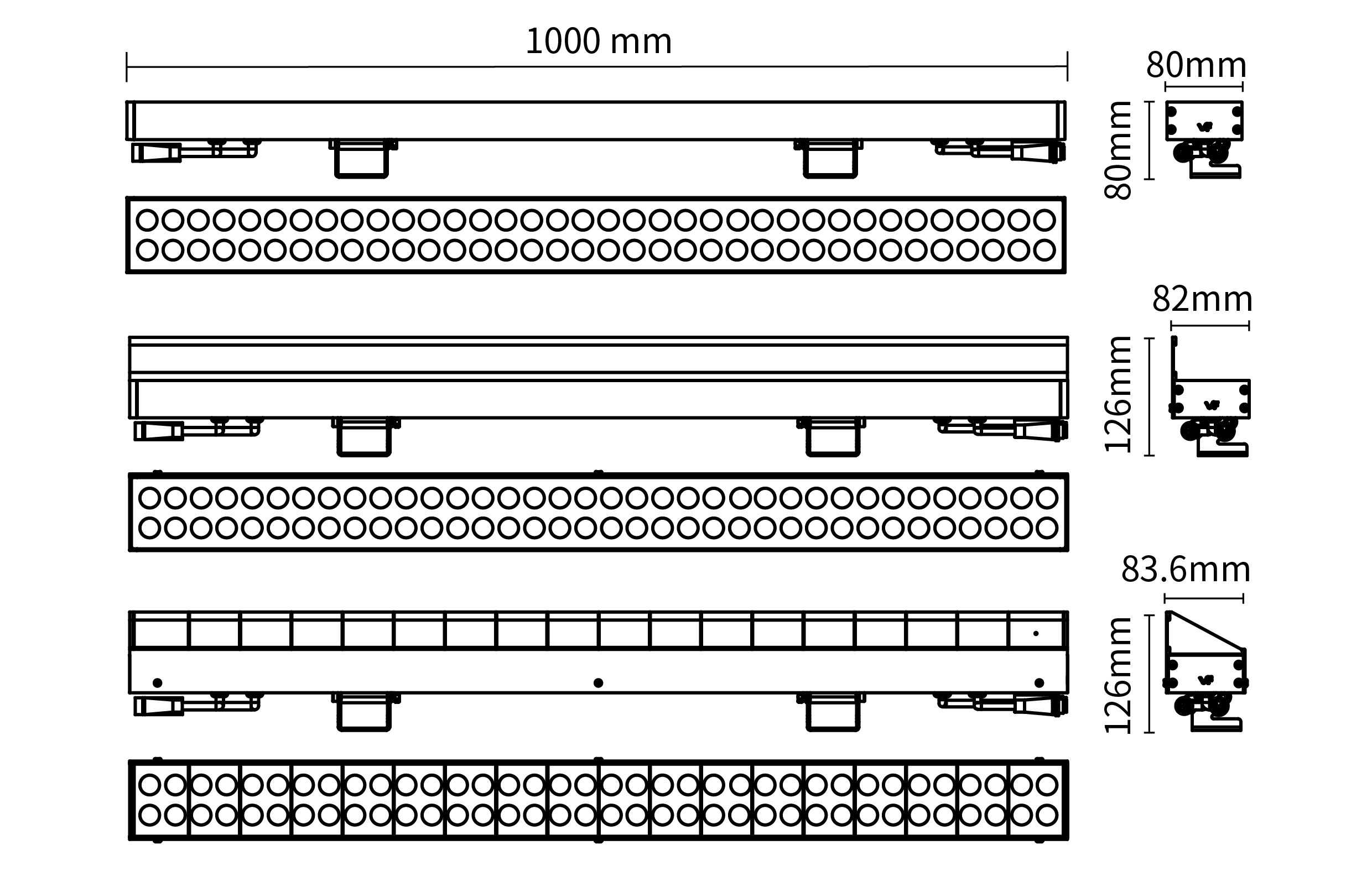

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
100W
120W

Beam Angle

Beam Angle
15X25°
15X55°
20X30°
30°
60°

CRI

CRI
>80

Color

Color
2700K
3000K
4000K

Control

Control
ON/OFF/DALI/DMX512

Dimming type

Dimming type
1-Non Dim
4-DALI dimming
5-DMX512

Finish

Finish
03-Grey

Reflector

Reflector
N/A

IP Rating

IP Rating
66-IP66

Accessory

Accessory
E-glare
C-Grid

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: BL00105-10015258027; BL00105-10015258030; BL00105-10015258040; BL00105-10020308027; BL00105-10020308030; BL00105-10020308040; BL00105-10015558027; BL00105-10015558030; BL00105-10015558040; BL00105-100308027; BL00105-100308030; BL00105-100308040; BL00105-100608027; BL00105-100608030; BL00105-100608040; BL00105-12015258027; BL00105-12015258030; BL00105-12015258040; BL00105-12020308027; BL00105-12020308030; BL00105-12020308040; BL00105-12015558027; BL00105-12015558030; BL00105-12015558040; BL00105-120308027; BL00105-120308030; BL00105-120308040; BL00105-120608027; BL00105-120608030; BL00105-120608040

Luminous Flux (LM): 9631LM; 9342LM; 10138LM; 10175LM; 9869LM; 10711LM; 9084LM; 8811LM; 9562LM; 9094LM; 8821LM; 9525LM; 9407LM; 9125LM; 9902LM; 10528LM; 10212LM; 11082LM; 11494LM; 11149LM; 12099LM; 9801LM; 9507LM; 10316LM; 10236LM; 9929LM; 10774LM; 10361LM; 10051LM; 10906LM

Power (W): 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 100W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W; 120W

Beam Angle: 15X25°; 15X25°; 15X25°; 20X30°; 20X30°; 20X30°; 15X55°; 15X55°; 15X55°; 30°; 30°; 30°; 60°; 60°; 60°; 15X25°; 15X25°; 15X25°; 20X30°; 20X30°; 20X30°; 15X55°; 15X55°; 15X55°; 30°; 30°; 30°; 60°; 60°; 60°

CRI: >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Control: ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512

Specification

IES

DWG

manual

Favorite

Application
