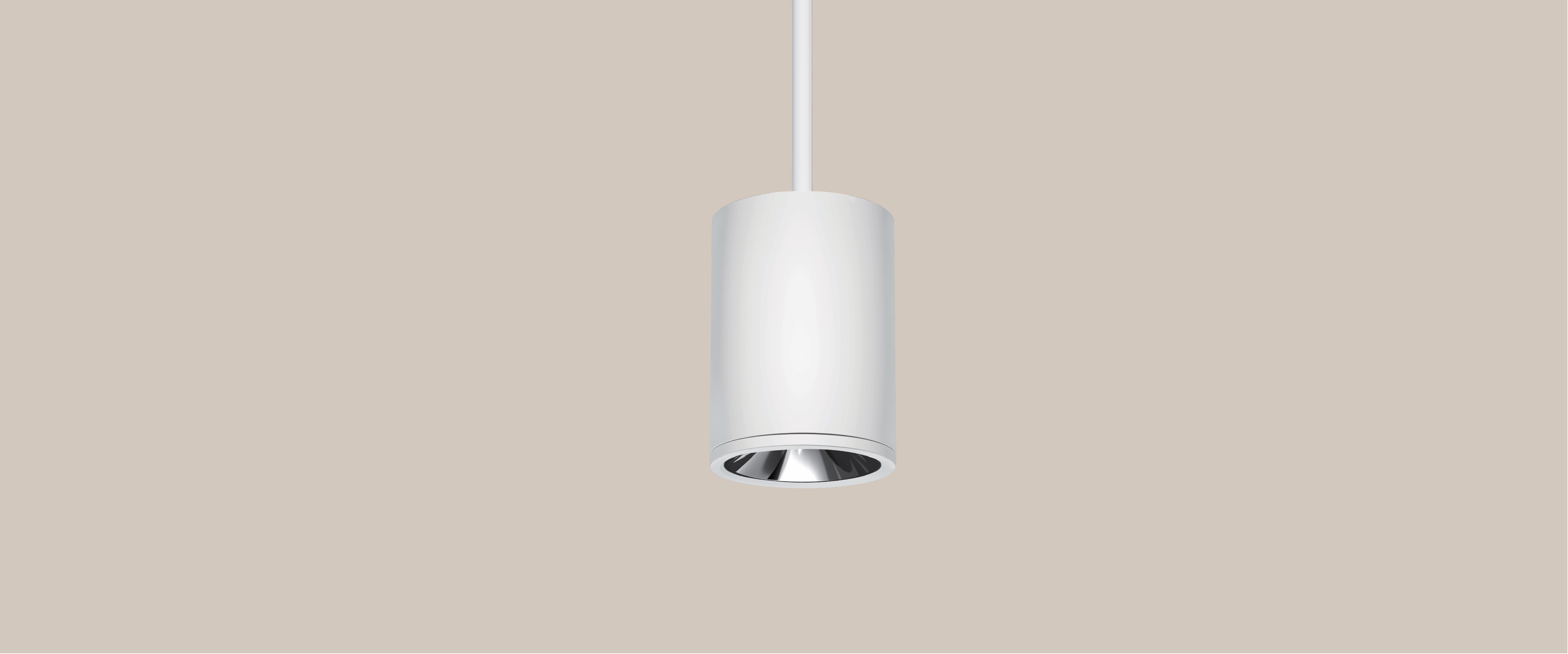

POYO 180

Pendant Downlight

POYO 180

Looking forward to being shining like the jade is waiting for carving

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

Lighting Effects

Products Specification:: Type:Suspended Downlight; Beam Angle:50W 60W 70W; Power:30° 40° 50° 60°; Weight:4.1kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

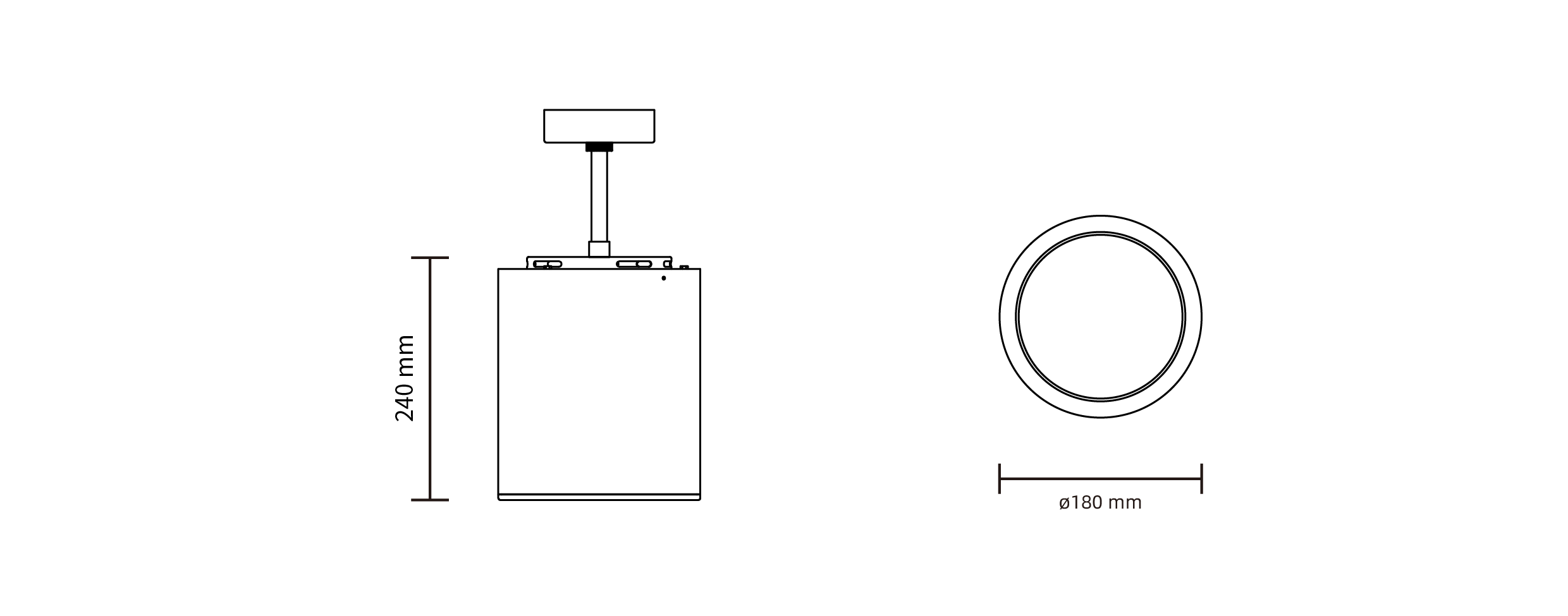

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
50W
60W
70W

Beam Angle

Beam Angle
30°
45°
60°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Control

Control

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming

Finish

Finish
Outdoor white
Outdoor grey
Outdoor black

Reflector

Reflector
Mirror

IP Rating

IP Rating
65-IP65

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: DP00806-50309027; DP00806-50309030; DP00806-50309040; DP00806-50459027; DP00806-50459030; DP00806-50459040; DP00806-50609027; DP00806-50609030; DP00806-50609040; DP00806-60309027; DP00806-60309030; DP00806-60309040; DP00806-60459027; DP00806-60459030; DP00806-60459040; DP00806-60609027; DP00806-60609030; DP00806-60609040; DP00806-70309027; DP00806-70309030; DP00806-70309040; DP00806-70459027; DP00806-70459030; DP00806-70459040; DP00806-70609027; DP00806-70609030; DP00806-70609040

Luminous Flux (LM): 3728LM; 3924LM; 4222LM; 3601LM; 3790LM; 4075LM; 3612LM; 3802LM; 4129LM; 4169LM; 4389LM; 4818LM; 4052LM; 4266LM; 4638LM; 4119LM; 4336LM; 4755LM; 5039LM; 5305LM; 5827LM; 4897LM; 5155LM; 5570LM; 4918LM; 5177LM; 5630LM

Power (W): 50W; 50W; 50W; 50W; 50W; 50W; 50W; 50W; 50W; 60W; 60W; 60W; 60W; 60W; 60W; 60W; 60W; 60W; 70W; 70W; 70W; 70W; 70W; 70W; 70W; 70W; 70W

Beam Angle: 30°; 30°; 30°; 45°; 45°; 45°; 60°; 60°; 60°; 30°; 30°; 30°; 45°; 45°; 45°; 60°; 60°; 60°; 30°; 30°; 30°; 45°; 45°; 45°; 60°; 60°; 60°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
