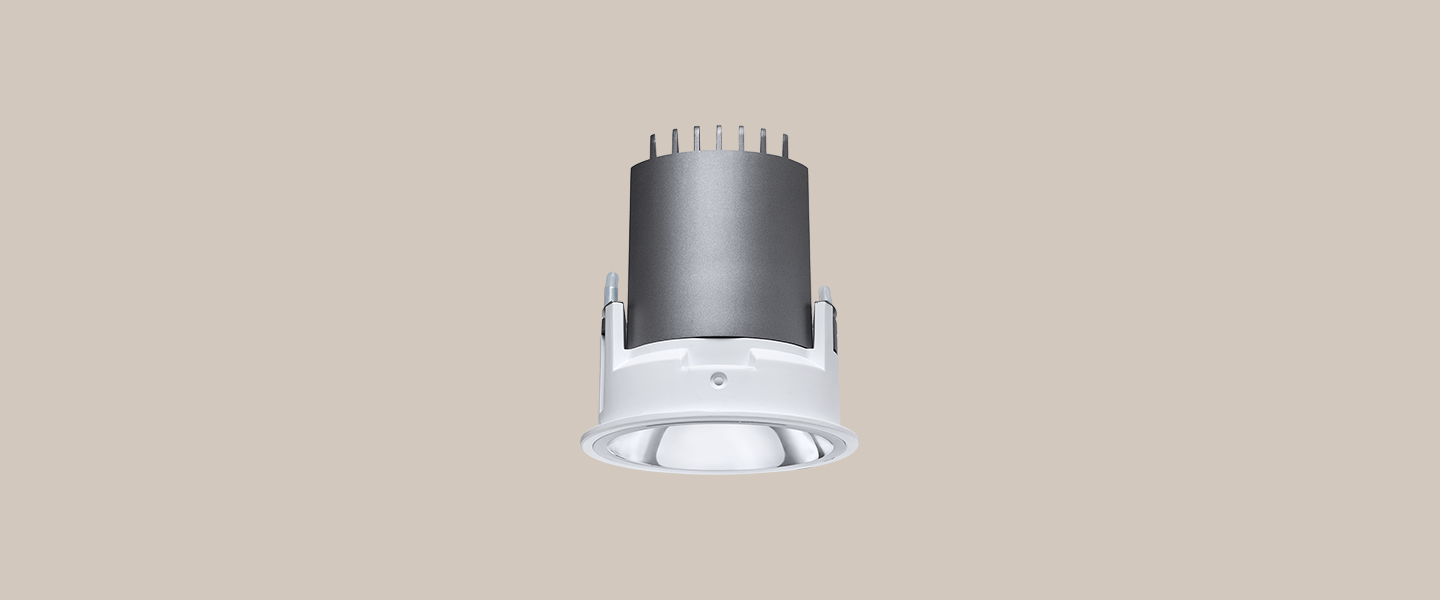

ALPS 100

Fixed Recessed Downlight

ALPS 100

Wisdom of european and chinese coopration.

As a part of space lighting, ambient lighting is a basic lighting, but the requirements are still very high. It need not only high efficiency and the comfortable low glare light, but also to achieve an even and soft high quality output of light under the circumstance of wide grading, which requests strictly to the integral design of lamps. Alps is a joint developed products between VF R&D team and European lighting experts, providing the best choice for ambient lighting.

The rapid installation screw of selfadaption to ceiling thickness protects the structure of ceiling and provides convenience for later maintenance. Alps has achieved good harmony and unity in terms of lamp efficiency, light quality, visual comfort, lighting installation and maintenance, and industrial design. It is a model for the new technology of basic lighting fixtures.

Lighting Effects

Products Specification:: Type:Fixed Recessed Downlight; Cut-Out:ø 100 mm; Beam Angle:15D 26D 36D 45D; Power:12W 15W 20W; CCT:2700K 3000K 4000K; Weight:1.15kg; Heat-Sink:Aluminum; Surface-Treatment:painting

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
12W
15W
20W

Beam Angle

Beam Angle
15°
26°
36°
45°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Control

Control

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
01-White
02-Black

Reflector

Reflector
Mirror
Black
White
Black chromium plating

IP Rating

IP Rating
65-IP65

Accessory

Accessory
1-Honeycomb louver
4-Linear lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: DR01126-12159027; DR01126-12159030; DR01126-12159040; DR01126-12269027; DR01126-12269030; DR01126-12269040; DR01126-12369027; DR01126-12369030; DR01126-12369040; DR01126-12459027; DR01126-12459030; DR01126-12459040; DR01126-15159027; DR01126-15159030; DR01126-15159040; DR01126-15269027; DR01126-15269030; DR01126-15269040; DR01126-15369027; DR01126-15369030; DR01126-15369040; DR01126-15459027; DR01126-15459030; DR01126-15459040; DR01126-20159027; DR01126-20159030; DR01126-20159040; DR01126-20269027; DR01126-20269030; DR01126-20269040; DR01126-20369027; DR01126-20369030; DR01126-20369040; DR01126-20459027; DR01126-20459030; DR01126-20459040

Luminous Flux (LM): 764LM; 804LM; 894LM; 1034LM; 1088LM; 1167LM; 1059LM; 1115LM; 1209LM; 1046LM; 1101LM; 1198LM; 887LM; 933LM; 1011LM; 1224LM; 1288LM; 1363LM; 1240LM; 1305LM; 1405LM; 1222LM; 1287LM; 1394LM; 1225LM; 1290LM; 1302LM; 1661LM; 1749LM; 1842LM; 1673LM; 1761LM; 1903LM; 1670LM; 1758LM; 1901LM

Power (W): 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W

Beam Angle: 15°; 15°; 15°; 26°; 26°; 26°; 36°; 36°; 36°; 45°; 45°; 45°; 15°; 15°; 15°; 26°; 26°; 26°; 36°; 36°; 36°; 45°; 45°; 45°; 15°; 15°; 15°; 26°; 26°; 26°; 36°; 36°; 36°; 45°; 45°; 45°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
