POYO 180

Surface-mounted Downlight

POYO 180

Looking forward to being shining like the jade is waiting for carving

POYO 180

Looking forward to being shining like the jade is waiting for carving

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

Lighting Effects

Products Specification:: Type:Surface-mounted Downlight; Beam Angle:50W 60W 70W; Power:30° 40° 50° 60°; Weight:4.1kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

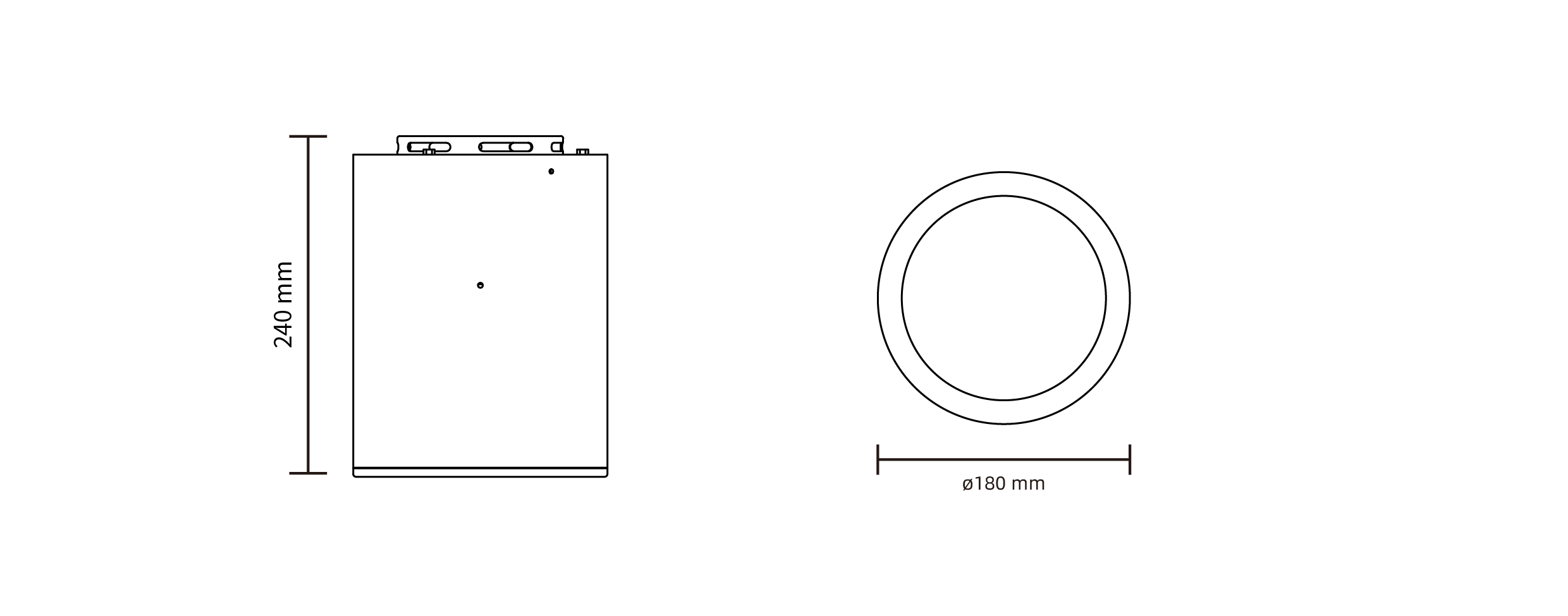

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
50W
60W
70W

Beam Angle

Beam Angle
30°
45°
60°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Control

Control

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming

Finish

Finish
Outdoor white
Outdoor grey
Outdoor black

Reflector

Reflector
Black chromium plating

IP Rating

IP Rating
65-IP65

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: DS00806-50309027; DS00806-50309030; DS00806-50309040; DS00806-50459027; DS00806-50459030; DS00806-50459040; DS00806-50609027; DS00806-50609030; DS00806-50609040; DS00806-60309027; DS00806-60309030; DS00806-60309040; DS00806-60459027; DS00806-60459030; DS00806-60459040; DS00806-60609027; DS00806-60609030; DS00806-60609040; DS00806-70309027; DS00806-70309030; DS00806-70309040; DS00806-70459027; DS00806-70459030; DS00806-70459040; DS00806-70609027; DS00806-70609030; DS00806-70609040

Luminous Flux (LM): 3728LM; 3924LM; 4222LM; 3601LM; 3790LM; 4075LM; 3612LM; 3802LM; 4129LM; 4169LM; 4389LM; 4818LM; 4052LM; 4266LM; 4638LM; 4119LM; 4336LM; 4755LM; 5039LM; 5305LM; 5827LM; 4897LM; 5155LM; 5570LM; 4918LM; 5177LM; 5630LM

Power (W): 50W; 50W; 50W; 50W; 50W; 50W; 50W; 50W; 50W; 60W; 60W; 60W; 60W; 60W; 60W; 60W; 60W; 60W; 70W; 70W; 70W; 70W; 70W; 70W; 70W; 70W; 70W

Beam Angle: 30°; 30°; 30°; 45°; 45°; 45°; 60°; 60°; 60°; 30°; 30°; 30°; 45°; 45°; 45°; 60°; 60°; 60°; 30°; 30°; 30°; 45°; 45°; 45°; 60°; 60°; 60°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
