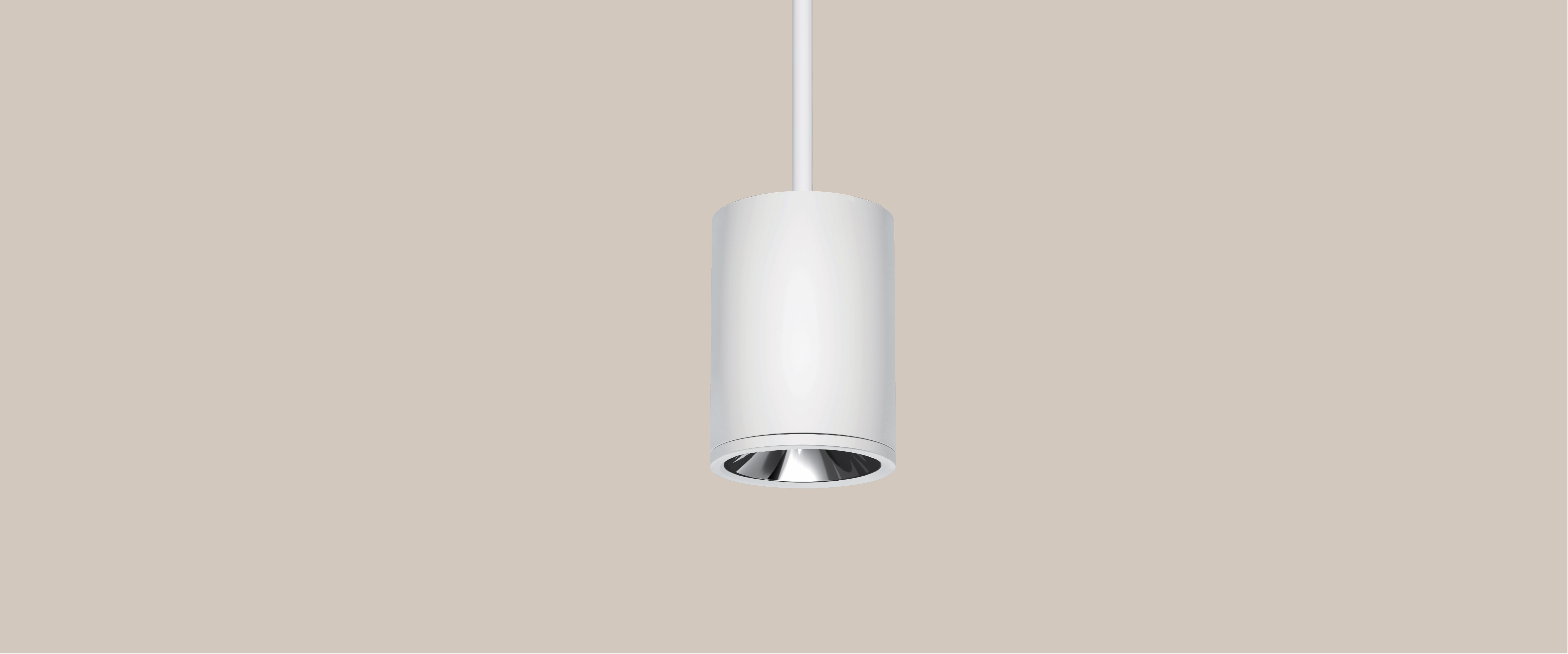

POYO 220

Pendant Downlight

POYO 220

Looking forward to being shining like the jade is waiting for carving

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

Lighting Effects

Products Specification:: Type:Suspended Downlight; Power:60W 70W 80W; Beam Angle:30° 35° 45° 55°; Weight:5.4kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
60W
70W
80W

Beam Angle

Beam Angle
30°
35°
45°
55°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Control

Control

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming

Finish

Finish
White
Grey
Black

Reflector

Reflector
Mirror

IP Rating

IP Rating
65-IP65

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: DP00807-60309027; DP00807-60309030; DP00807-60309040; DP00807-60359027; DP00807-60359030; DP00807-60359040; DP00807-60459027; DP00807-60459030; DP00807-60459040; DP00807-60559027; DP00807-60559030; DP00807-60559040; DP00807-70309027; DP00807-70309030; DP00807-70309040; DP00807-70359027; DP00807-70359030; DP00807-70359040; DP00807-70459027; DP00807-70459030; DP00807-70459040; DP00807-70559027; DP00807-70559030; DP00807-70559040; DP00807-90309027; DP00807-90309030; DP00807-90309040; DP00807-80359027; DP00807-80359030; DP00807-80359040; DP00807-80459027; DP00807-80459030; DP00807-80459040; DP00807-80559027; DP00807-80559030; DP00807-80559040

Luminous Flux (LM): 4025LM; 4237LM; 4858LM; 4525LM; 4763LM; 5443LM; 4537LM; 4776LM; 5379LM; 4414LM; 4646LM; 5279LM; 4524LM; 4762LM; 5579LM; 5010LM; 5274LM; 6091LM; 5067LM; 5334LM; 6141LM; 4996LM; 5259LM; 6153LM; 5058LM; 5324LM; 6040LM; 5469LM; 5757LM; 6742LM; 5483LM; 5772LM; 6796LM; 5516LM; 5807LM; 6718LM

Power (W): 60W; 60W; 60W; 60W; 60W; 60W; 60W; 60W; 60W; 60W; 60W; 60W; 70W; 70W; 70W; 70W; 70W; 70W; 70W; 70W; 70W; 70W; 70W; 70W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W; 80W

Beam Angle: 30°; 30°; 30°; 35°; 35°; 35°; 45°; 45°; 45°; 55°; 55°; 55°; 30°; 30°; 30°; 35°; 35°; 35°; 45°; 45°; 45°; 55°; 55°; 55°; 30°; 30°; 30°; 35°; 35°; 35°; 45°; 45°; 45°; 55°; 55°; 55°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
